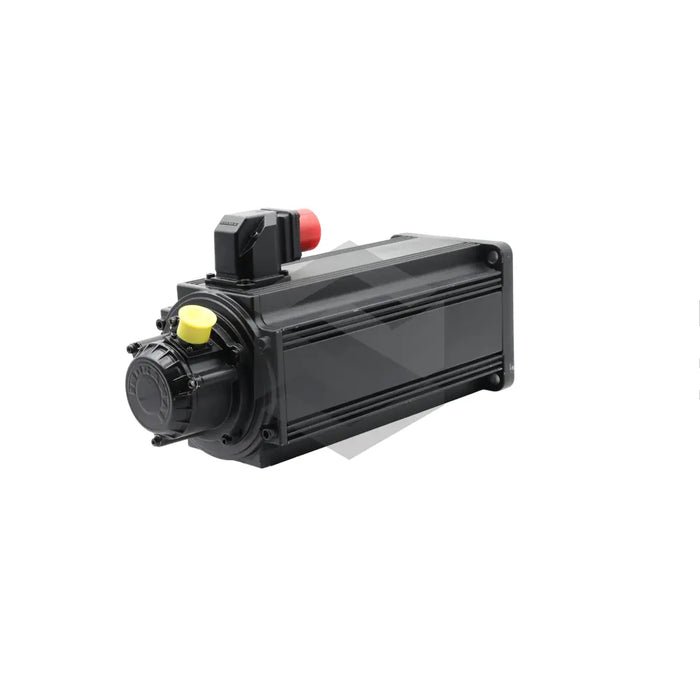

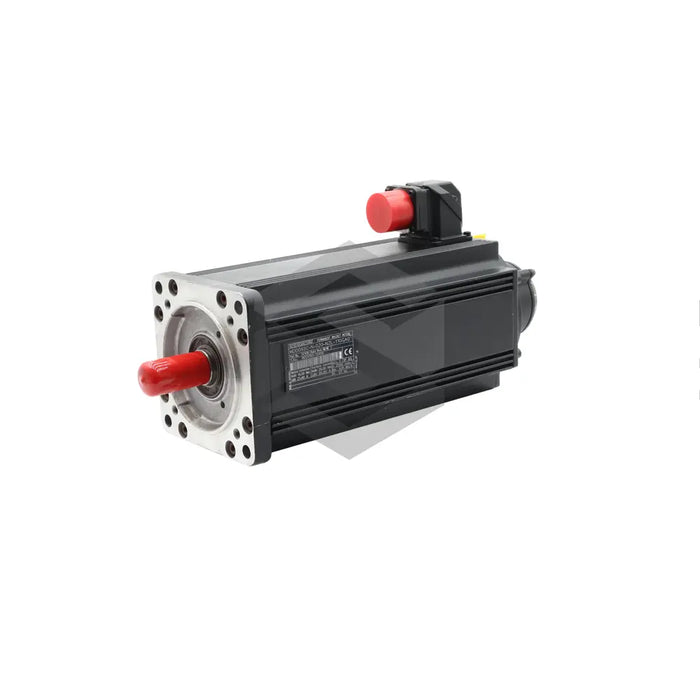

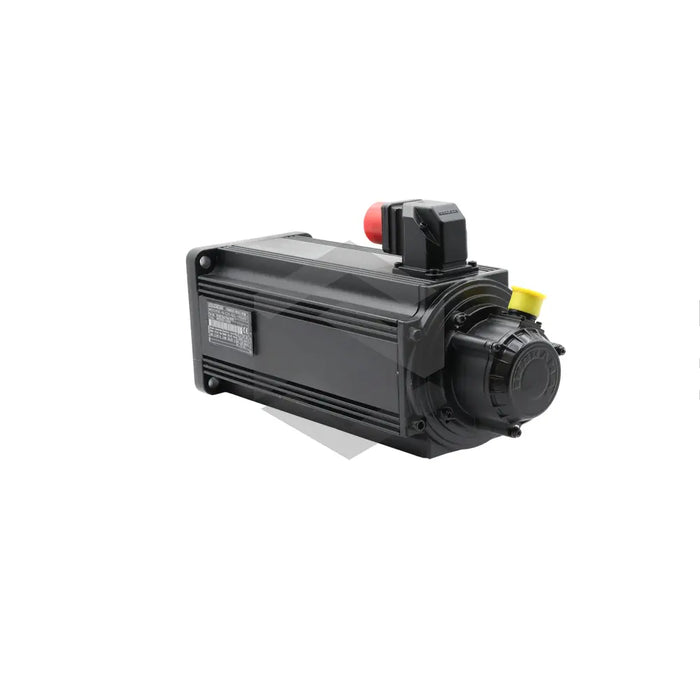

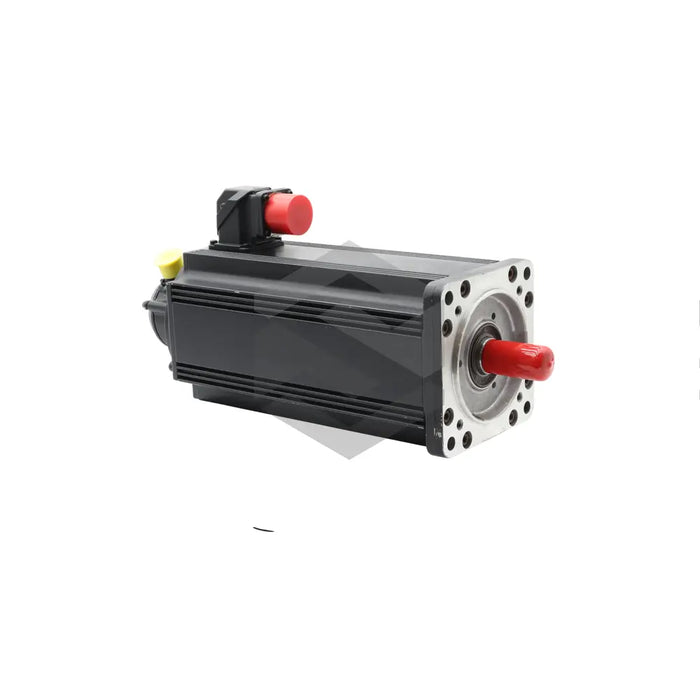

R911255064
The R911255064 (MDD093C-N-020-N2L-110GB1) is a technically advanced product produced by Bosch Rexroth Indramat, known for their expertise in high-quality industrial components. This includes AC servo motors, frequency converters, brake choppers, controllers, among other items, primarily utilized in the automation industry.
This model exhibits an output shaft and a sealing ring and is expected to be operated in agreement with the manual's specification. Its major features include a theoretical torque of 60.6 Nm at an optimum speed of 2000 revolutions per minute, with a maximum current utilization of 96.5 A. The MDD093C AC servo motor comes with the convenience of a 110-millimeter centering diameter, 40-micron black finish, and equipped windings with temperature sensors to prevent extreme heat and overloading. It is noteworthy that the installation and function of this product must be supervised by a trained specialist. Some of its key specs include a class F insulation, a torque constant of 0.91 Nm/A, and a minimum power connection wire of 0.75 mm2 on the housing's B side. This servo motor incorporates a holding brake weighing 0.5 kg and maintains compliance with IP 65 standards for dust and water resistance.
Given its specifications, the R911255064 (MDD093C-N-020-N2L-110GB1) operates at a constant torque of 19.5 Nm and a continuous current of 21.4 A during immobile functioning. The motor, weighing 22 kg, presents a winding inductance of 6.1 mH, balancing of class N, and a housing adaptable for natural and surface cooling. This uniquely designed model can be employed under diverse machine operative conditions, fitted with digital servo feedback and a thermal time constant of 50 minutes.
