R911255567

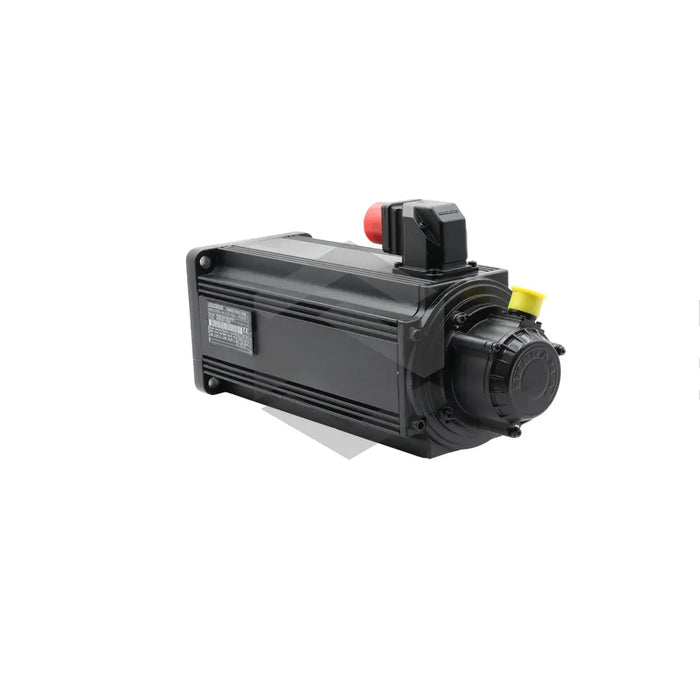

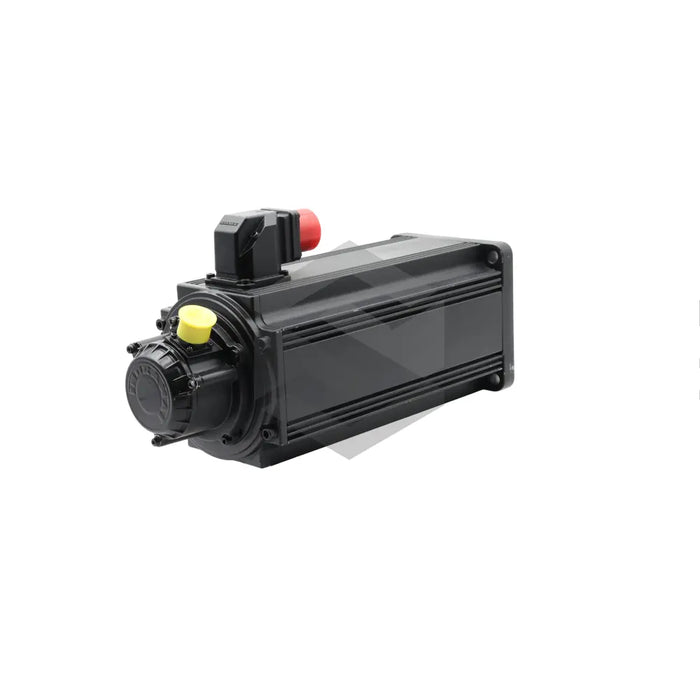

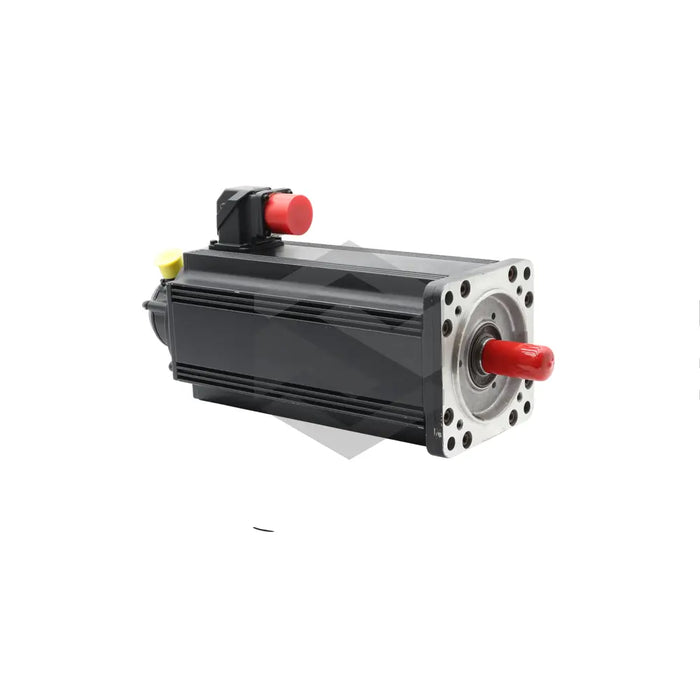

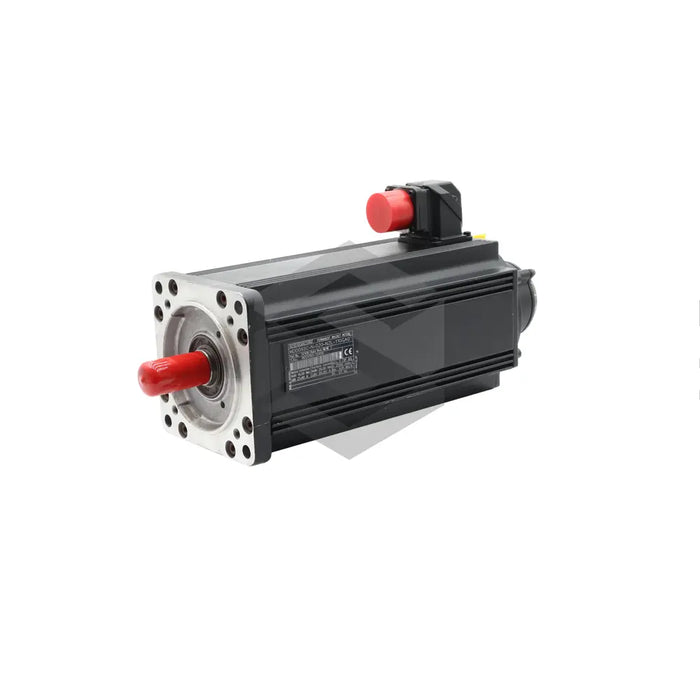

Bosch Rexroth Indramat's R911255567 (MDD093C-N-030-N2L-110PB1) is a high-powered, industrial-grade servo motor, perfectly suited for dynamic applications such as roller feeds for pressing, punching and tool changing devices. This motor, part of the MDD series, is designed for reliable, maintenance-free operation due to its brushless design and lifelong lubricated bearings. Features include an IP65 dustproof rating, a continuous torque of 19.5 Nm with natural convection, and 20.8 Nm with optional surface cooling. The motor can generate a theoretical maximum torque of 60.6 Nm, a peak current of 145 Amps, and has a rated speed of 3000 RPM.
The R911255567 (MDD093C-N-030-N2L-110PB1) also incorporates a powerful, electrically-activated blocking brake for stationary output shaft clamping and increased safety during power outages. The resilient standard motor housing can handle an ambient operational temperature range from 0 to 45 degrees Celsius. Compatibility with digital servo feedback is also included, making the motor perfectly suitable for systems that require precise control. The shaft B end is a standard design, and the keyway on the shaft is in compliance with DIN 6885-1, making the R911255567 (MDD093C-N-030-N2L-110PB1) motor versatile and highly advantageous for diverse industrial applications.
