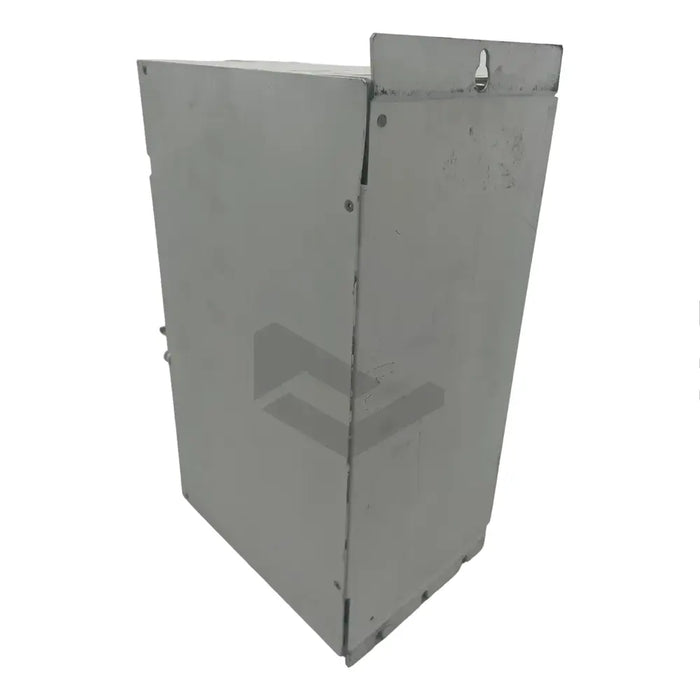

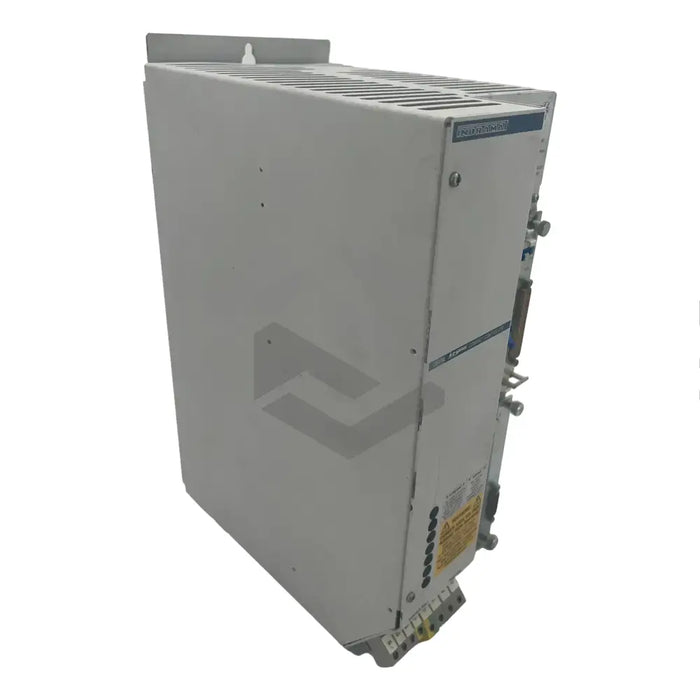

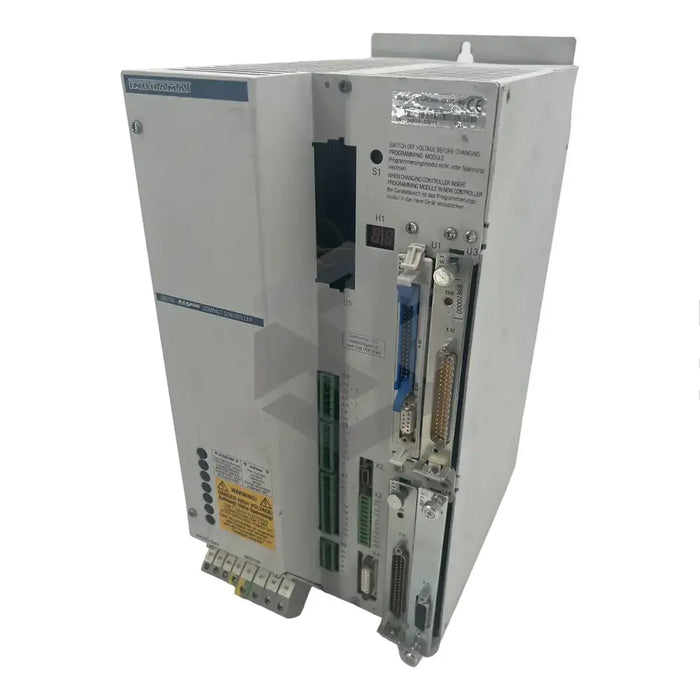

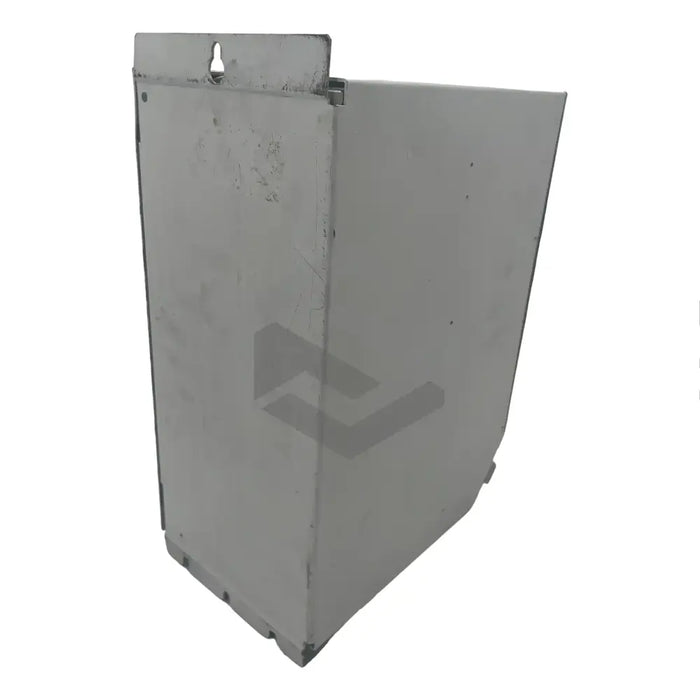

R911256131
The R911256131 (DKS01.1-W030B-DL05-00), produced by Bosch Rexroth Indramat, is a sophisticated DSK Servo Drive. Created by Mannesmann Rexroth AG, when partnered with an MDD AC Servo Motor, it constitutes a robust drive system catering to the mechanical energy needs of diverse industrial practices. Its adaptability is further enhanced by the option to install a range of plug-in modules, enabling customization to suit specific applications.
This Servo drive operates via dual types of cable connections - electrical power cables and signal cables. It supports single-phase or 3-phase electrical connections, utilizing a 230 Volts input voltage. It comes with an intrinsic dynamic breaking mechanism, offering an effective response to electrical discrepancies. With a rated current of 30A, the drive requires a command interface card for operational control. Its signal cable is screw-connected for easy servicing. The holding brake control of the connected motor comes integrated into the unit. The drive's standardized weight is approximately 11 kilograms, operating at a continuous current of 15 Amperes but can surge to a peak of 30 Amperes. With a frequency bandwidth of 50-60 hertz and a PMW frequency of 18 kilohertz, the maximum load demands power of approximately 4.5 kilovolts-amperes. Set to function within an ambient temperature range of +5 to +45 degrees Celsius, this servo drive meets the IP 10 per DIN 40 050 protection class and C per DIN 570 110 insulation class standards.
