R911256377

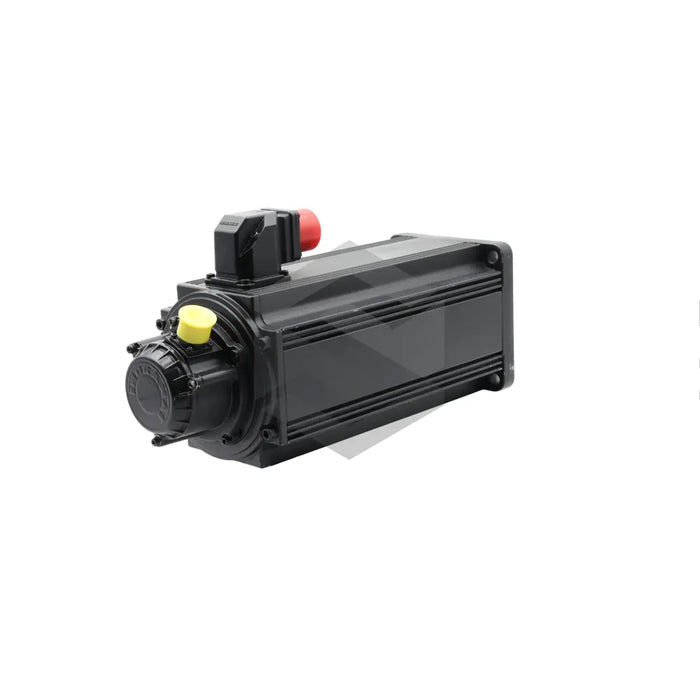

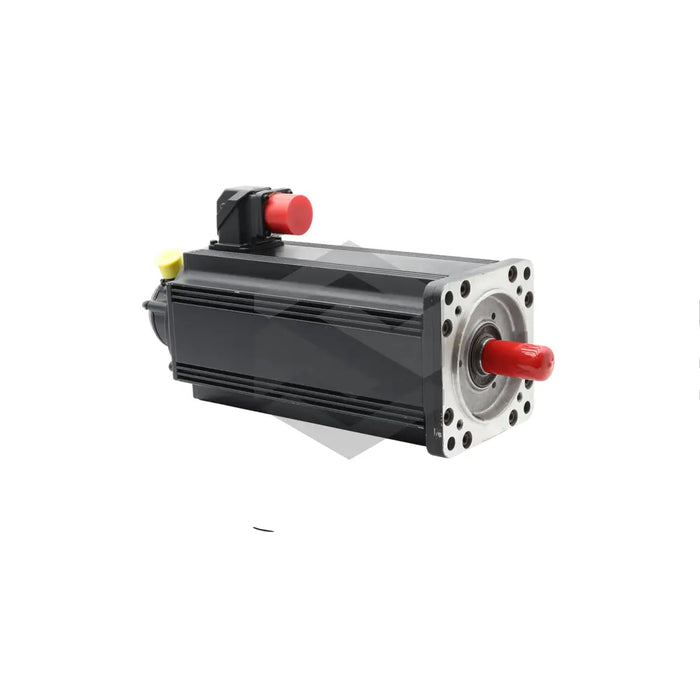

The Bosch Rexroth Indramat R911256377 (MDD093C-N-030-N2L-110GR0) is a sophisticated servo motor comprised of a laminated core with durable permanent magnets, windings, a rotor shaft, and an encoder; an optional blocking brake can also be included. The use of robust rare-earth or iron oxide magnetic materials in the construction of the permanent magnets significantly reduces the motor's inertia. This motor is intrinsically designed for maintenance-free operation, with a sealed housing and connectors ensuring an IP65 protection rating. It is fortified with integrated temperature sensors to supervise the winding temperature while providing easy installation. The product can be mounted in any orientation facilitated by its versatile flange design.
The R911256377 (MDD093C-N-030-N2L-110GR0) motor's frame size is denoted as 093 with a frame length represented by the letter C. This standard-design motor has a nominal speed rating of 3,000 RPM and relies on either natural convection or surface cooling for heat dissipation. The motor comes with a plain output shaft and offers digital servo feedback, however, this model does not include a blocking brake. The power connection is situated on the right side, and the unit is rated for operation in an ambient temperature range of 0 to 45 degrees Celsius at elevation levels between 0 to 1000 meters. Additionally, the motor features insulation class F.
