R911257922

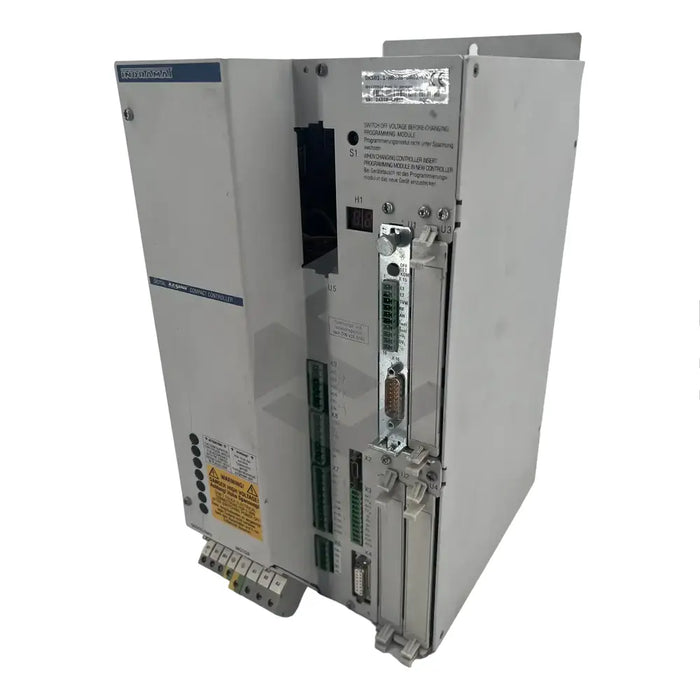

The R911257922 (DKS01.1-W030B-DA02-00) is a state-of-the-art digital servo drive by Bosch Rexroth Indramat which is operated via a microprocessor and boasts a brushless design. Equipped with two analog measurement outputs, it has a two-digit LED status display, labeled H1, which projects vital error and warning messages. The device can only operate if both the ZKS input and the AUS (Off) inputs are not engaged. It has a rated internal bus DC voltage of 300CDC and is highly adaptable, suitable for a variety of machines from woodworking to handling systems.
The servo drive's analog signals are transmitted through shielded cables, which are connected to the drive. It works optimally up to an ambient temperature of 55°C with adjusted data parameters, requires a dry, dust-free and vibration-less environment for storage, and should not be tipped or dropped. It's bottom has the motor power connection terminals, and its side has a label providing key information. The drive responds in a programmed manner during drive faults and works with either single or three-phase power supplies. With a peak current rating of 30A, a DA02-00 configuration code and the machine adaptable single-axis positioning card, the R911257922 (DKS01.1-W030B-DA02-00) can be shipped worldwide via couriers such as UPS or DHL.
