R911260464

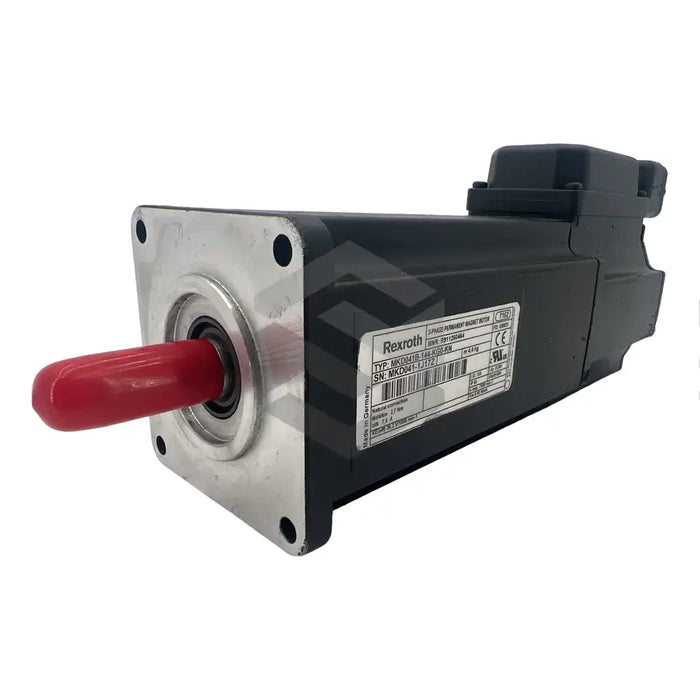

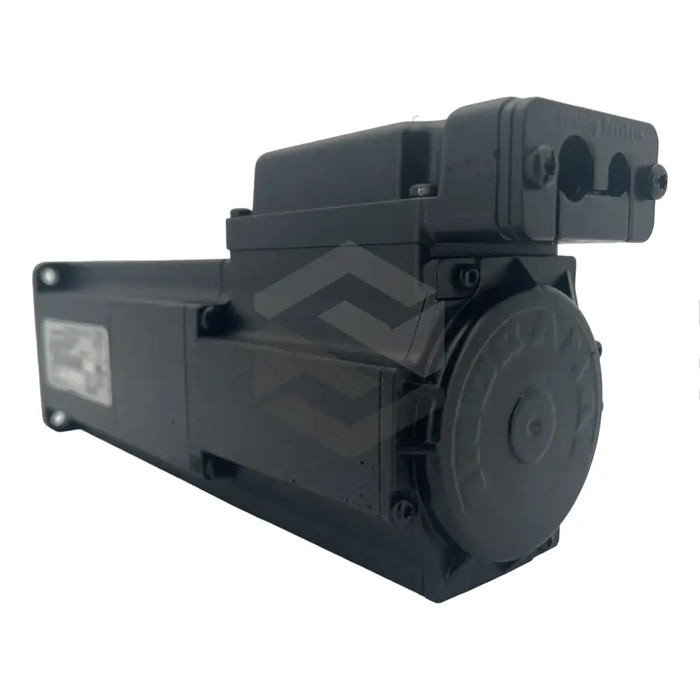

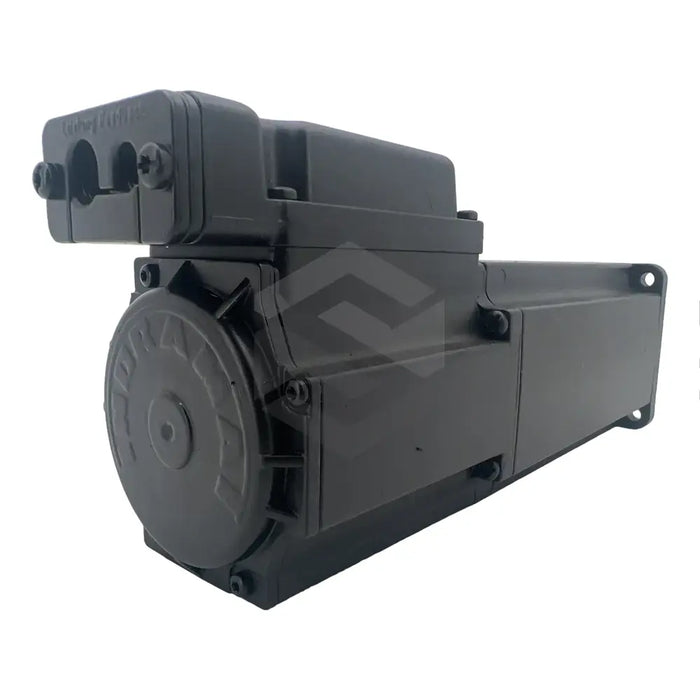

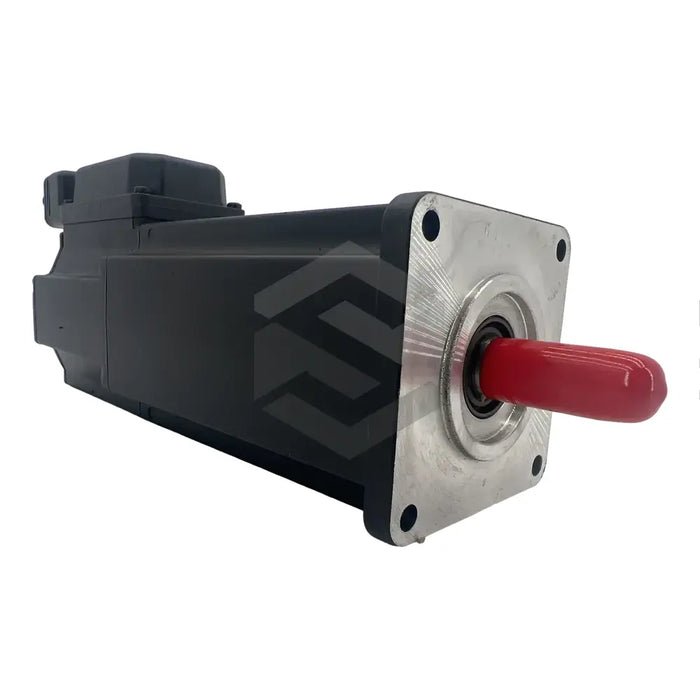

The R911260464 (MKD041B-144-KG0-KN) is a synchronous motor designed by Bosch Rexroth Indramat, under the coveted MKD series. It integrates seamlessly with digital drive controllers, thus creating a cost-effective system perfect for various processes such as machine tools and food processing. With an IP65 protection rating, class F insulation classification and a weight of 4.4kg, this motor is crafted to withstand diverse conditions. It operates optimally between 0 to 40 degrees and is storable between -20 to 80 degrees. Setting up can be done at a maximum height of 1000 meters above sea level.
This unit offers natural convection cooling and operates at a nominal speed of 6000min-1. With a peak current of 34A, a winding inductance of 5mH, and three pole pairs, the motor delivers rated data of speed 4500rpm, torque 1.5Nm, current 3A, power 0.88kW and voltage 170V. The resolver feedback comes with an integrated multiturn absolute encoder. Additional features include a plain shaft equipped with a sealing ring and a 144 winding code. Care should be taken while transporting and storing to prevent it from vibrations and dust. Cleaning of bearing and cooling ribs helps improve performance. This Bosch Rexroth synchronous motor complies with CE and is UL recognized.
