R911260508

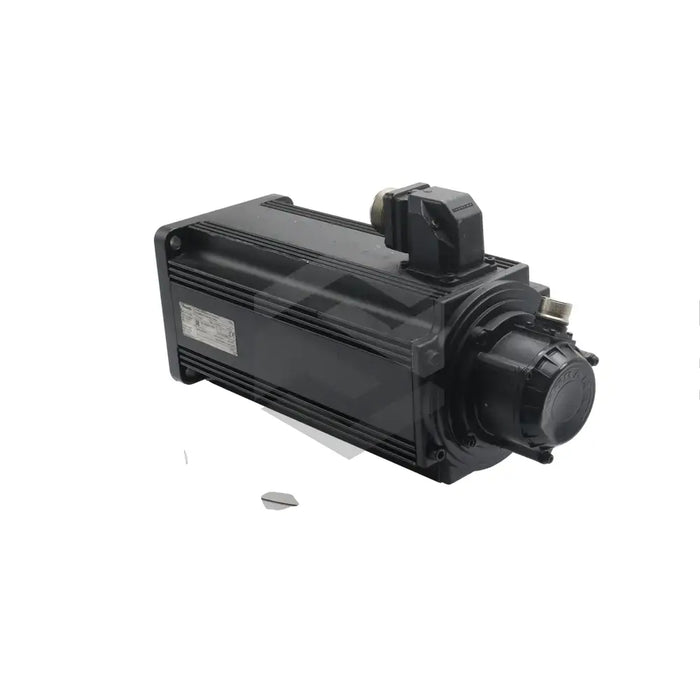

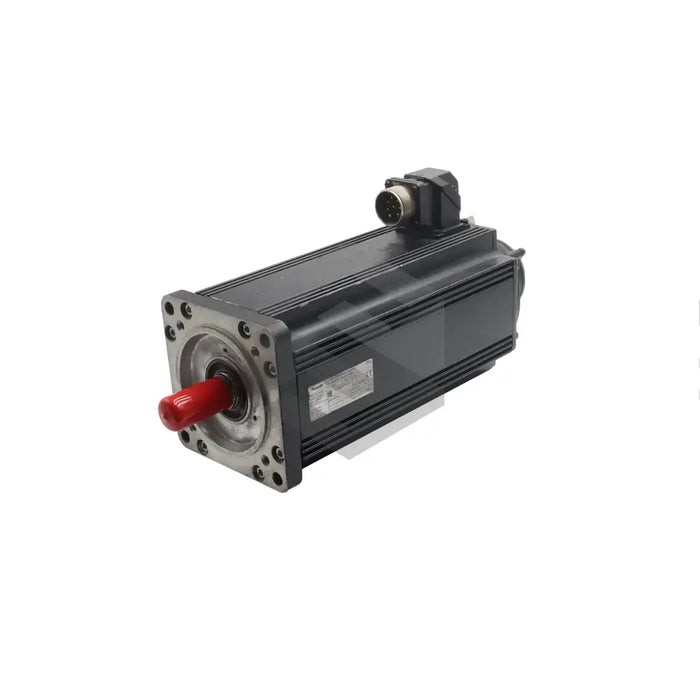

The R911260508 (MDD093C-N-030-N2M-110PA2), a product of Bosch Rexroth Indramat, is a high-power AC servo motor that leverages electronic commutation, and is particularly well suited for use with digital drive controllers. This compact machine has a permanent magnet and impressive power density, making it an ideal choice for packaging machines, robotics, transfer systems and handling equipment. Thanks to its standard housing, heat can easily be dissipated either by surface cooling or natural convection.
The motor boasts an efficient thermal time constant of 50 minutes and operates at a peak current of 145 Amperes at a nominal speed of 3000 RPM. The unit comes with a 22Nm-rated blocking brake which halts the axis safely when it is powered off. Notable features include a keyway output shaft and a digital servo feedback with an incorporated multiturn absolute encoder. With insulation class F and protection class IP 65, it provides high operational reliability. Appropriate for use in a temperature range of 0 to 45 degrees Celsius, it must be installed at a maximum height of 1000 meters. Its brushless design ensures easier maintenance and effective motor temperature monitoring.
