R911260575

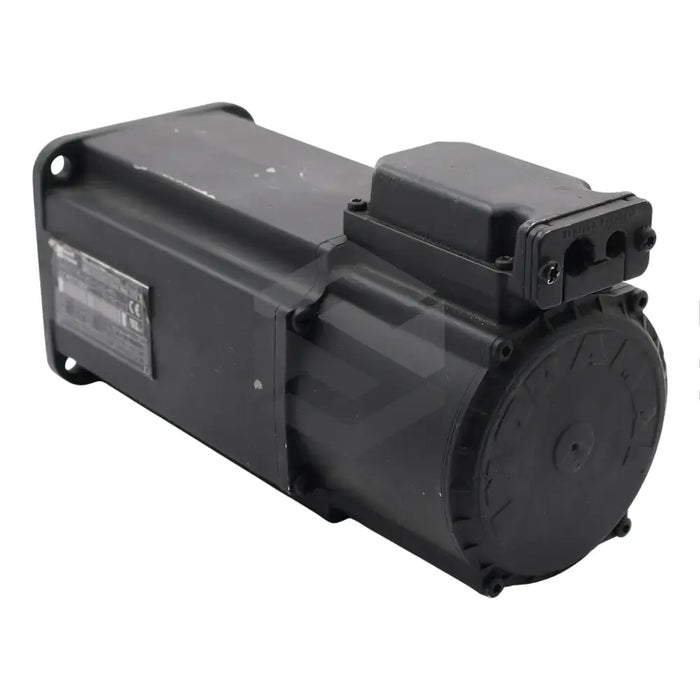

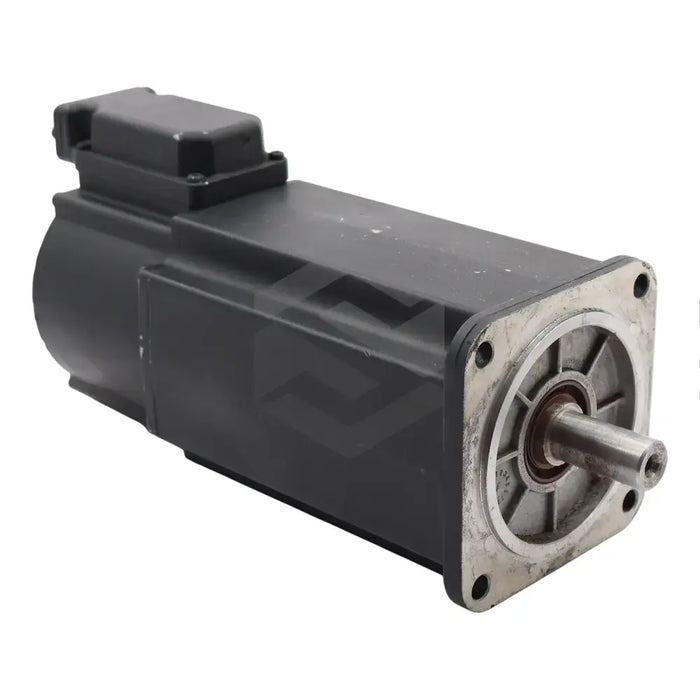

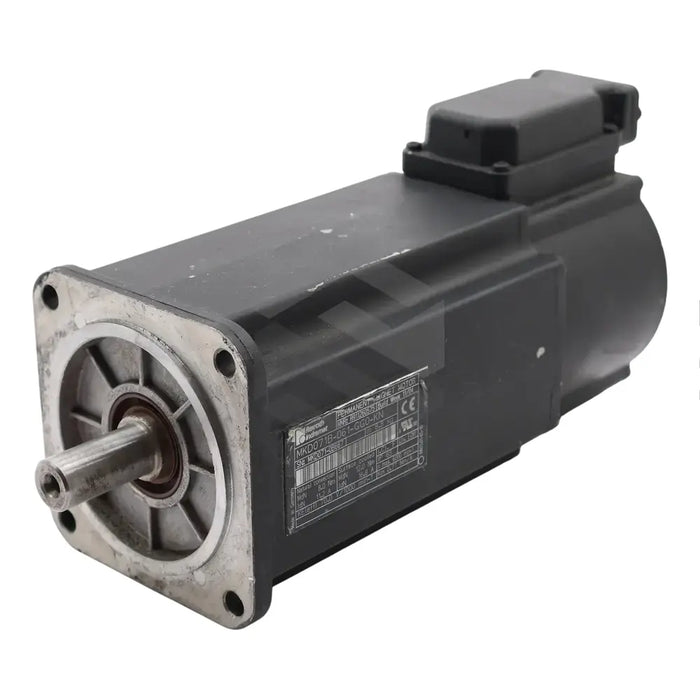

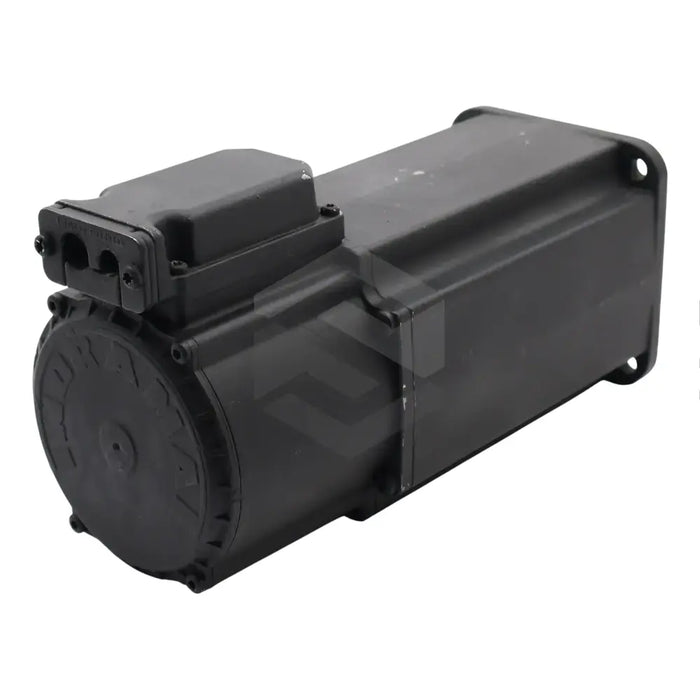

The Bosch Rexroth Indramat R911260575 (MKD071B-061-GG0-KN) belongs to the MKD Synchronous motors series known for delivering significant power in various industrial applications including printing, production, and packaging. These fully-sealed and maintenance-free motors offer an economic solution to meet your needs. The '71' in the part number indicates the motor size, which can vary from 025 to 112. The 'B' refers to the frame length, with options ranging from A to D.
Technically speaking, The R911260575 (MKD071B-061-GG0-KN) has a frequency rating of 333 Hz, dimensions of 115 x 115 x 304 mm, and weighs 8.8 kg. With a power rating of 3.4 kW and an output speed of 6000 rpm, this motor is highly effective. Additional specifications include a shaft diameter of 19k6 mm and an operating temperature range of 0-40°C. The supply voltage is 368V, it uses a roller bearing, and generates a torque of 5.3 Nm. The fully lubricated bearings contribute to its maintenance-free status implying that the motor can last up to an estimated 10 years. The modular construction allows for easy component replacement minimizing costly downtime often associated with servo motor failure.
