R911260588

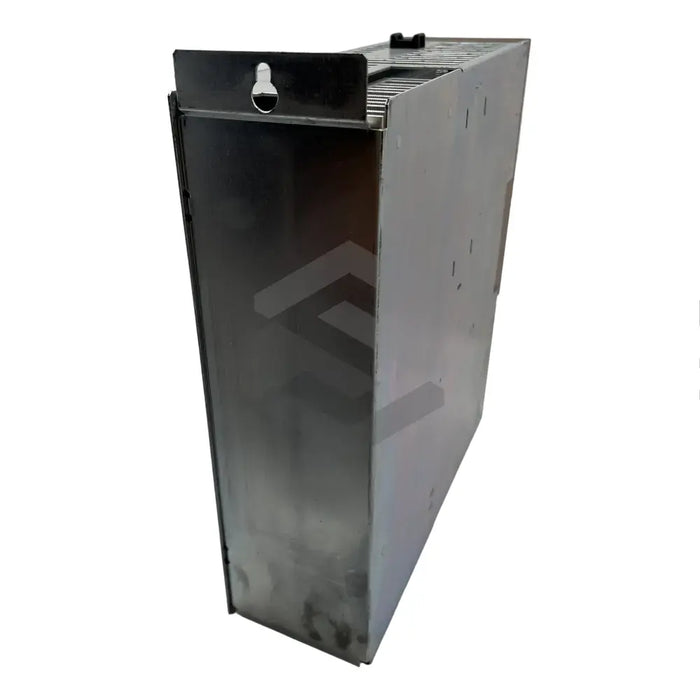

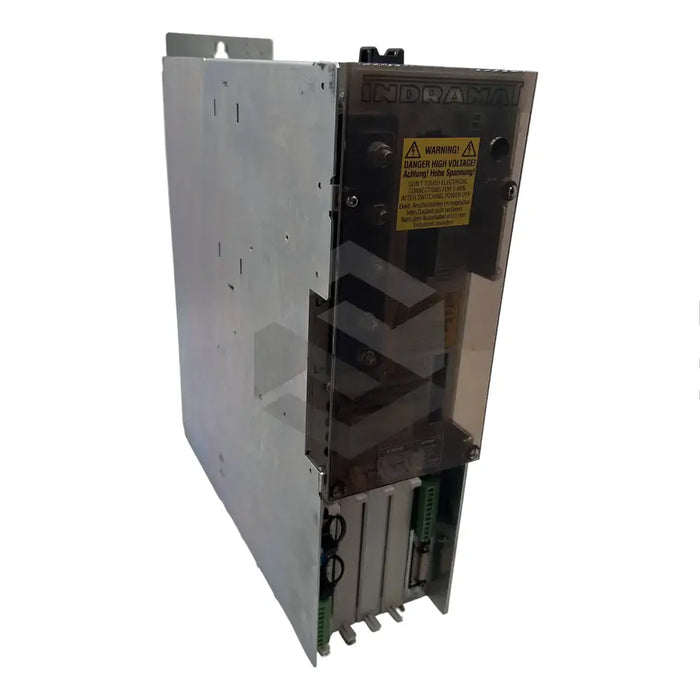

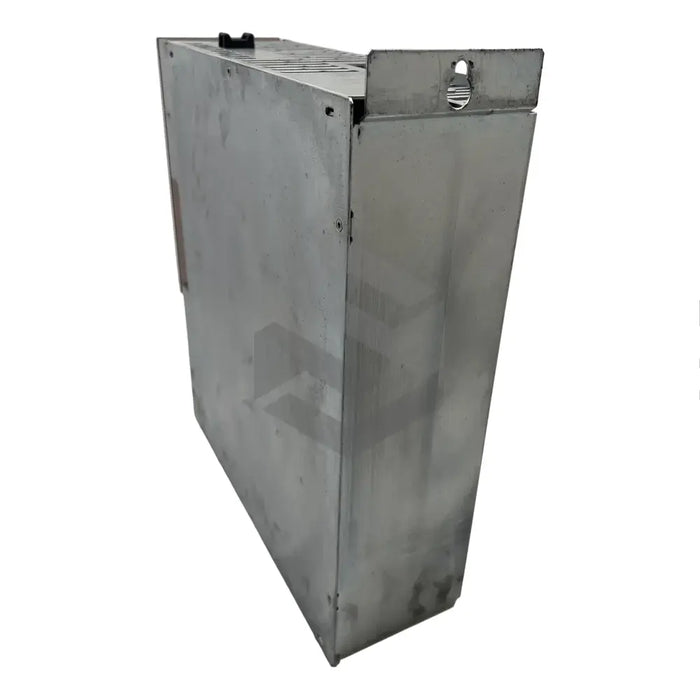

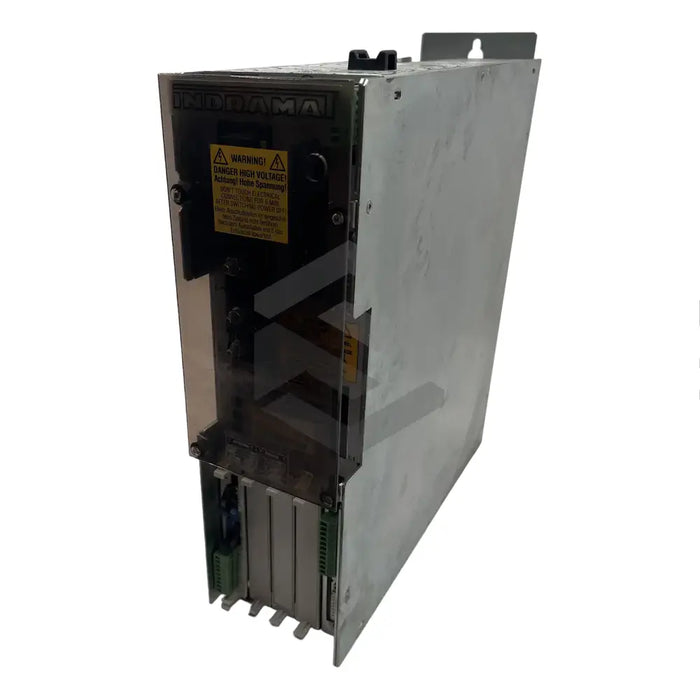

The Bosch Rexroth Indramat-manufactured R911260588 (DDS02.1-W200-DS01-01/S003) drive controller operates optimally at temperatures up to 55°C and is designed for installation in a control cabinet. The unit conveniently utilizes an alphanumeric status display for diagnostic use and has control buttons for resetting system memory and other initialization functions. This series 2 model is equipped with two outputs for oscilloscope connection and a SERCOS interface for diagnosing and addressing issues. Additionally, the device supports the closed-loop operating mode when the power source is in the ready-to-operate state. This particular drive controller works within a DC bus voltage range of 320VDC +/- 10%.
The controller further comes with additional plug-in slots for feedback inputs, one of which is already occupied by the SERCOS interface for signal communication. Each unit must be assigned a unique address between 1 and 99 as part of its configuration, which is stored in block data format. When the H1 display shows a -1 code, the controller should be replaced. The controller's configuration comprises a command communications module and a software module while extra plug-in modules can be added as needed. The DC link and motor power connections are at the X5 connection points. The unit's compatibility with associated motors is determined by multiple parameters. This type-designated product can be shipped globally.
