R911260845

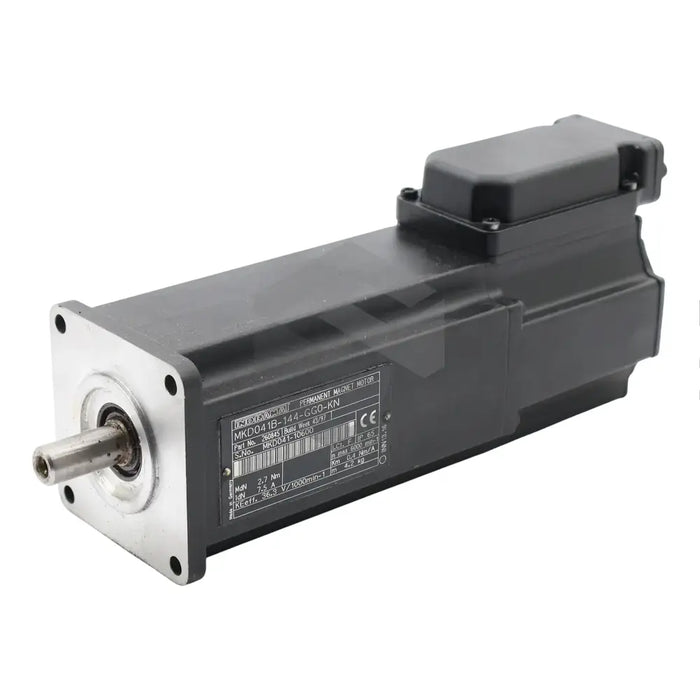

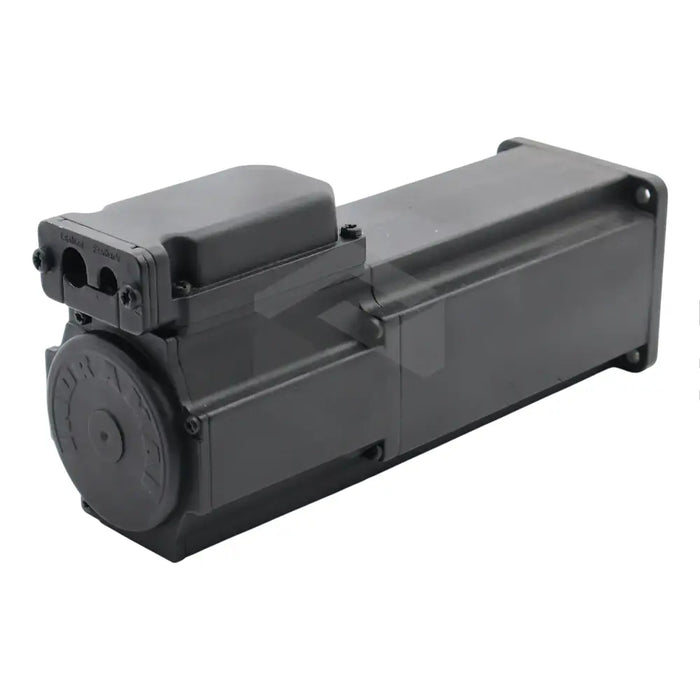

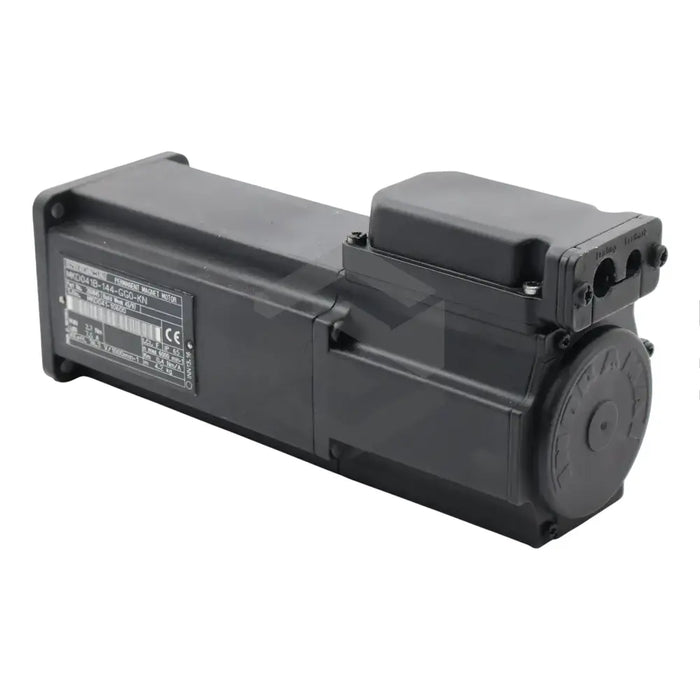

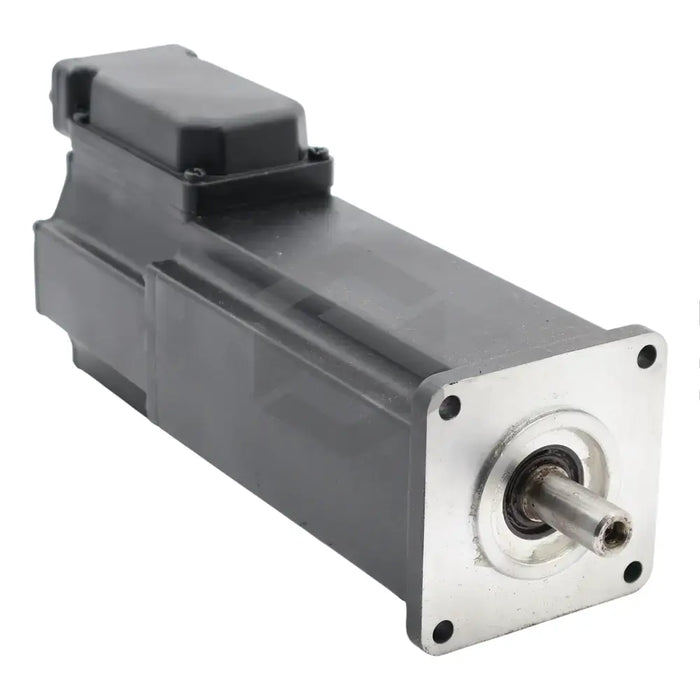

The R911260845 (MKD041B-144-GG0-KN) is a high-efficiency motor manufactured by Bosch Rexroth Indramat, a leading name in advanced engineering and manufacturing. The organization delivers automation solutions for various sectors, including hydraulics and the food industry. Understanding the R911260845 (MKD041B-144-GG0-KN)'s technical details allows for optimum performance and utilization.
This specific motor performs at its peak when utilizing a cooling method, either natural or surface-based. In terms of over-temperature, the R911260845 (MKD041B-144-GG0-KN) rates at 60K/100 for surface cooling, and between 60K-100K for natural cooling. When stationary, under natural cooling, its continuous torque rests within 2.7 Nm and 2.9Nm, while its continuous current ranges from 7.5 to 8.2A. The characteristic speed clocks at 6000 min-1 with a peak current of 34.0A. Meanwhile, the winding inductance measures 5Mh at a 20°C ambient temperature, featuring a winding resistance of 1.8 Ohms and a voltage constant of 36.3 V/1000min-1.
In terms of rated data parameters under natural cooling only, the R911260845 (MKD041B-144-GG0-KN) boasts a rated power between 0.52 and 0.88 KW, a rated torque from 1.4 to 1.5Nm, a voltage rating between 115V -170 V, and a rated speed ranging from 3000 to 4500 min-1. Additionally, it registers 2.8A to 3A of rated currency and a 150 to 225HZ rated frequency.
