R911261108

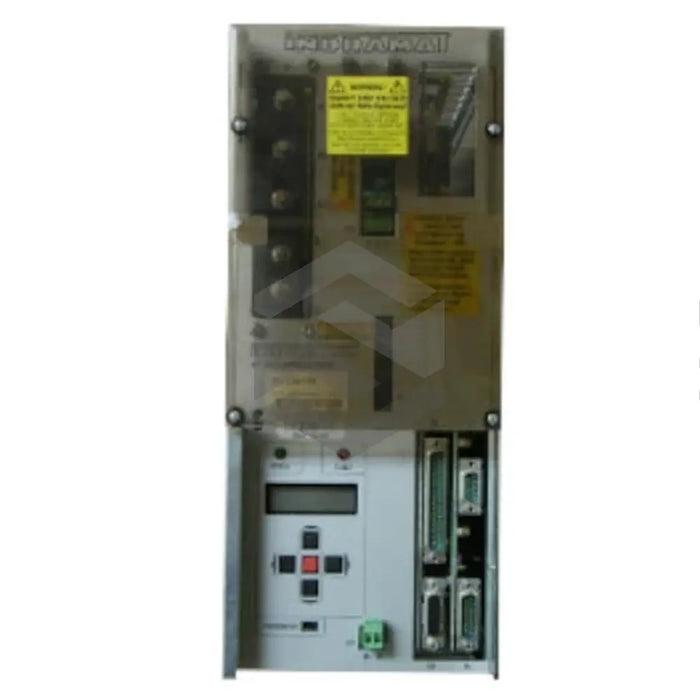

The Bosch Rexroth Indramat R911261108 (TDA 1.3-050-3-A00) is a top-tier drive control system specifically crafted for the meticulous regulation of speed, position, and torque of industrial motors. It is primarily used with 2AD and 1MB motors (asynchronous and frameless) and can be used to control motor's spindle for the main spindle function or for C-axis operations.
Essential to the R911261108 (TDA 1.3-050-3-A00)'s functionality is a high-resolution feedback device, which critically monitors and corrects the motor's parameters in real-time, ensuring no disparity between the programmed and actual values. This fine-tuning attribute allows precise control over speed and position. The R911261108 (TDA 1.3-050-3-A00) also features incremental encoder output for thread cutting by an NC controller in C-axis mode. With a user-friendly connection to a PC via a serial interface, crucial drive parameters can be conveniently saved and loaded. Its versatility is showcased through the ability to select up to 3600 different positions using a Programmable Logic Controller (PLC) and the potential for interfacing with various channels including SERCOS, digital speed command and an analog speed command. It is also compatible with most commercially available NC controllers with a 10V analog speed command interface. The R911261108 (TDA 1.3-050-3-A00) seamlessly integrates with the 2AD and 1MB motors produced by Bosch Rexroth.
