R911261578

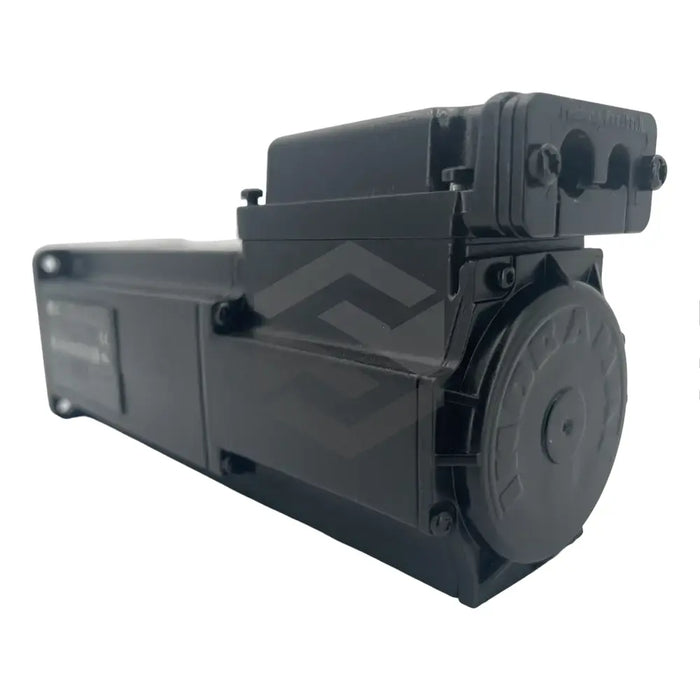

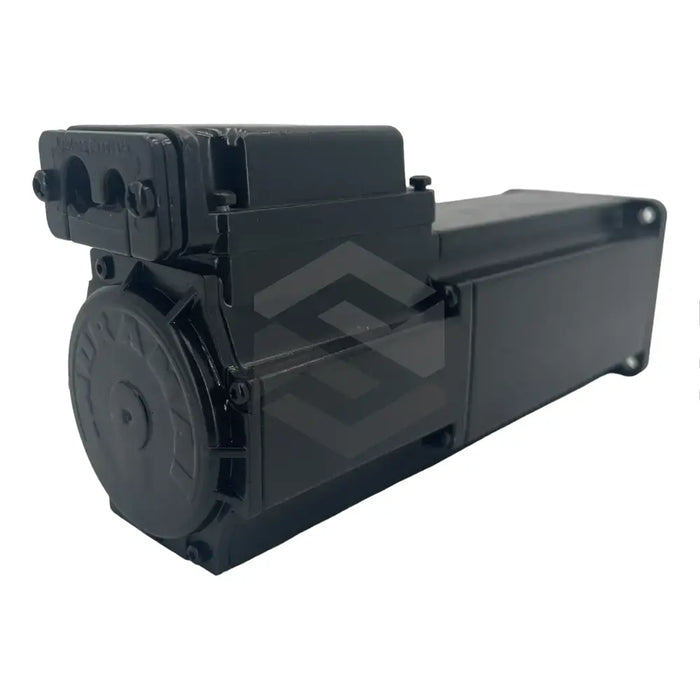

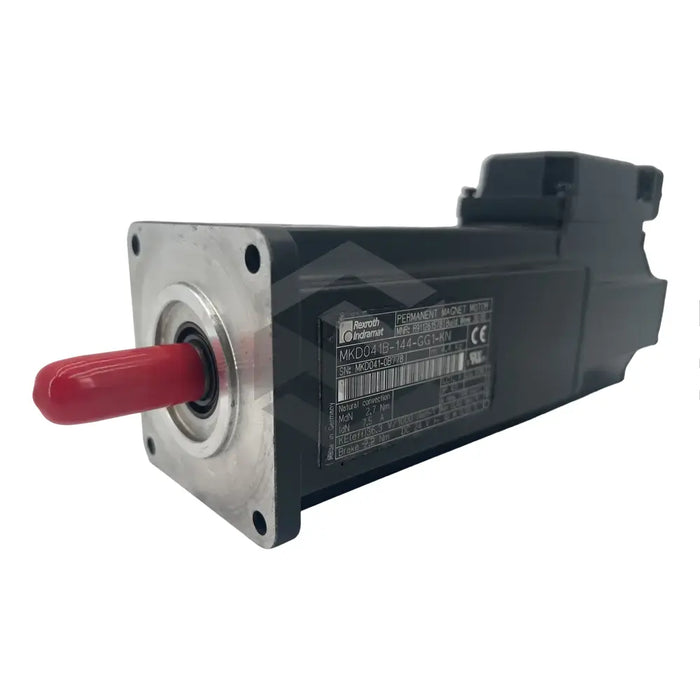

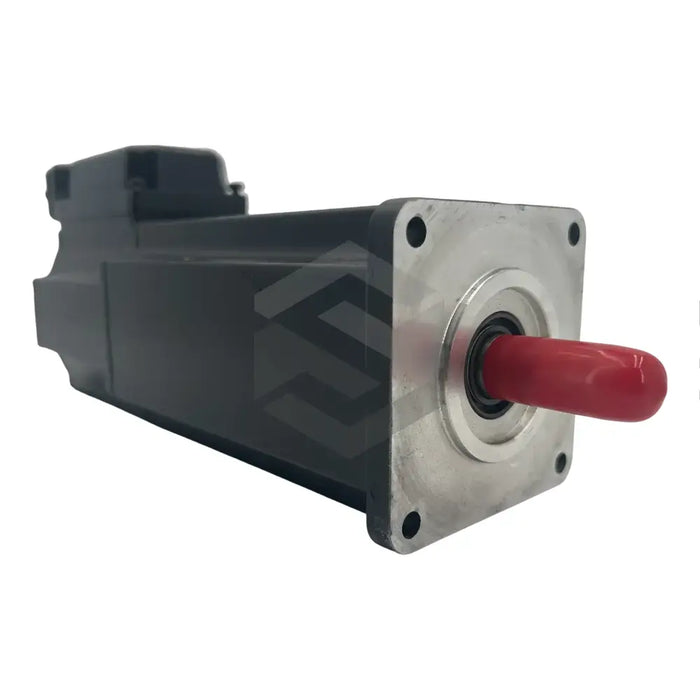

Produced by Bosch Rexroth Indramat, a highly esteemed engineering firm, the R911261578 (MKD041B-144-GG1-KN) motor is a robust automation component. With dynamic and integrated systems, this motor is aptly designed to function efficiently across various appliances and industries. Its rated data is solely applicable under natural cooling methods. The R911261578 (MKD041B-144-GG1-KN) offers a rated voltage between 115V - 170V and a frequency range of 150Hz - 225Hz. It operates optimally at a power rating of 0.52 - 0.88 KW and a rated current of 2.8 -3.0 A, with a rated torque of 1.4 - 1.5Nm and speed of 3000 Nm - 4500 Nm.
Mechanically, the R911261578 (MKD041B-144-GG1-KN) has a mass of 4.4kg and exhibits a maximum torque of 11.3Nm and a rotor inertia value of approximately 1.7 x 10-4 kgm² under both natural and surface cooling methods. When cooled naturally, the motor achieves a thermal time constant of 30 minutes with a speed of 7500 min-1 and strand minimum cross-section of 1mm2. The R911261578 (MKD041B-144-GG1-KN) should be stored and transported at temperatures between -20 to +80°C. Installation at heights over 1000 meters above NN reduces its performance efficiency. With an insulation class of F (in accordance with DIN VDE 0530 Part 1) and a protection category of IP65, the motor ensures safety when the encoder and power cables are correctly installed.
