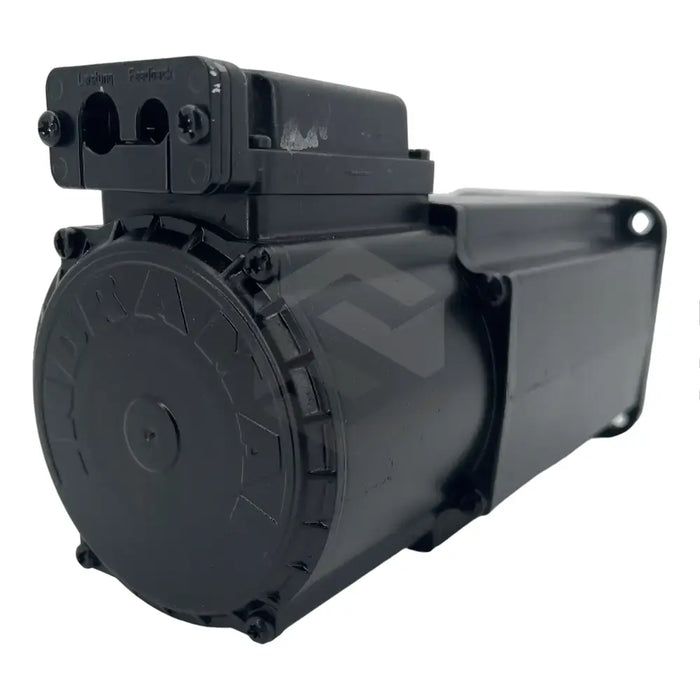

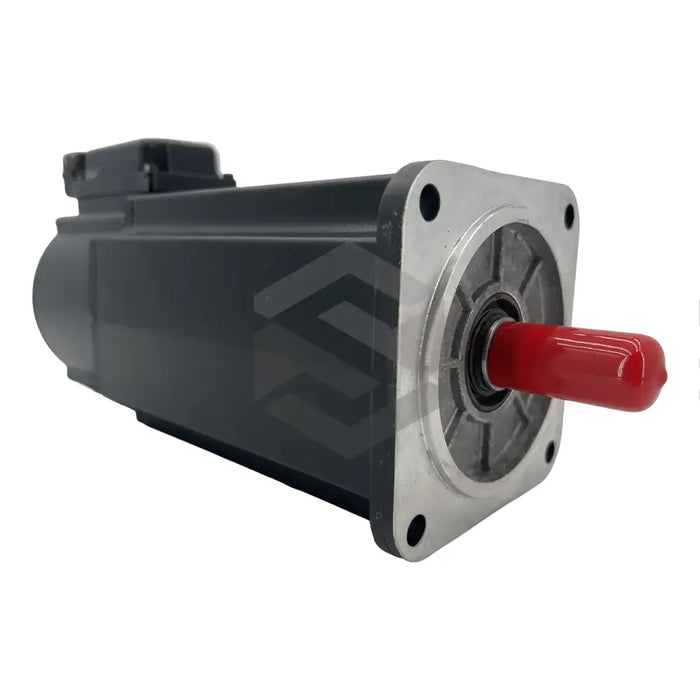

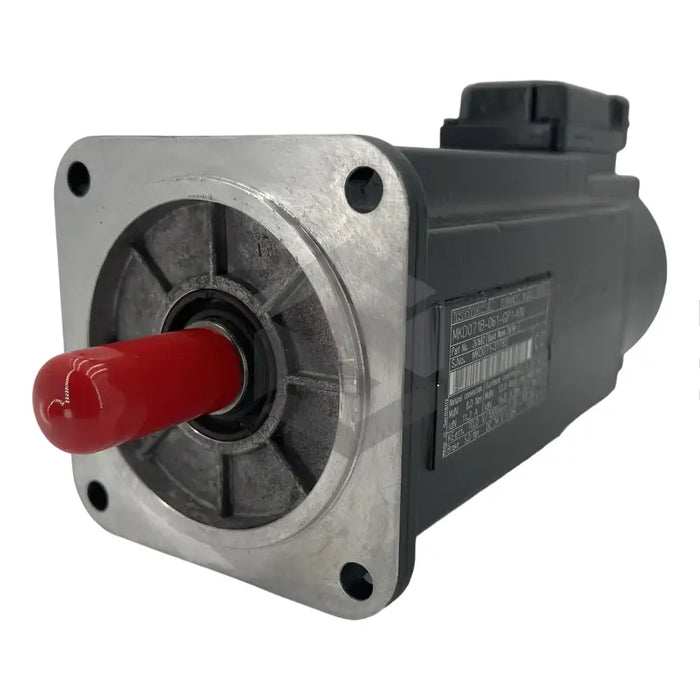

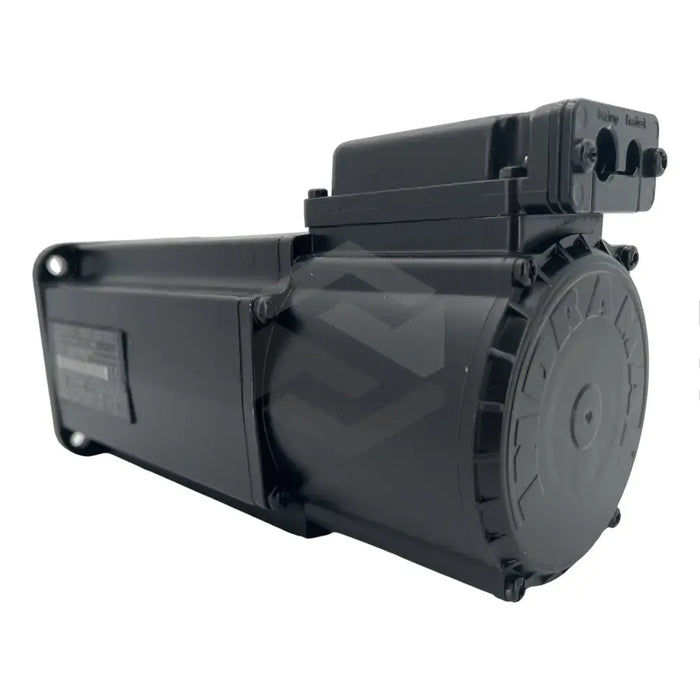

The Indramat R911261682 (MKD071B-061-GP1-KN) is a cutting-edge Digital AC Synchronous Brushless Servo Motor crafted by Bosch Rexroth Indramat. This MKD series motor expertly combines compact dimensions, standout energy efficiency, and robust dynamic capabilities. It is primarily developed for high-speed servo operations where precise positioning matters and promises reliable performance in applications such as robotics, CNC machines, automated manufacturing systems, and more. Furthermore, this motor ensures high contouring accuracy at elevated feed rates. With stall torque ratings ranging from 8 to 12 Nm and a rated speed range from 2000 to 4000 min-1, the R911261682 (MKD071B-061-GP1-KN) is enclosed in a design cooled naturally by air. Its Resolver Feedback makes it suitable for a broad spectrum of position and speed feedback applications. It features a standard housing with a 5 Nm holding brake and is coated with a black prime paint that is resistant to yellowing, weathering, and diluted acids. The motor size is 071, with a winding code of 061. The IP65 protection class safeguards against dust, shock, and jet water. Acceptable ambient temperature ranges from 0 to 45 degrees Celsius and it can be installed up to a height of 1000 meters above sea level.
30 Day Warranty
Technical Specifications
  • Maximum Setup Height: 1000 m above sea level
  • Housing Coating: Black Prime Resistant to Yellowing, Weathering, and Diluted Acids
  • Protection Class: IP65
  • Product Type: Digital AC Synchronous Brushless Servo Motor
  • Manufacturer: Bosch Rexroth Indramat
