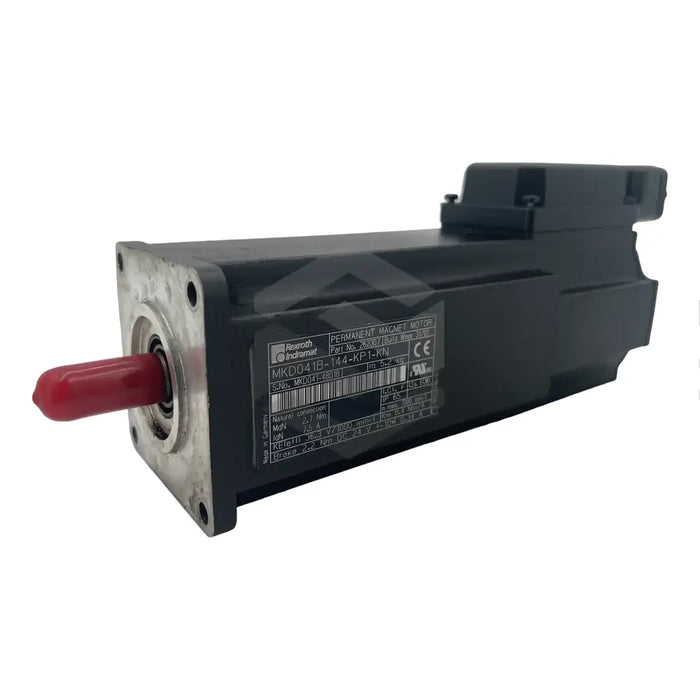

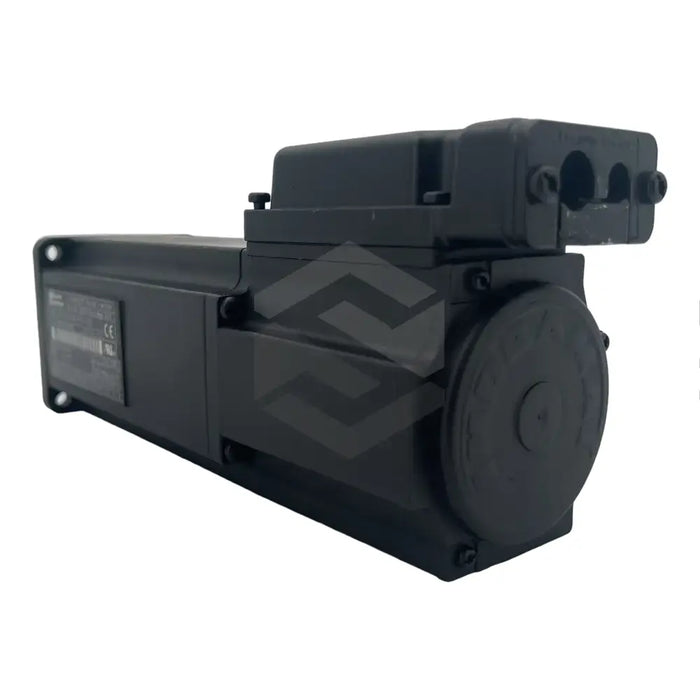

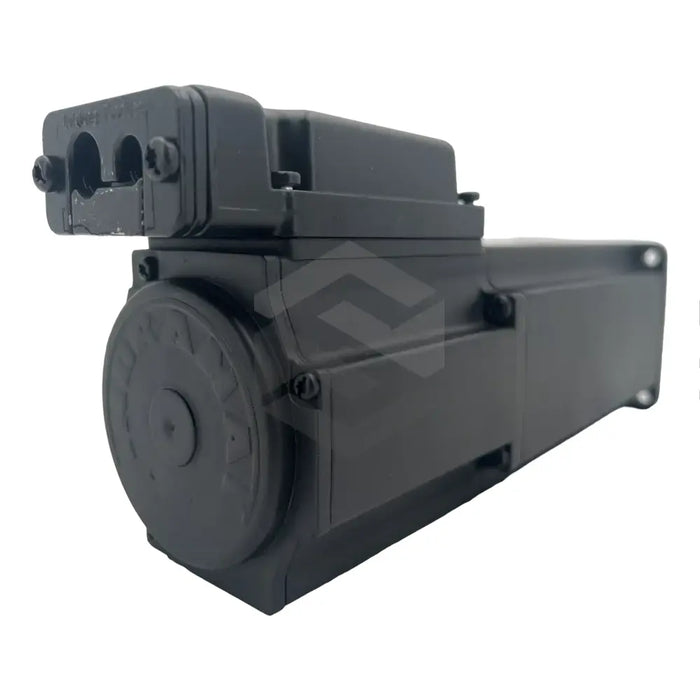

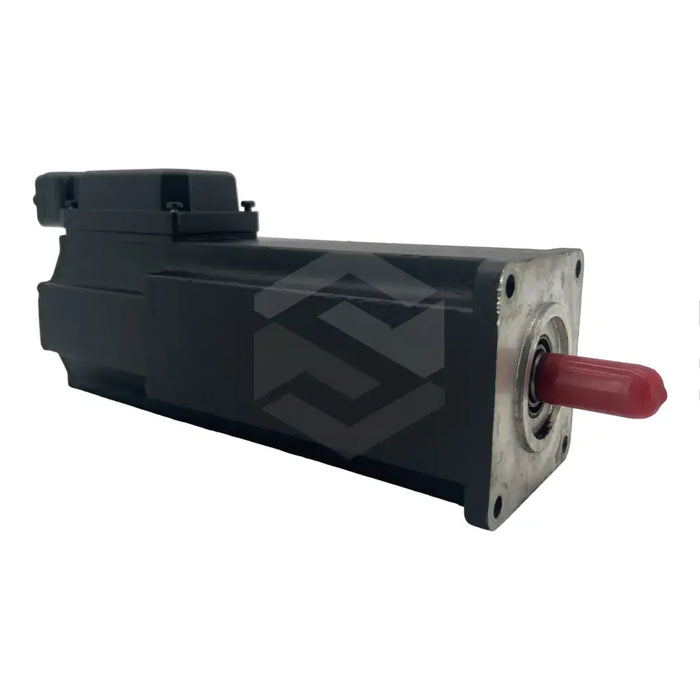

R911262307
The R911262307 (MKD041B-144-KP1-KN), part of the MKD-type AC servo-motor series from Bosch Rexroth Indramat, stands out for its enviable performance, striking speed dynamics, and unfailing reliability. It's specifically designed to operate flawlessly under the 041 motor size category, placing it amongst one of the smaller-scale MKD-type motors made by Rexroth Bosch Indramat.
This model boasts a flange size and a centering diameter measuring 82mm and 50mm respectively. It's capable of producing a continuous standing torque of up to 2.7Nm and has a rated torque of 1.4Nm. With a rated speed of 3000 min-1, it can reach an impressive maximum speed of 7500 min-1. Notably, the R911262307 (MKD041B-144-KP1-KN)'s rotor inertia of 1.7×10-4 Kgm2 can support a total load inertia of up to 1.7×10-3Kgm2, meeting the stringent 10:1 maximum inertia ratio guide. For increased accuracy and enhanced closed-loop control, this model utilizes a resolver feedback with an integrated multiturn absolute encoder. The standard housing design features a B-side terminal box for power and encoder cables, while the shaft comes with a pre-fitted Din 6885-1 standard keyway and a holding brake. Coupled with a mass of 4.63kg (including the holding brake which produces a 2.2Nm holding torque), the R911262307 (MKD041B-144-KP1-KN) is a perfect choice for low-speed, high torque operations.
