R911262962

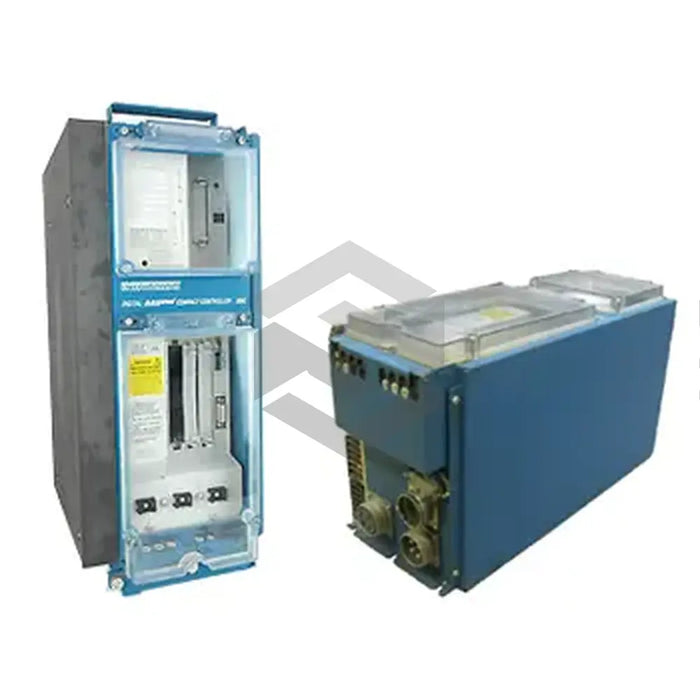

The R911262962 (DDC01.1-K100A-DG02-00) is a robust servo drive manufactured by the globally-renowned Bosch Rexroth Indramat, carrying the configuration designation DG02-00. Equipped with a mains contactor, this drive, when wired as per manufacturer’s instructions and E-stop sequence is closed, can be efficiently activated. The stand-out features include H1 and CTA display which shows “AF” and “drive enable” messages upon power-on. Additionally, the drive controller offers three unique responses to drive errors. However, certain error situations like overvoltage, overcurrent, hardware synchronization issues and motor encoder error can thwart the device from achieving a complete standstill, potentially causing machine damage.
The R911262962 (DDC01.1-K100A-DG02-00) servo drive is rated at an impressive 100A current capacity. Its built-in drive controller aids in motor holding brake regulation. The drive load can be evaluated by measuring the motor current during rapid acceleration and traverse. It’s crucial to set the weight counterbalance so as to maintain equal drive current in both directions. This unit includes a single-axis positioning module which signals drive enable in error-free conditions, whether in automatic or setup mode. To ensure efficacy, only manufacturer-approved cables should be used for connections. The connected motor affords a system accuracy to the range of +/-0.5 angular minutes. Notably, the U1 slot is reserved for the command interface card. With global dispatch via our established delivery network, it is designed for standard noise emission at the motor side.
