R911262965

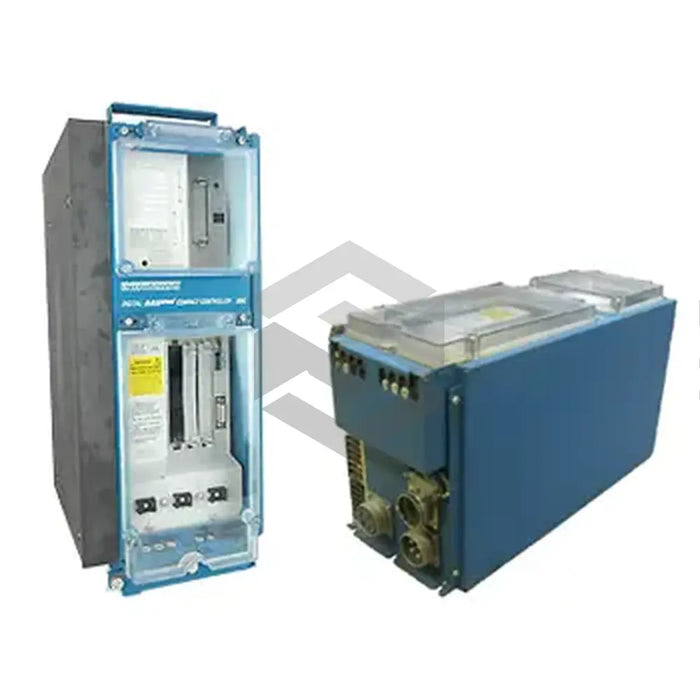

The R911262965 (DDC01.1-K050A-DG04-00) is a Bosch Rexroth Indramat product that utilizes a CTA programming display unit. This unit is responsible for inputting control parameters which are stored in the DLC card, safeguarded by a lithium battery with a lifespan of about ten years. The drive controller is designed to emulate a VT-100 terminal using specific software, which helps reproduce the user interface housed in the drive controller onto the PC screen. Parameters are incorporated into the drive controller with assistance from a variety of inputs like the motion manager and DDS2PC. These mechanisms help log, secure, write, and transmit CLC user programs and access user interface of the drive controller.
The R911262965 (DDC01.1-K050A-DG04-00) connects to either a PC or a VT100 terminal through an X2 connector via an IN 391 service cable. It is advised to ensure that these devices are not connected while they are in operation. To display the input parameters correctly, the PC should come equipped with systems such as an IBM, MS-DOS, RS-232 interface, disk drive, and emulation software for the VT-100 terminal. Furthermore, the product utilizes an Interface Switch Box ISB-3 for servicing and starting up the DLC Single-Axis Positioning Module that links to the DDC drive controller. This unit provides parameterization, diagnostic features, E-stop cutoff, system input control, and seven programmable inputs.
