R911263089

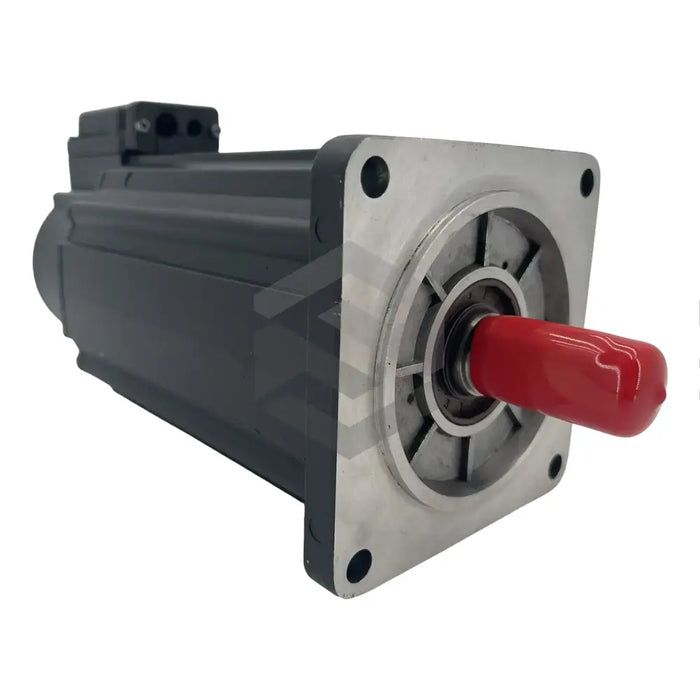

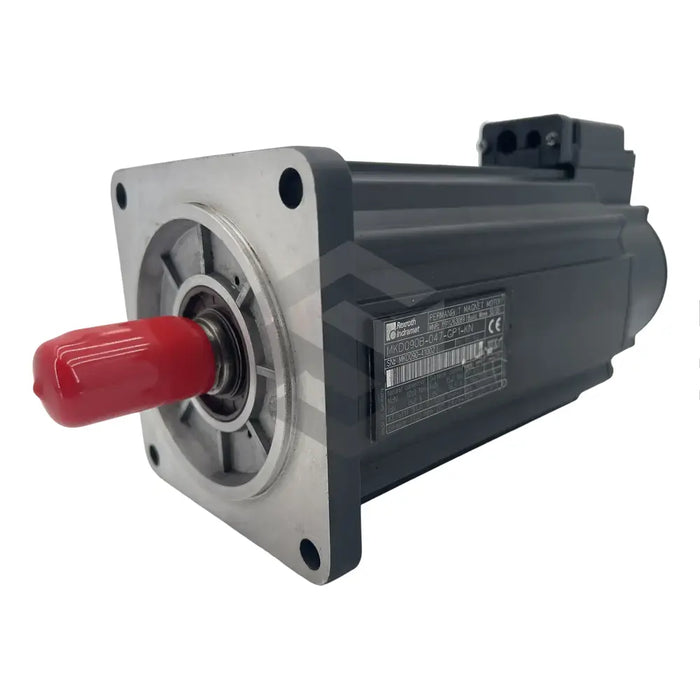

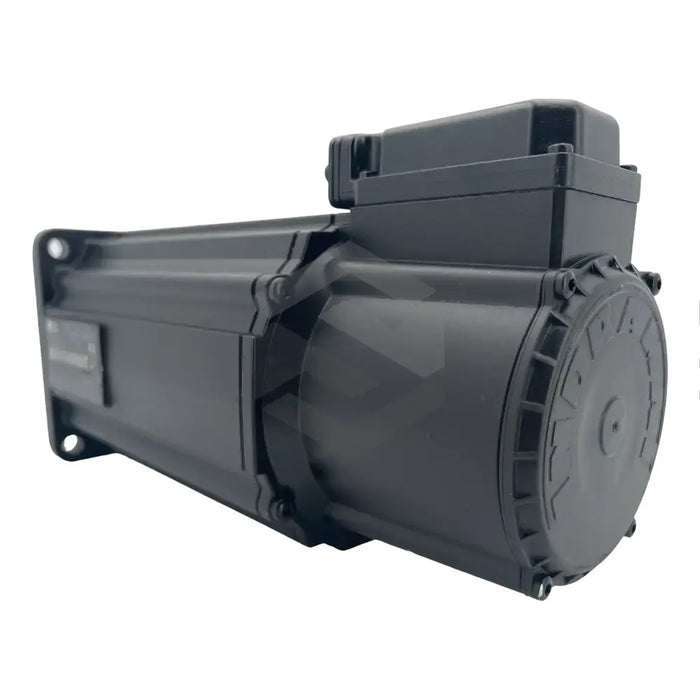

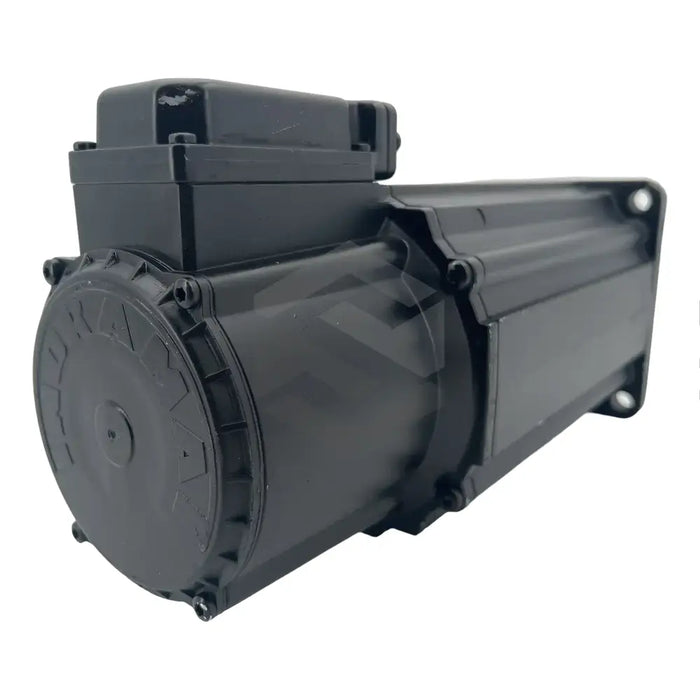

The R911263089 (MKD090B-047-GP1-KN), a product by Bosch Rexroth Indramat, serves as a cost-effective automation system for motors. Developed as a digital drive controller, it is utilized in various industries such as automotive, handling and automation, machine tools, and food processing and packaging. This product is a part of the reputable MKD motor series known for its high performance, lack of need for operational maintenance, and endurance in harsh environments. The controller's closed design has IP 65 protection and it comes with a motor temperature monitor to prevent overload.
The device is designed to deliver optimum dynamics stemming from an ideal torque-to-inertia mass ratio. Equipped with flexible cable designs, the R911263089 (MKD090B-047-GP1-KN) offers easy cable management and sensorless operation due to high overload capacity, offering installation convenience. It runs at a power rating of 600V-AC 3 phase with an amperage of 16.50A and includes a 24V brake. The device also has a 24mm shaft diameter and a rated torque of 15NM. The dimensions are 14 inches width, 12 inches height, and 12 inches depth, and it weighs 40 pounds. Its rated frequency is 200Hz, with a motor speed of 2500 min-1 and a maximum speed of 5000 min-1. Please adhere to the provided guidelines during installation to ensure safety and operational efficiency.
