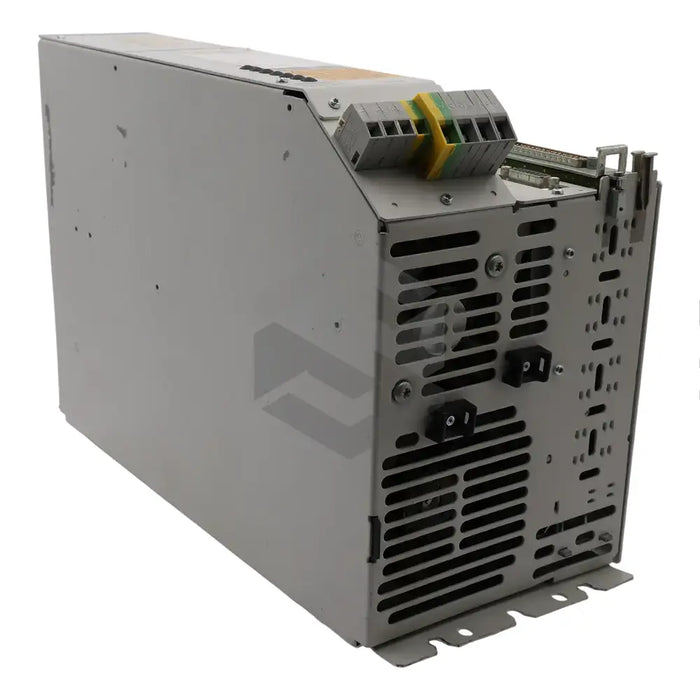

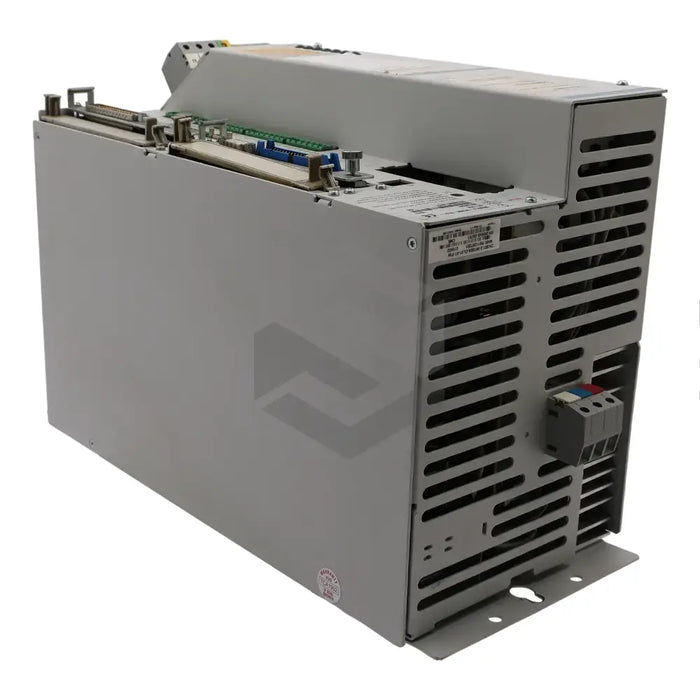

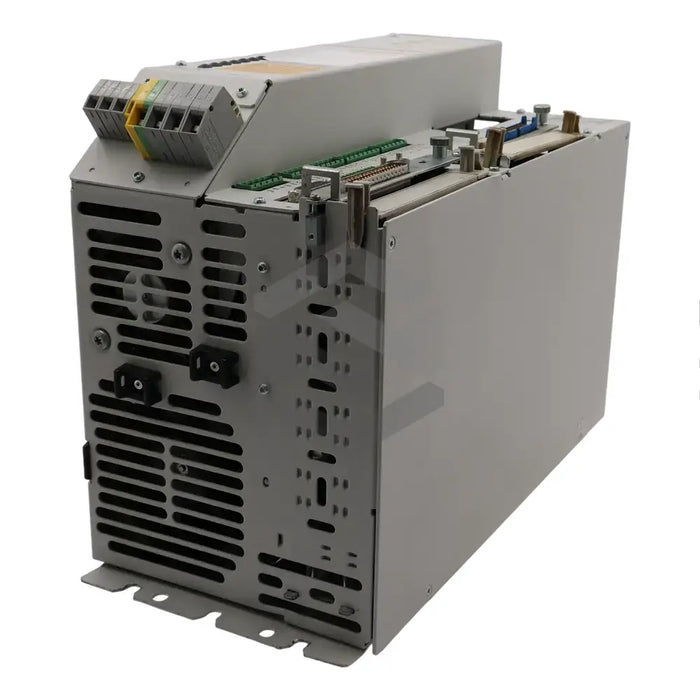

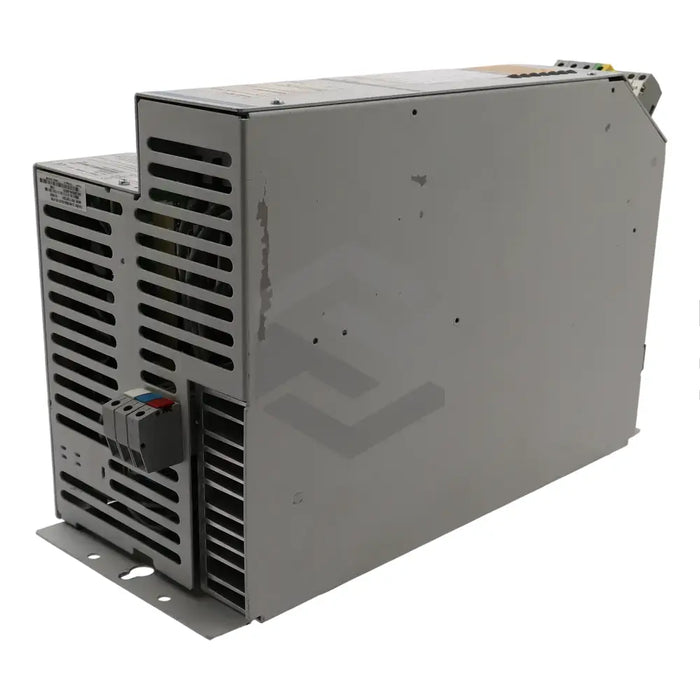

R911263202
The R911263202 (DKS01.1-W100A-DG01-00) is a state-of-the-art servo drive, part of Bosch Rexroth Indramat's DKS series. Weighing approximately 11 kilograms, this intelligent servo drive is quintessential when teamed with MDD servo motors, comprising a robust drive system. The drive is fully equipped with a software module, command interface card, an auxiliary plugin card, and a configuration label.
The technical details of the R911263202 (DKS01.1-W100A-DG01-00) include a current rating of 100 Amps and standard motor noise emissions. It utilizes a DSF-type encoder and is compatible with MDD servo motors while operating within a 50-60 Hz frequency range. In terms of power, it requires 11kVA at optimal capacity and provides continuous and peak regenerated power of 0.5 kW and 18 kW respectively. It has a power loss of 480 W at maximum load, excluding the bleeder. Adhering to DIN standards, it falls under the 'F' humidity and 'C' insulation classes with an IP 10 protection class. The storage requirements include a cool, vibration-free, and dust-free environment with an installation altitude reaching up to 1000m at full rated data. Transportation should have shock and impact absorption measures in place to protect the device.
