subseries image of R911263630

R911263630

by Bosch Rexroth Indramat
$3,787.13 - $3,787.13
$3,787.13
$3,787.13 - $3,787.13
$3,787.13
Available, Shipping Varies

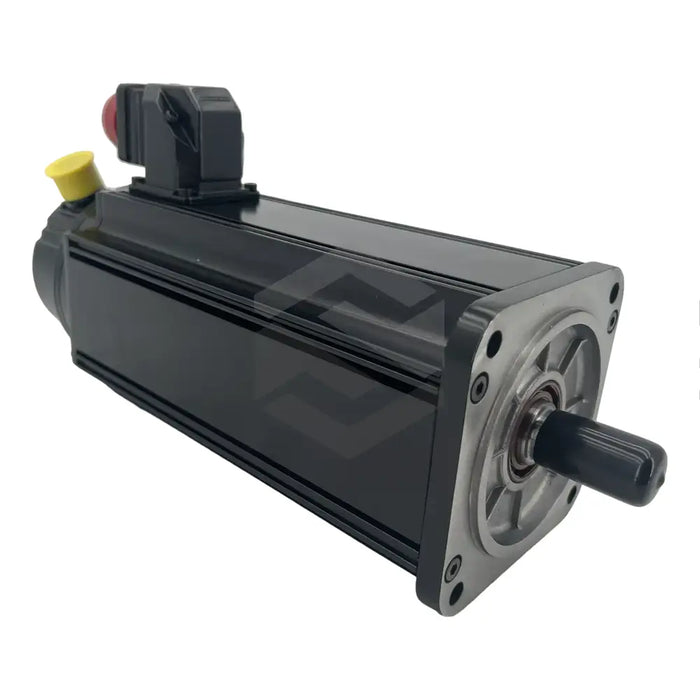

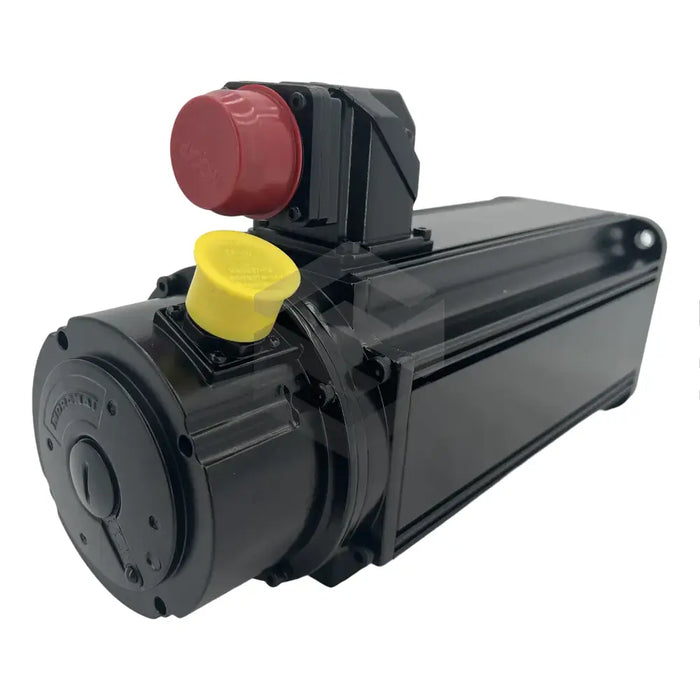

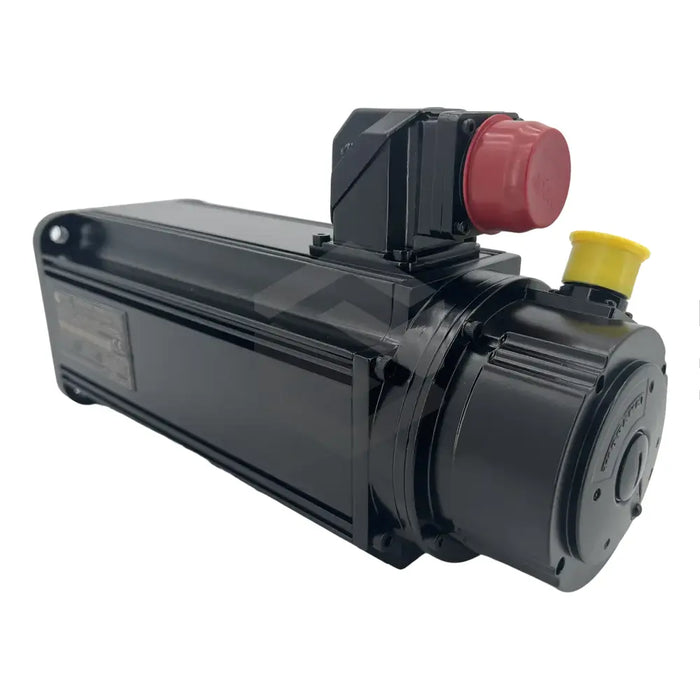

The R911263630 (MDD071C-N-030-N2T-095GB2) is a state-of-the-art AC digital servo motor developed by Bosch Rexroth Indramat, known for their cutting-edge motion control technologies. The motor employs an integrated multi-turn encoder and a digital servo feedback system. With a maximum theoretical torque of 20.5 Nm generated at a nominal speed of 3,000 rpm, and a continuous torque production of 6.6 Nm when static, the motor boasts a power-packed performance for various applications such as printing, textile, paper processing and other machines. Balancing class R per DIN VDE 0530, the motor consumes 48.6 A current and has a weight of 11 kg, necessitating careful handling. Equipped with a 95 mm centering diameter, the R911263630 (MDD071C-N-030-N2T-095GB2) model includes an electrically operated blocking brake of 6.5 Nm, ensuring operational safety when the motor is static. The plain output shaft is protected with sealing, while the B-side power connectors facilitate easy accessibility. With a standard side B shaft end and a motor length 'C', variations in lengths 'A' and 'C' are also available for customer convenience. Finally, the motor can be interfaced with a gear or pinion, enhancing its adaptability to varied industrial settings.
30 Day Warranty
Technical Specifications
  • Centering Diameter: 95mm
  • Servo Feedback System: Digital
  • Motor length: Standard Side B Shaft End (Available in lengths A and C)
  • Output Shaft Type: Plain (Sealed With a Ring)
  • Balance Class: Class R per DIN VDE 0530
