R911264743

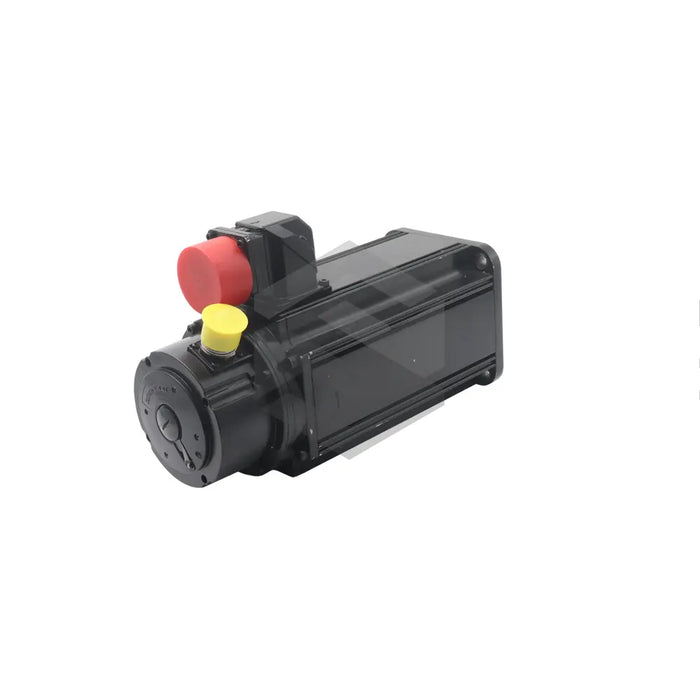

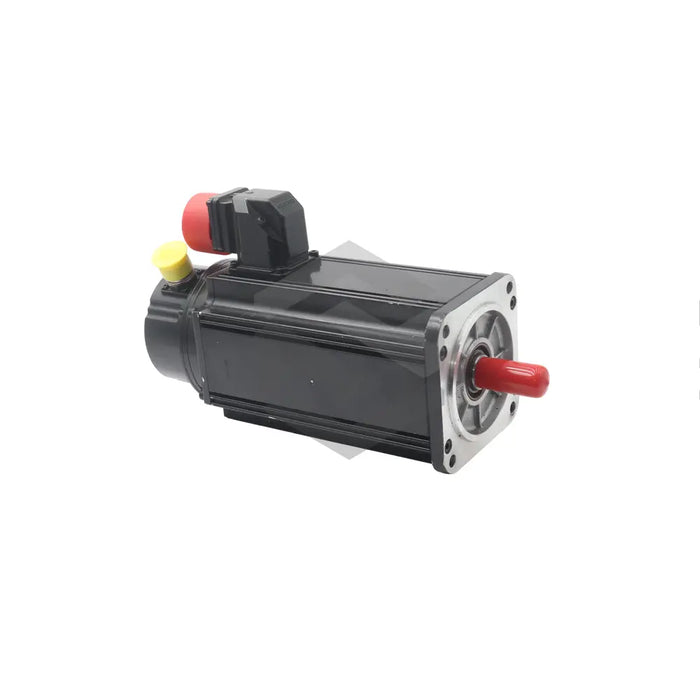

The R911264743 (MDD071B-N-030-N2S-095PB2), a Digital AC Servomotor by Bosch Rexroth Indramat, delivers up to 15 minutes of cycle time. Notably, the Bosch Rexroth servomotor's bearing lifespan is reduced with high radial loads, thus requires unloaded transportation and storage. Equipped with protective covers, the device is safeguarded from damage and moisture. If the servomotor has a blower for surface cooling, it should not be lifted by it. The S1 operating mode demonstrates the permissible continuous torque. The device features spigot nuts on the feedback and power connectors. Additionally, the product is esteemed for its precise contouring accuracy, particularly with exceedingly high feed rates.
The servomotor also houses either rare-earth or iron oxide permanent magnets, which results in low inertia, and it allows peak torque use over a broad speed range. The motor shaft can be clamped while at a standstill due to its floating bearing on Side A, which absorbs radial forces. Notably, a maximum installation elevation of up to 5000m is supported. The unit's housing offers protection against water intrusion and external objects. However, the blocking brake may fail or wear out after approximately 20,000 revolutions. Notably, the flanged socket for feedback connection contains 12 pins, and power cables with either inch or metric diameters can be used. The blower can be removed as needed and power connector output direction cannot be altered. Lastly, global dispatch of the R911264743 (MDD071B-N-030-N2S-095PB2) AC motor is handled by major freight carriers such as FedEx and DHL.
