R911265232
Original price
$12,500.00
-
Original price
$12,500.00
Original price
$12,500.00
$12,500.00
-
$12,500.00
Current price
$12,500.00

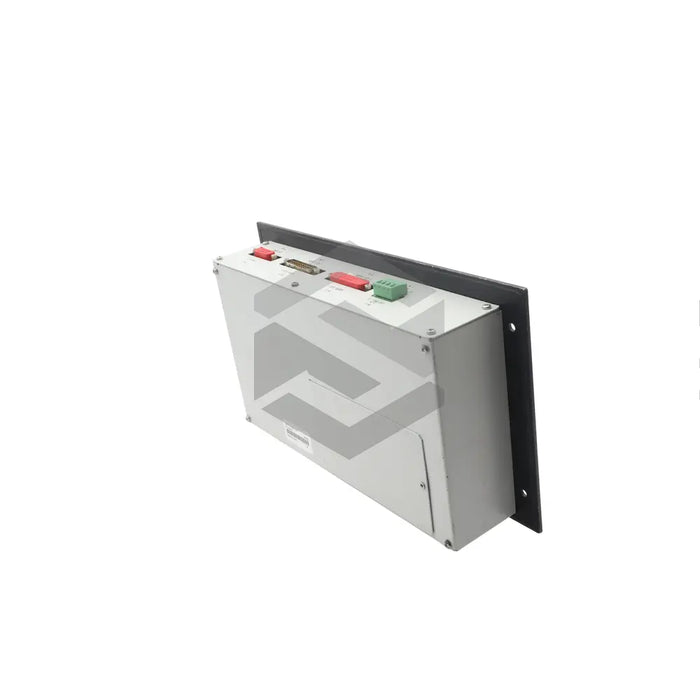

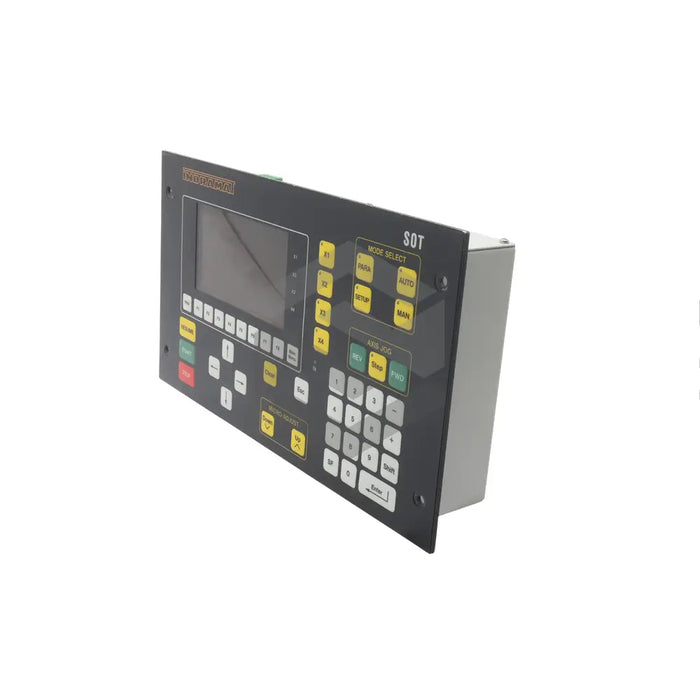

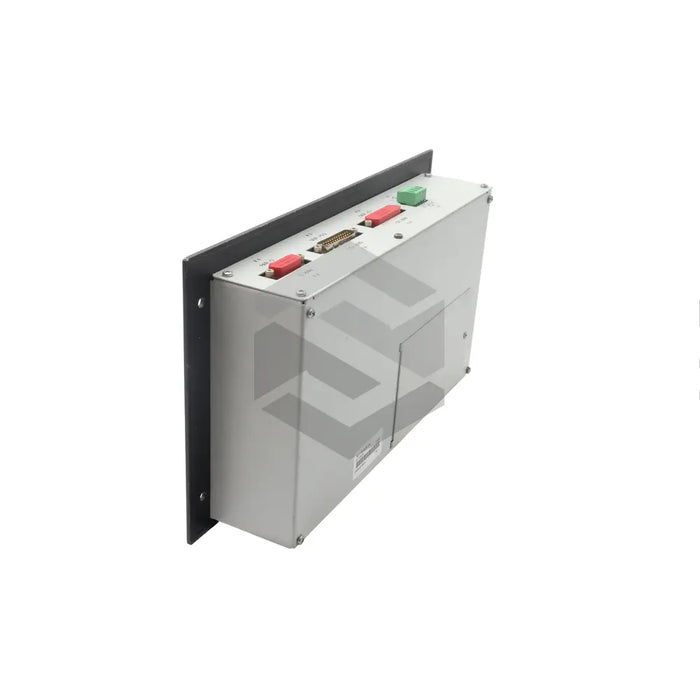

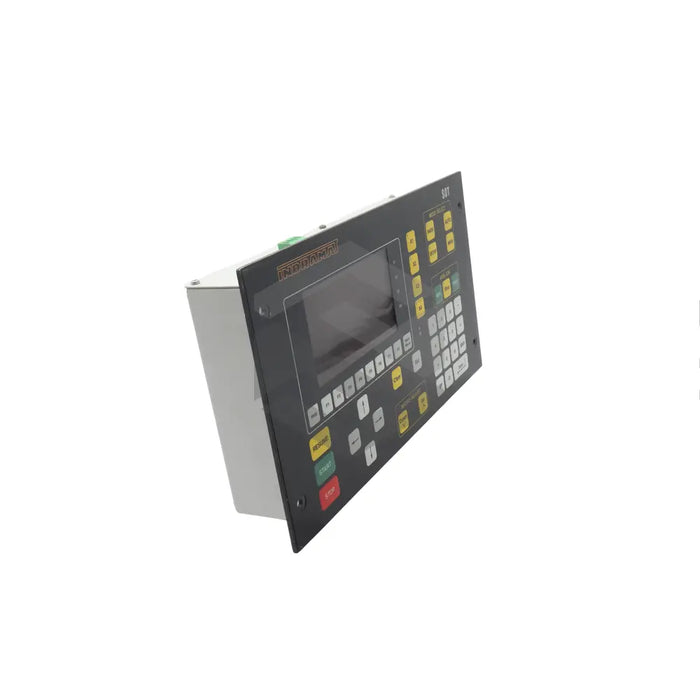

The R911265232 (SOT02-E2R-FW), produced by Bosch Rexroth Indramat, is a renowned operator control panel. It is uniquely designed for operating the DLC and carries certain enhancements unavailable in the original DLC control panel. This device can be connected remotely to the DLC over a 1000 meter distance through an RS485 cable. It boasts a non-glare, spacious display (4-7/8" by 2-3/4") that’s illuminated by a cold cathode fluorescent lamp. Notably, the contrast of the display can be adjusted according to operators' preferences and the panel can be customized using the Screen Manager software.
The R911265232 (SOT02-E2R-FW) device delivers real-time feedback on the system status and errors, enhancing operational awareness. The unit flags minor errors if operational conditions are not met and signals critical errors that could harm the equipment or cause operator injuries. Moreover, the panel communicates a plethora of error situations such as invalid drive software or configuration, drive errors, drive axis hardware faults, and measuring wheel encoder faults. It even alerts operators about any issues that interrupt standard machine operations. Further, it provides warnings if a drive is disabled or an axis doesn't accurately align. Warnings are also issued if the feed angle is missing, or if the feed length is less than the minimum or exceeds the maximum.
30 Day Warranty
Technical Specifications
