R911265241

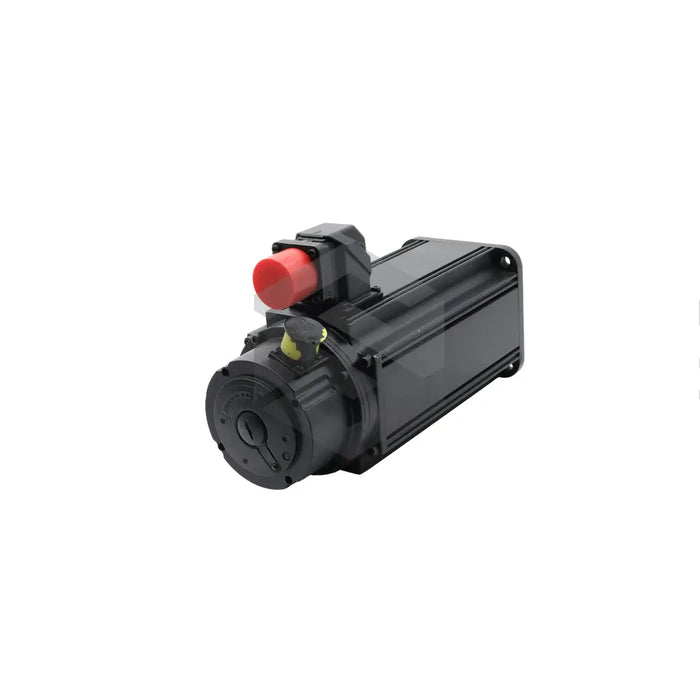

The R911265241 (MDD071C-N-040-N2T-095GA2), a digital AC servomotor from Bosch Rexroth Indramat, is designed without support for B14 mounting and allows power cables with a metric diameter to be crimped and soldered. The servomotor features a 12-pin flanged socket for feedback connection, with operation subject to both radial and axial forces. The unit, measuring at an overall length of 316mm, exhibits intermittent duty torque on its operating curves as per the S6 mode. The device comes with protective covers, to be removed prior to installation, and must display a clearly visible type plate on its housing.
Proper product handling should not involve gripping via the output shaft to prevent bearing damage due to heavy loads and impact. The servomotor demonstrates 9.9Nm continuous torque at natural convection and can be mounted with a DIN 42948 compliant flange. Connectors for power and feedback need to be purchased separately. The device features a 071 size code, a visible type plate displaying critical details, and a floating bearing on side A. While it supports installation at any orientation, its performance can decrease from 1000m to 5000m above sea level. Lastly, it has a maximum shock duration of 6ms for the lateral axis.
