R911265359

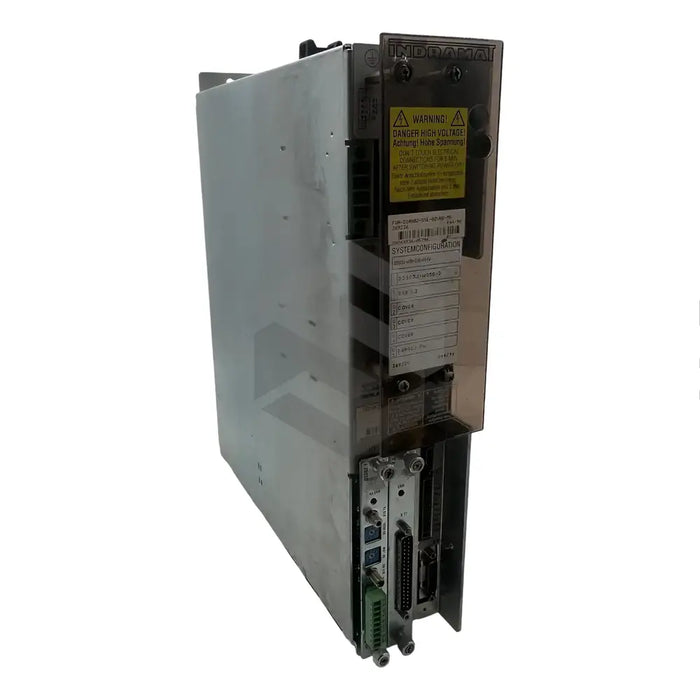

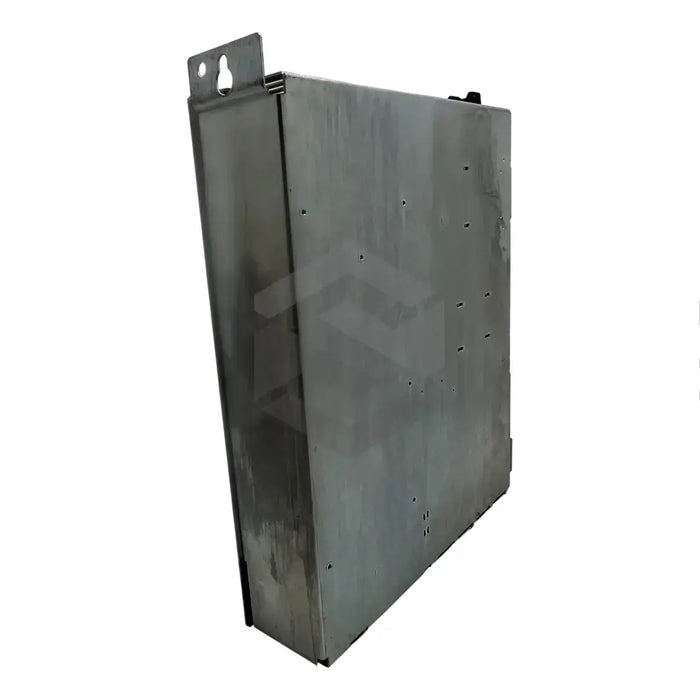

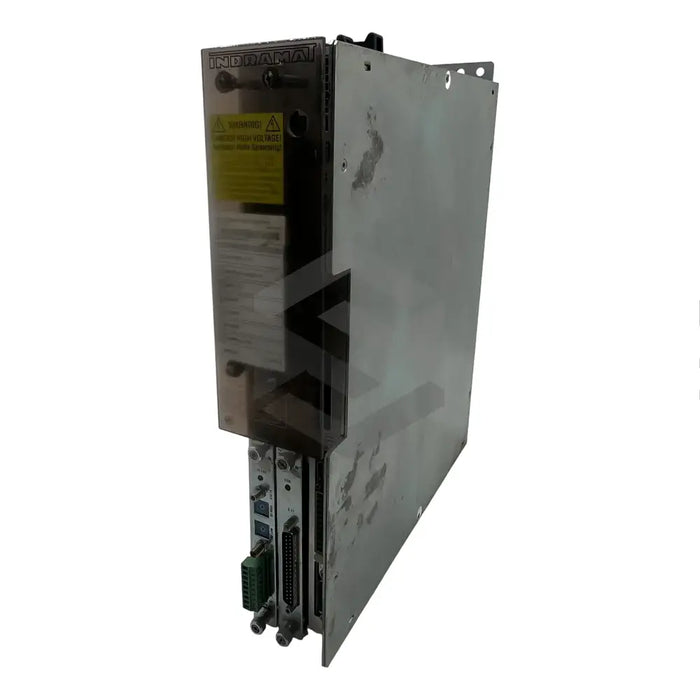

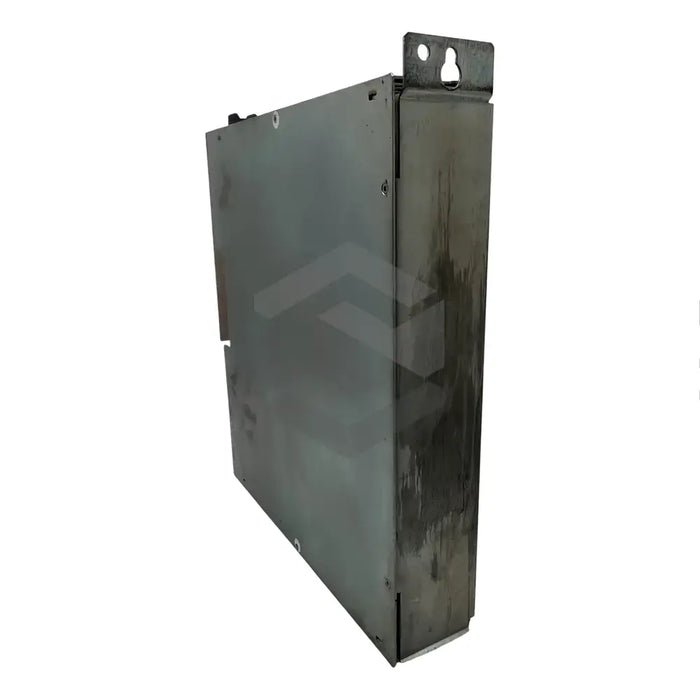

The R911265359 (DDS03.2-W030-BE23-01-FW) is a DDS drive controller by Bosch Rexroth Indramat. It provides a peak current of up to 30A, while offering a continuous current of 12A. The drive operates best in temperatures ranging from 0 to 45 degrees Celsius, can survive storage and transport temperatures from -30 to 85 degrees, and functions under 95% humidity sans condensation. It maintains an IP 20 protection category, requiring an IP 10 compliant control cabinet for installation. The permissible maximum installation elevation for this unit is 1000 meters above sea level.
This model permits a maximum cable length of 75 meters for motor connection, outfitted with three connection lines, a protective conductor connection, and a shielded cable pair for temperature monitoring. It should be kept safe from condensation to avoid damages. The R911265359 (DDS03.2-W030-BE23-01-FW) has a weight of around 5.5 kg. It needs a large cabinet due to its extensive heat conductance requirements or heat exchanging units, and should be placed near the supply unit. The product features a SERCOS interface, enabling the drive's operation through fiber optic cables with SERCOS controls. The software module of the unit contains firmware and drive parameters, that are upgradeable and transferable between units, with firmware separately orderable to fix functional features.
