R911265389

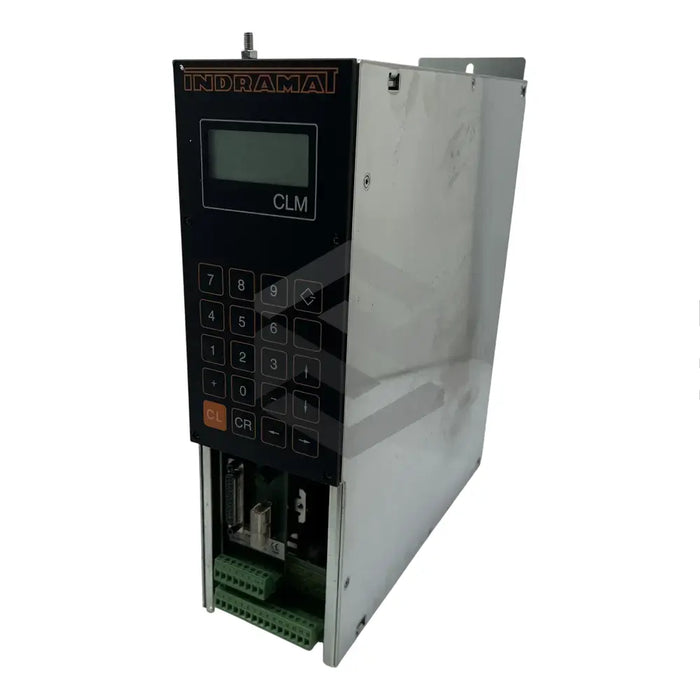

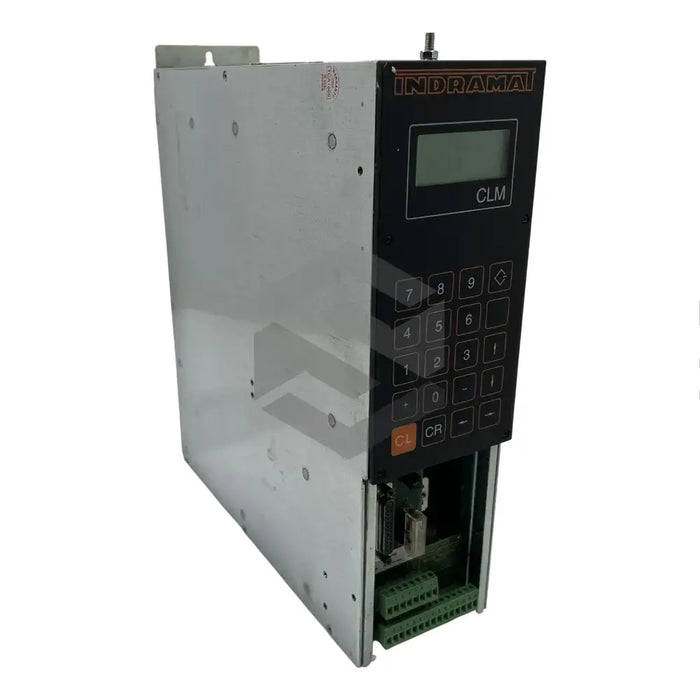

The R911265389 (CLM01.3-X-E-2-0-FW) is an axis positioning control module produced by the reputable Bosch Rexroth Indramat. This specific model from the series CLM permits high-precision motion control with a feed resolution of 0.001 inch. The operational performance of this system depends largely on the mechanical attributes of the system. Moreover, the module is user-friendly as it allows the user program to be entered by employing the optional interfaces or front panel controls. The operating status messages are displayed on its built-in monitor, which simplifies the operation. The R911265389 (CLM01.3-X-E-2-0-FW) can be customized to work with different machines by entering data relevant to a wide range of parameters, thus adapting it to the mechanical and electrical characteristics of any application.
The R911265389 (CLM01.3-X-E-2-0-FW), a part of the CLM series, is a two-axis, line 1 and design 3 control module with a factory-assigned firmware and a 'B' type display. The module has been designed by Rexroth to integrate seamlessly with the machine builder's equipment design. It is equipped with various input and output signals designed to communicate with the machine's components, with the I/O connection being the major interface enabling such communication. This module constantly operates in one of its three modes - manual, parameter, or automatic, with the parameter mode being recommended.
