R911265391

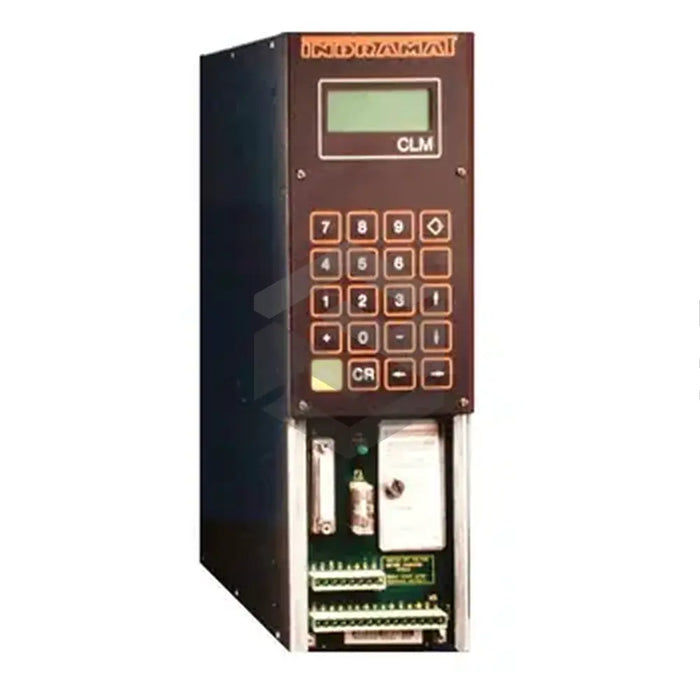

The R911265391 (CLM01.3-X-0-4-0-FW), a four-axis positioning control, is produced by Bosch Rexroth Indramat and belongs to the CLM product line 1 series. The design control is type 3, with an assigned factory firmware and is compatible exclusively with type A software. The layout incorporates a standard liquid crystal display without a backlight, and a standard Input/Output (I/O) expansion, but it doesn't admit extensions. The mechanical constraints directly affect its performance capabilities.
The operating environment temperature for the R911265391 (CLM01.3-X-0-4-0-FW) ranges from 5 to 45 degrees Celsius (41 to 113 degrees Fahrenheit) while the recommended storage and transportation temperature stretches between -30 degrees Celsius and 85 degrees Celsius. The design allows a maximum mounting and operating height of 1000 meters, however, higher altitudes could be achieved with sufficient cooling. Adhering to the IP 10 protection system, it is designed for cabinet housing installations.
Furthermore, the R911265391 (CLM01.3-X-0-4-0-FW)'s I/O interface includes 24 standard CLM auxiliary inputs and 19 standard CLM auxiliary outputs, with the auxiliary inputs drawing a current of 10mA at 24 volts DC. The unit's display panel is equipped with 20 pressure-sensitive membrane keypads and a detachable LCD module, which presents operational errors, diagnostics, or parameters, and can be mounted separately up to 2 meters away using the suggested connection cable.
