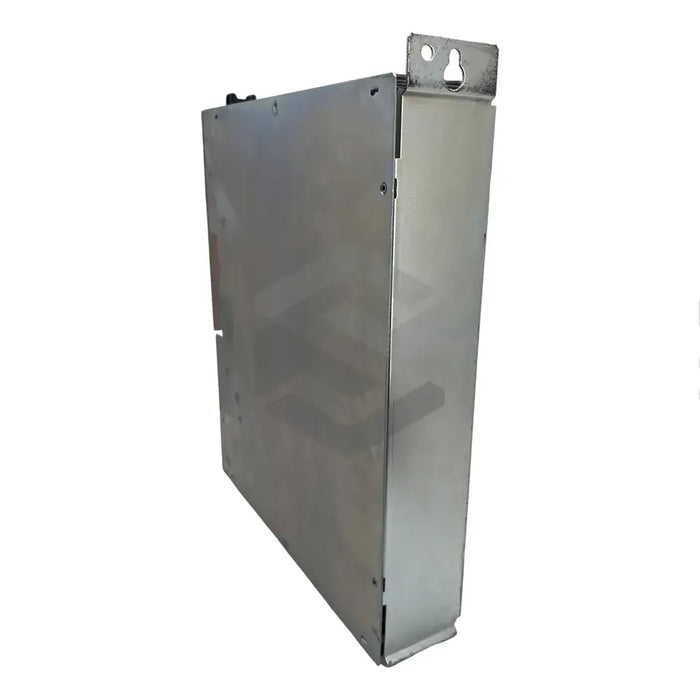

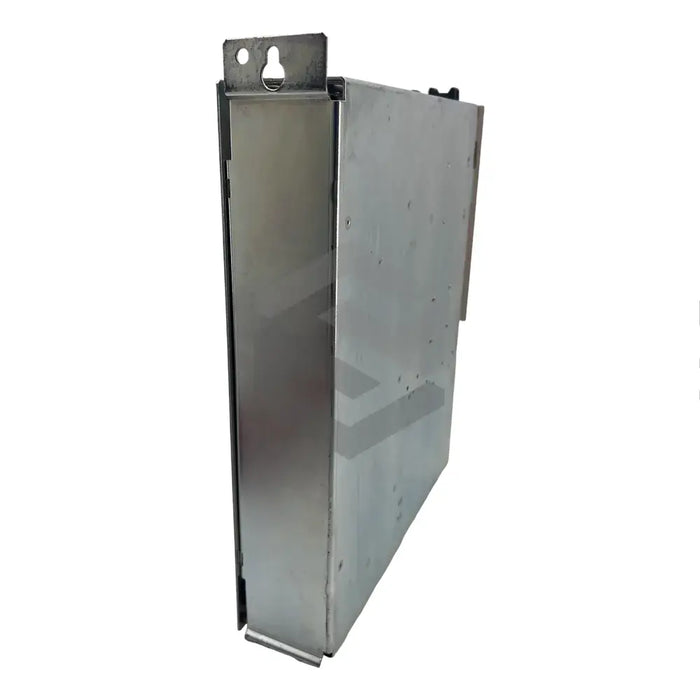

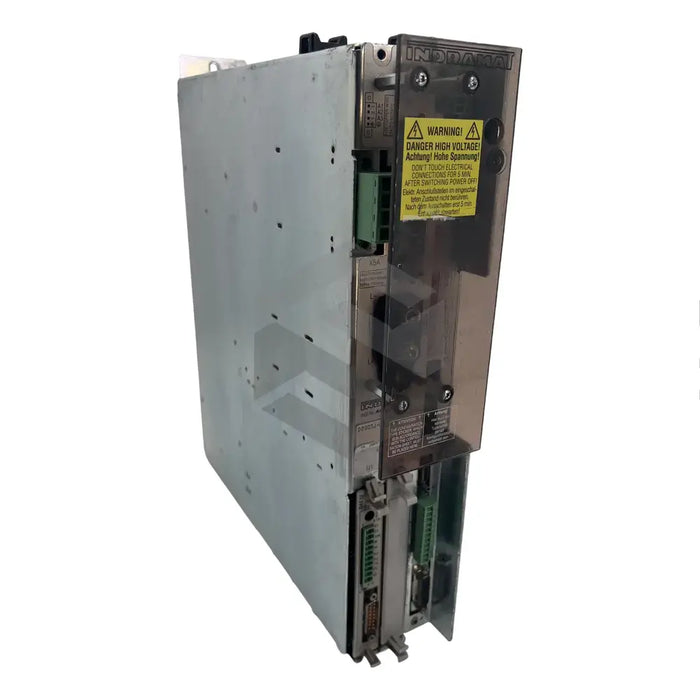

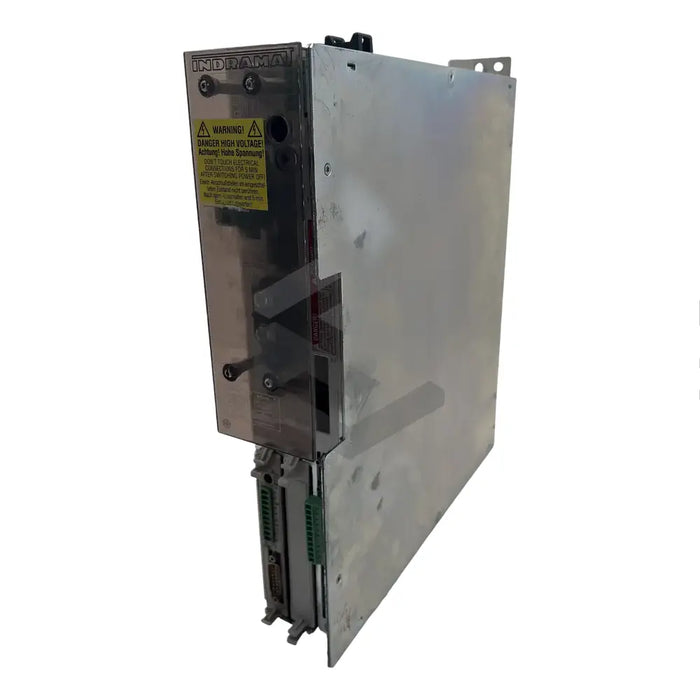

R911265709
Crafted by Bosch Rexroth Indramat, R911265709 (DDS03.1-W030-RC01-01) is a robust DDS series drive controller with a rated output current of 30 Amps. This performance rating pertains to conditions within the temperature range of 0 to 45 degrees Celsius and elevation from 0 to 1000 meters. The controller's performance decreases linearly between 45 and 55 degrees Celsius and non-linearly between a 1000 to 5000 meter altitude. It's advised against usage exceeding these parameters. The device boasts an IP20 ingress protection class, requiring cabinet mounting for enhanced protection against dust and moisture. Weighing 5.5 kilograms, the device is best stored and transported within an ambient temperature range of -30 to 85 degrees Celsius.
The R911265709 (DDS03.1-W030-RC01-01) comes equipped with a command communication module that supports Interbus-S, with an inclusion of a resolver-based feedback system. Notably, it can accommodate digital servo feedback if requested by customers. Its compact dimensions include a height of 355 millimeters, a width of 70 millimeters, and a depth of 325 millimeters. The device mounts vertically and requires a minimum spacing of 80 millimeters on the top and bottom, and 40 millimeters on the front for optimal heat dissipation. The controller firmware and operating parameters are housed in a software module, with an option for three additional plug-in modules. The device is identifiable through rating plates, which should be cross-checked upon delivery.
