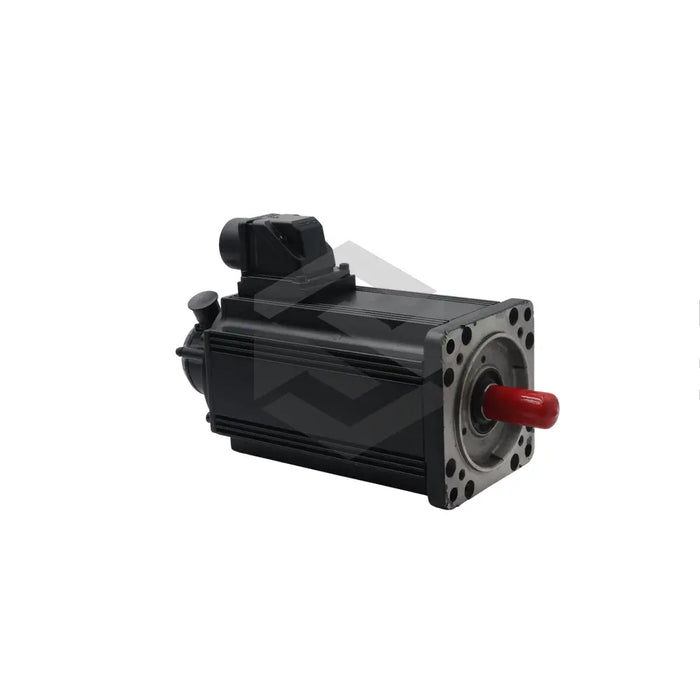

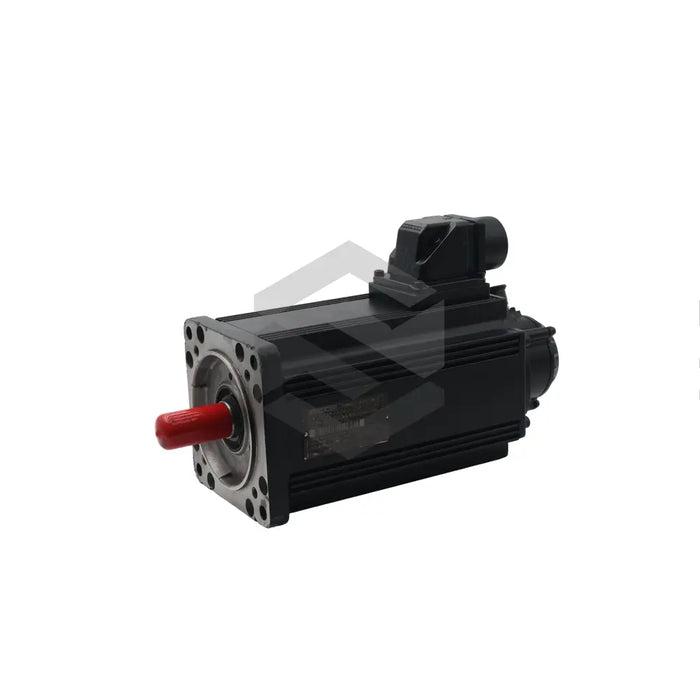

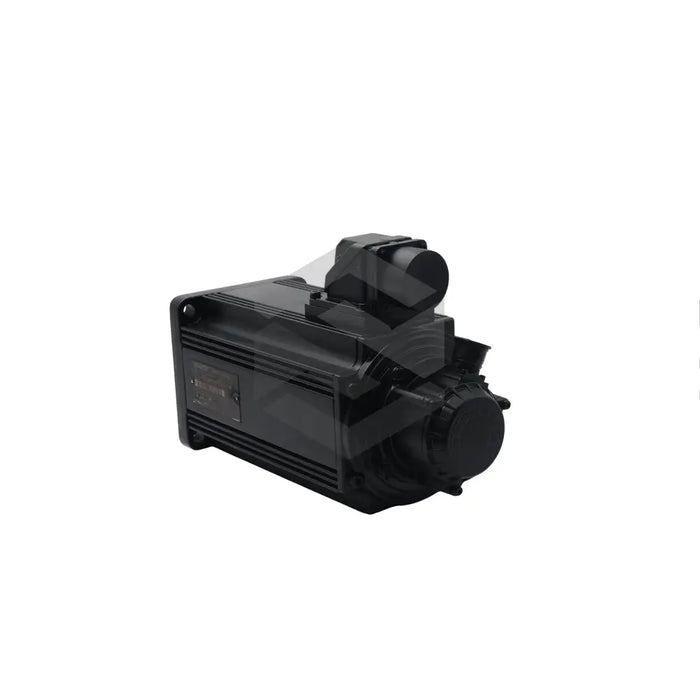

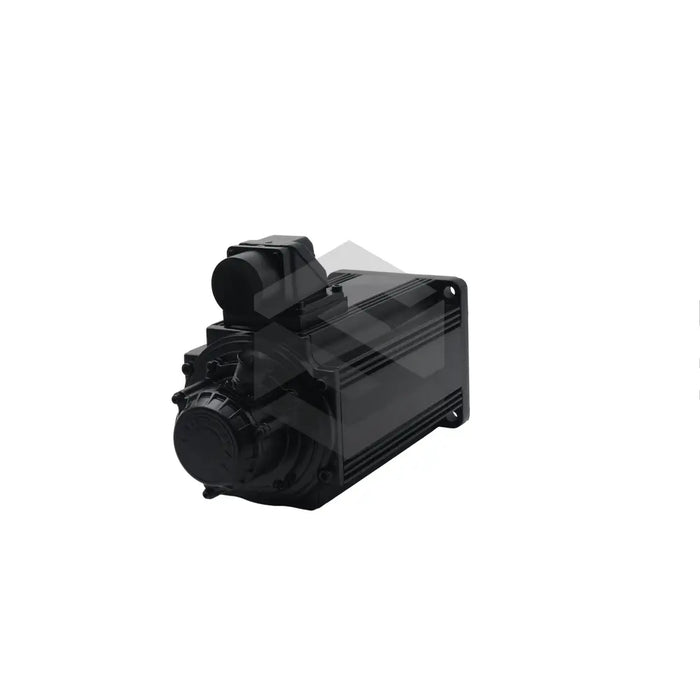

R911266255
The R911266255 (MDD093B-N-040-N2M-110GA0) is a top-quality product from Bosch Rexroth Indramat, a trusted manufacturer known for its reliable and efficient system components. This model is designed with a power connection on the A-side, and a housing that promotes both natural and surface cooling. The motor is capable of delivering a maximum output torque of 45.1 Newton meters and can operate up to speeds of 4,000 revolutions per minute. However, it's important to note that this motor should only be utilized at altitudes that do not exceed 1,000 meters above sea level, and in compliance with the specific instructions for accessories use provided in the user guide.
The R911266255 (MDD093B-N-040-N2M-110GA0) has a centering diameter of 110 mm with a torque constant of 0.40 Nm/A. The product is built with an N-class balance and has a plain output shaft that features a lubrication-protecting sealing ring at the top. It comes with a digital servo feedback with integrated multiturn encoder. The motor offers steady torque of 14.5 Nm with a continuous current of 36.5 A under stationary operation. Compliant with IP65 standards, the R911266255 (MDD093B-N-040-N2M-110GA0) provides protection against dust and liquid. It possesses a thermal time constant of 45 minutes for surface cooling and must be paired with a driving controller for optimal operation. Its winding properties include an inductance of 1.9 mH and a resistance of 0.20 ohms.
