R911266342

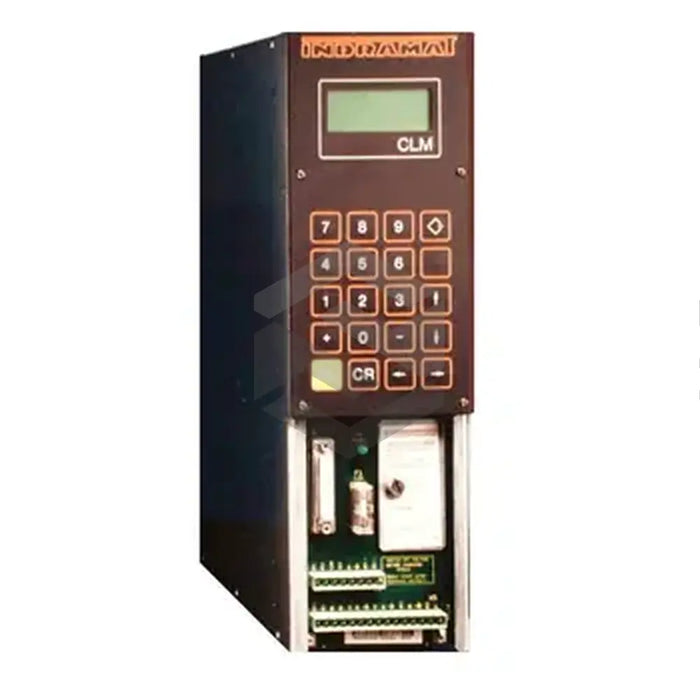

The R911266342 (CLM01.3-X-0-1-0-FW) is an innovative axis positioning control device from the CLM series by Bosch Rexroth Indramat. This type-3 line-1 product, equipped with factory-set firmware, stands out for its ability to model and predict the motion profile of servo drives while comparing the expected and actual responses. It identifies irregularities such as position delay or drive runaway. This specific model, with its 1-axis capacity, can solely work with M type software. It possesses a standard display design, without backlight and can be installed at a maximum of 2 meters from the CLM. Its feasible mounting options include within a cabinet and on the surface of the cabinet.
Its operational ambient air temperature varies from 41 to 113 degrees Fahrenheit, or 5 to 45 degrees Celsius. It can accommodate transport and storage temperatures from -22 to 185 degrees Fahrenheit, or -30 to 85 degrees Celsius. The maximum operational altitude at rated data allowed is 1000 meters. Its display component has a 20-key keypad along with specific control function keys and a display offering 4 lines with 16 characters per line. Notably, this device does not offer hardware expansion. The R911266342 (CLM01.3-X-0-1-0-FW) is entirely self-diagnostic and can detect operator and control errors, along with machine faults and normal operating status. This shows up on the control panel of the device in the chosen operational language. This device comes standard with 19 auxiliary outputs and 24 auxiliary inputs, customizable by the user for acknowledging and electrically steering the machine.
30 Day Warranty
Technical Specifications
