R911266389

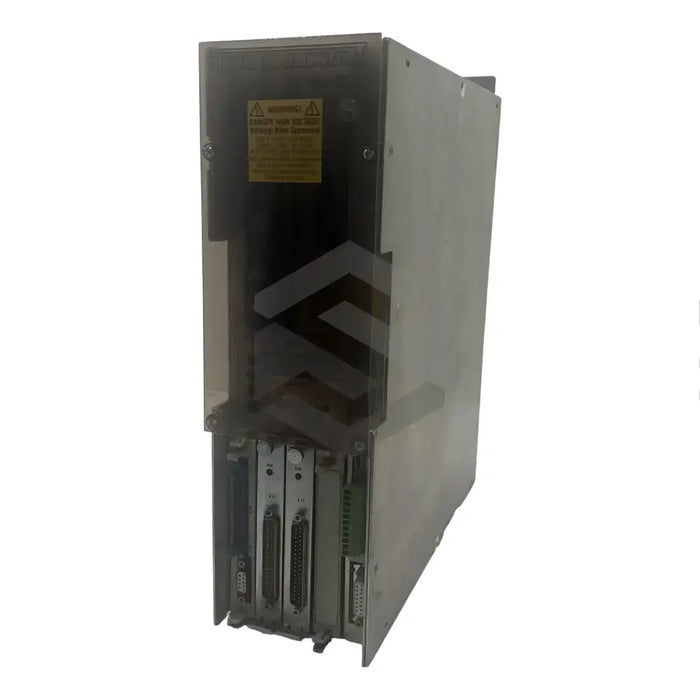

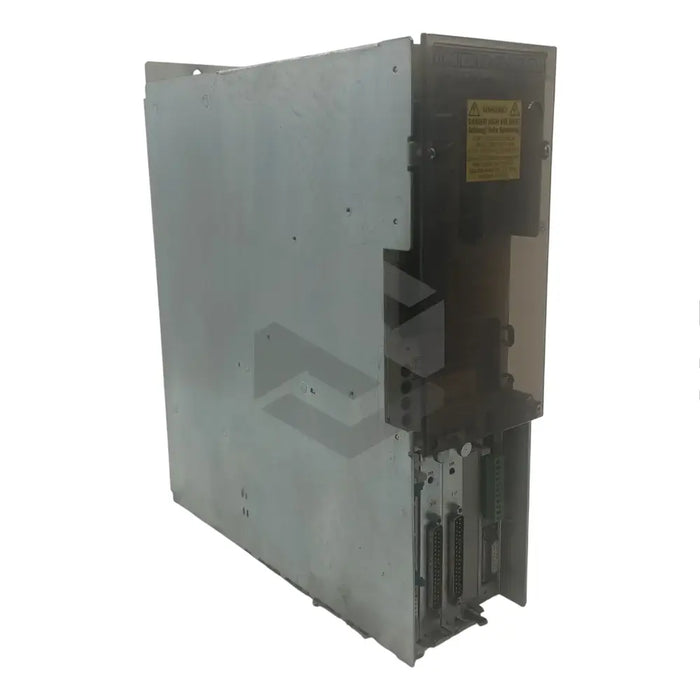

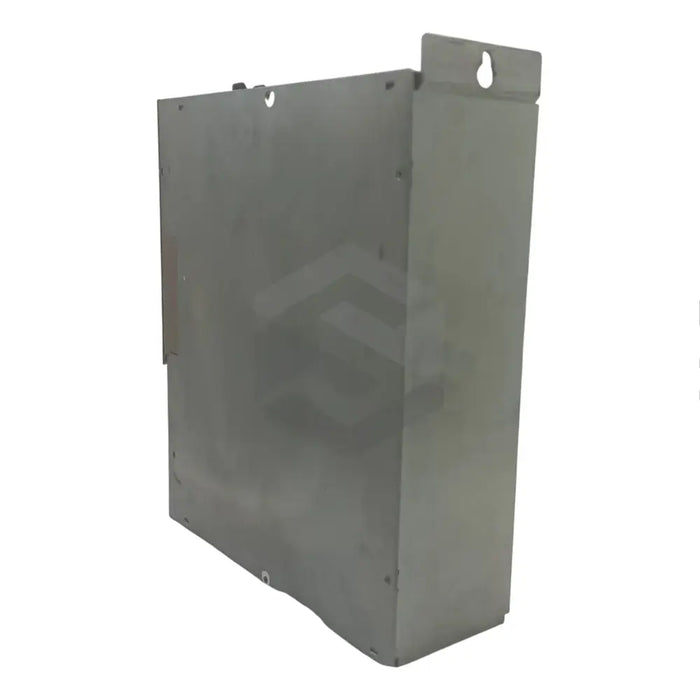

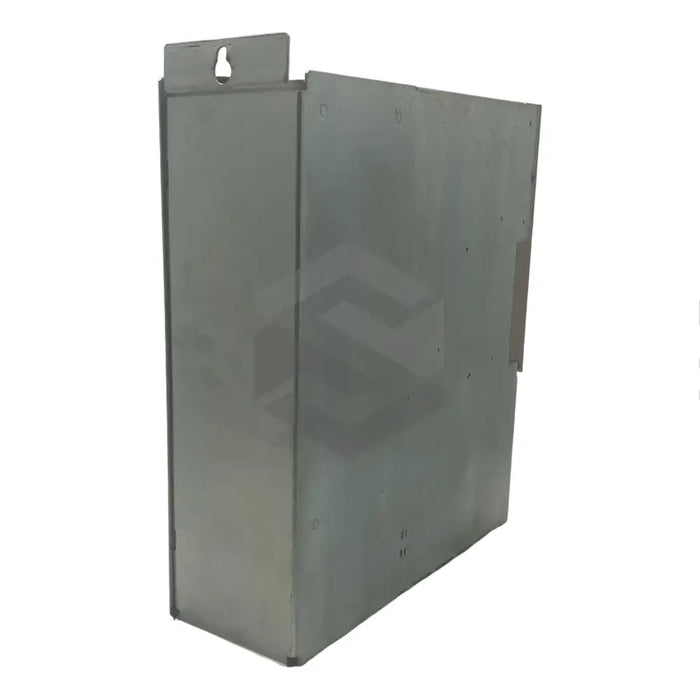

The R911266389 (DDS02.1-W025-DL02-01-FW), a product of Bosch Rexroth Indramat, is a high-efficiency industrial drive controller. Primarily developed for industrial use, the controller enables precise control of synchronous and induction motors within industrial servo systems. Boasting an IP20 protection-rated housing unit, the controller can be directly integrated into the servo system. Although it is designed with safety at its forefront, correct handling, proper configuration parameters, and appropriate wiring connections are paramount to avoid potential hazardous situations.
The R911266389 (DDS02.1-W025-DL02-01-FW) operates optimally with an input current of approximately 25 amperes. The controller's internally regulated temperature is maintained through forced ventilation that uses an external heatsink and air blower. This mechanism effectively dissipates the heat from the controller's housing, preventing overheating and allowing multiple drive controllers to be installed in the same small cabinet. Approximately 170 watts heat energy is expelled under normal conditions. The controller's property verification is supplied via a type label upon delivery. Importantly, to avoid electric shocks, a leakage current generation of nearly 3.5 milliamperes mandates proper grounding of the controller and any connected accessories.
