R911266469

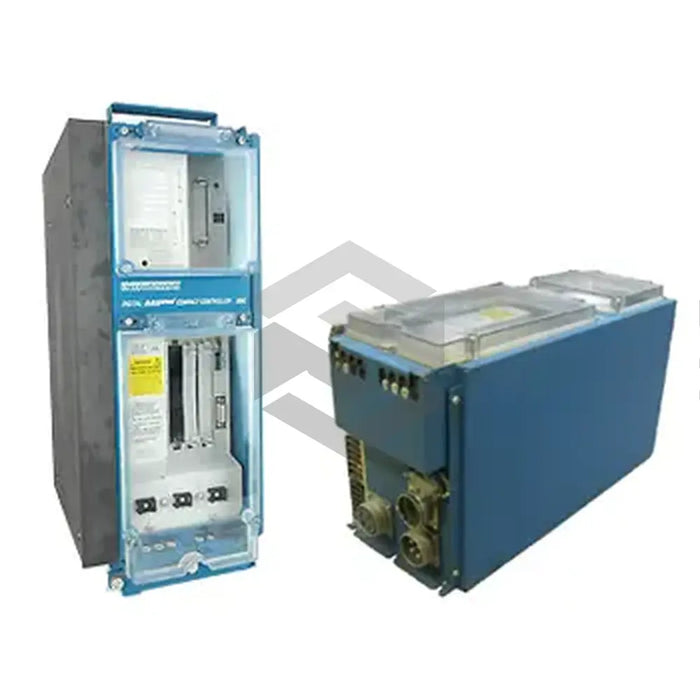

The Bosch Rexroth Indramat R911266469 (DDC01.1-K100A-DL01-01-FW) is a digital servo drive crafted specifically to function with MDD series servomotors and a single-axis positioning module. The firmware is not included with the product and must be purchased separately. The item offers a X4 connector for adequate motor feedback. It houses a slot at the top half of its front panel capable of holding a software module. Instructions prescribe the control and signal leads to be perfectly perpendicular for optimal operation. When paired with a one-axis positioning module, the device can operate as a digital positioning controller.
This servo drive boasts compact and modular housing designs. While the compact housing offers IP 65 level protection, the modular design provides an IP 10 rating. A cleaning should be scheduled if the heatsink and blower become dirty. The product comes with a motor power cable and a motor feedback cable for effective connection to the relevant AC servomotor. This drive controller model affords programming up to 3,000 blocks. Various plug-in modules can be housed, including an input/output interface and an Interbus S interface module. The R911266469 (DDC01.1-K100A-DL01-01-FW) ensures unrestricted air entry and exit. The connectors for blower, mains, and motor power are located at its base, with the X3 connector handling analog inputs and outputs.
