R911266488
Original price
$2,914.78
-
Original price
$2,914.78
Original price
$2,914.78
$2,914.78
-
$2,914.78
Current price
$2,914.78

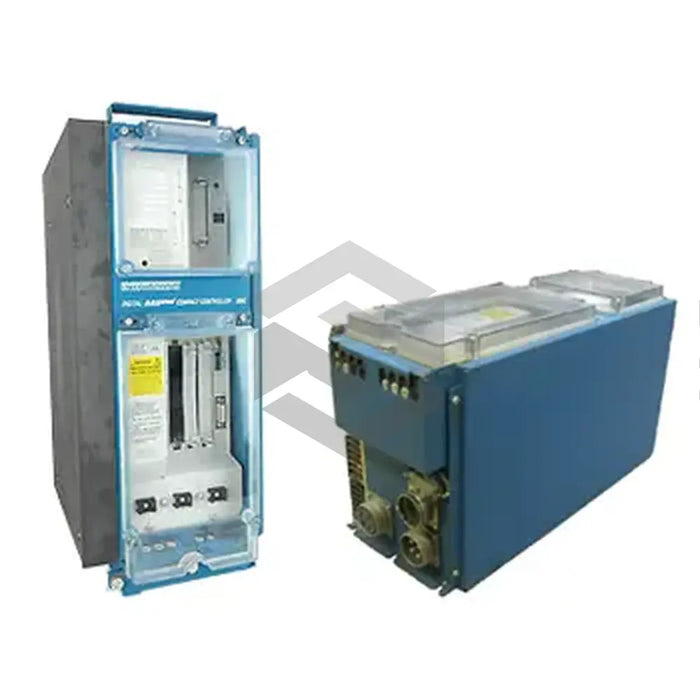

The R911266488 (DDC01.1-K200A-DL01-01-FW) digital AC drive, manufactured by Bosch Rexroth Indramat, is a microprocessor-controlled device from the DDC product range. Designed with precision, it functions by tracking the rotor's positioning at a high resolution. The drive couples a single-axis positioning module and a brushless mechanism, promoting optimal performance. It is configurable with the electrical and mechanical aspects of a machine. One can combine multiple drive controllers with a single supply station to create a comprehensive drive package. Its ease of compatibility with MDD series AC servomotors makes the drive a perfect match for transfer systems.
This drive controller boasts of a compact housing with IP 65 protection. Its inclusive drive package can incorporate AC servo drives and main spindle drives of varying outputs. Connection to the motor is attained via a power cable and a feedback cable. You can optimize the controller for a specific task by integrating the suitable software module and auxiliary plug-in cards. The software module comes housed with the necessary parameters to synchronize the controller with the mechanical aspects of the machine and the motor. The main components of the basic unit are a mains section, a bleeder resistor, and a DC bus rectifier. Ensure that the fitted modules align with those on the rating plate before commissioning the drive.
30 Day Warranty
