R911266773
Original price
$7,387.18
-
Original price
$7,387.18
Original price
$7,387.18
$7,387.18
-
$7,387.18
Current price
$7,387.18

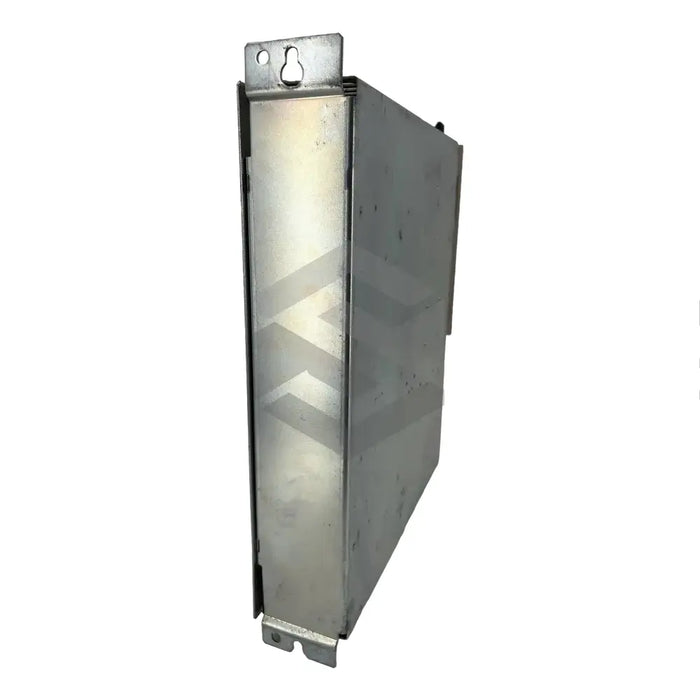

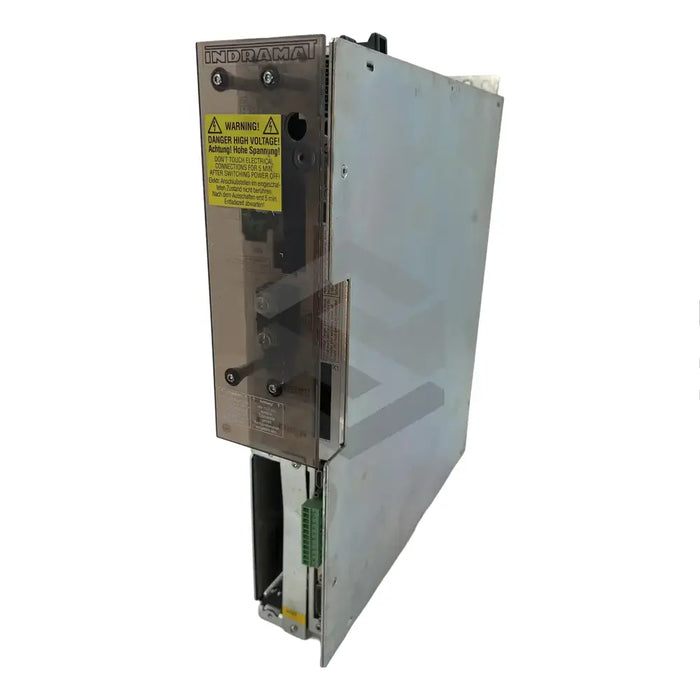

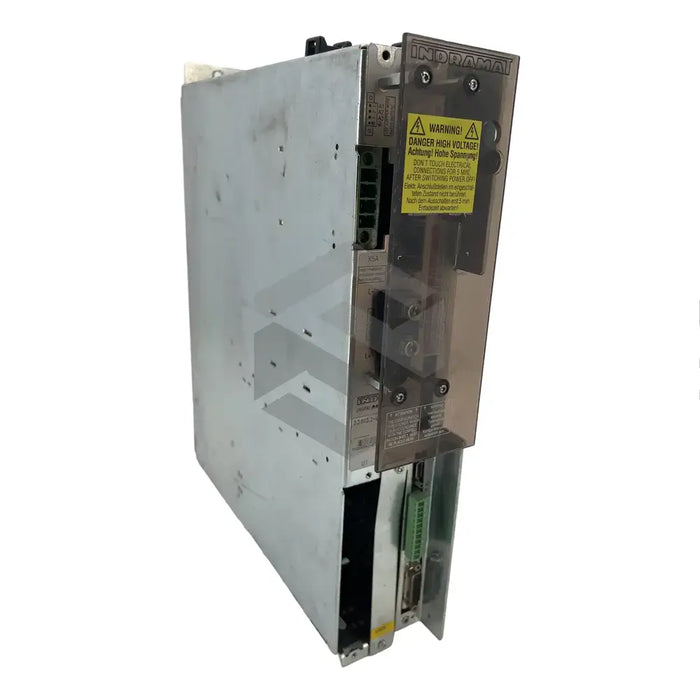

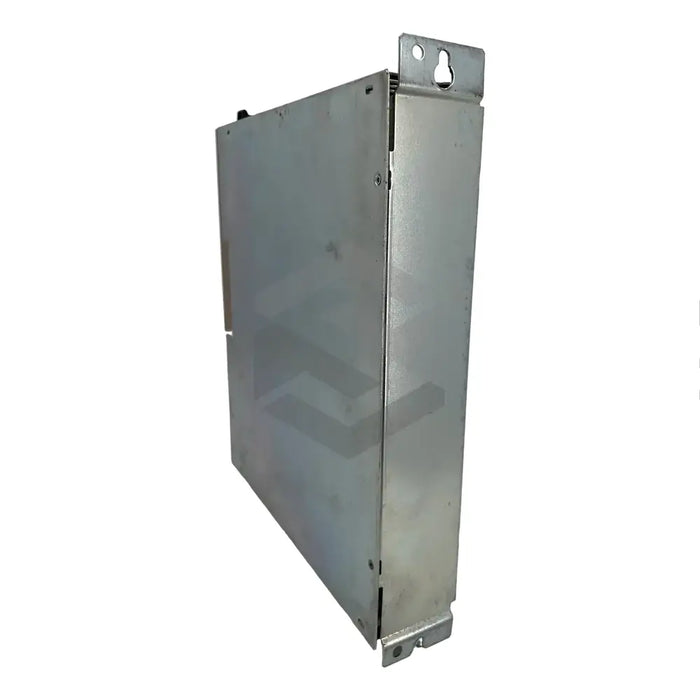

The R911266773 (DDS03.2-W015-B) drive controller, crafted by the skilled hands at Bosch Rexroth Indramat, boasts a versatile modular structure. This design promotes integration with principal and AC servo drives, yielding a compact yet efficient system with a unified supply unit. To attain peak performance, the drive requires operational temperatures within 0 to 45 degrees, with safe storage and transport ensured between temperature extremes of -30 and 85 degrees. The maximum allowed installation altitude is up to 1000 meters above sea level and relative and absolute humidity cannot exceed 95% and 25g/m3 respectively.
Equipped with firmware, plugin, and software modules, the R911266773 (DDS03.2-W015-B) provides rapid response in combination with AC motors such as LAR, LAF, MKD, and MDD, making it suitable for applications in different industrial sectors including robotics, food processing and packaging machinery. The R911266773 (DDS03.2-W015-B) features a rated current of 15A, a digital servo coupled with a resolver motor feedback, and a heat technology cooling system facilitating simple installation. IP 10 protection should be ensured for the control cabinet to meet its IP 20 protection class. The unit should be safeguarded from touch or water penetration, and ideally, the low-powered controller should be located furthest from the supply unit in a well-ventilated drive environment.
30 Day Warranty
Technical Specifications
