R911266828
Original price
$4,239.00
-
Original price
$4,239.00
Original price
$4,239.00
$4,239.00
-
$4,239.00
Current price
$4,239.00

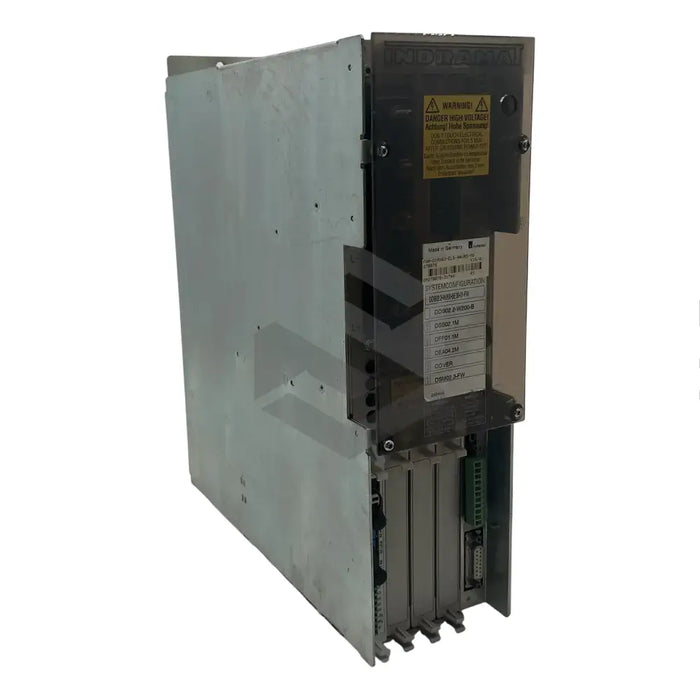

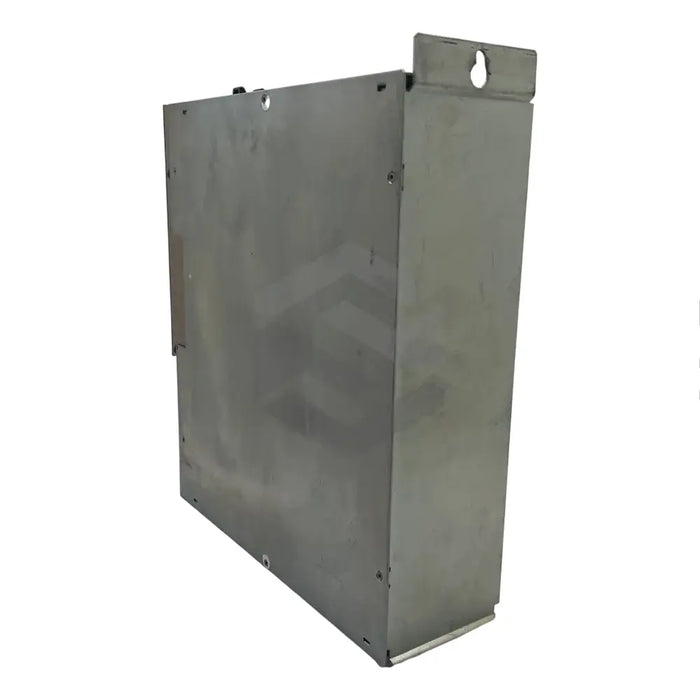

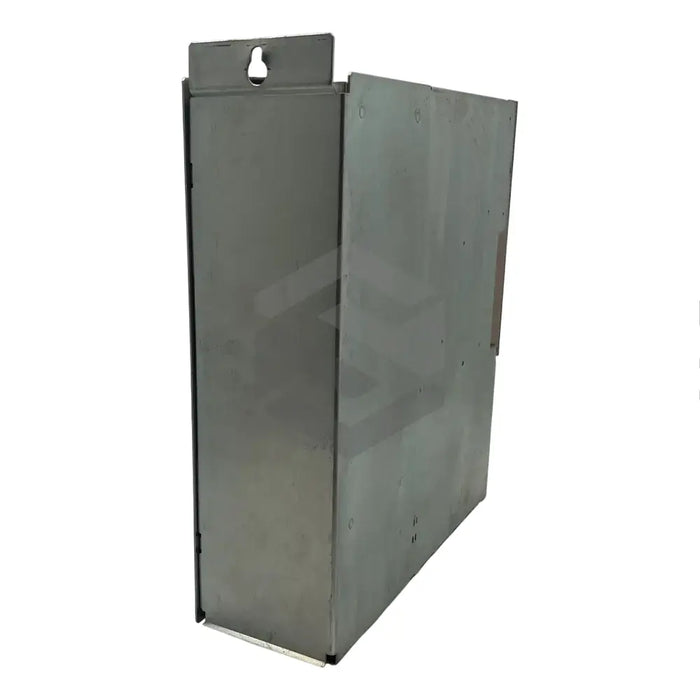

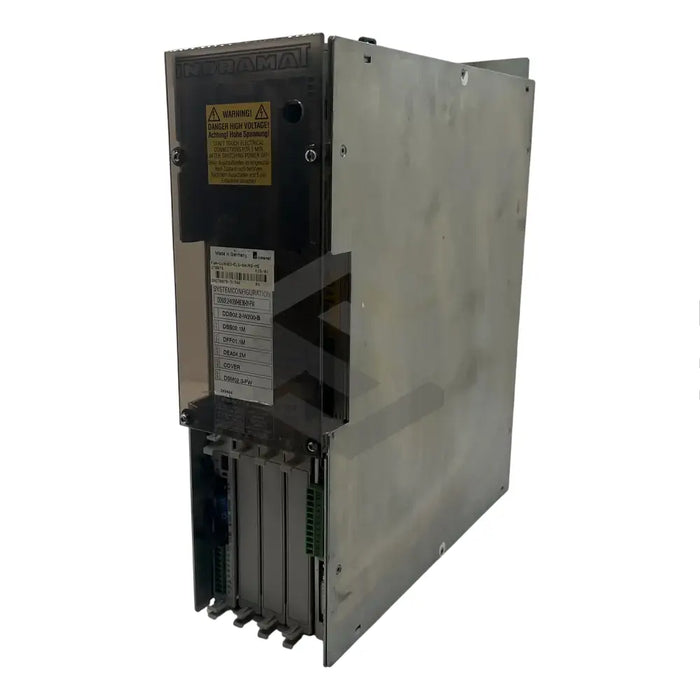

The R911266828 (DDS02.1-W025-RS01-02) is a DDS Drive Controller, produced by Bosch Rexroth Indramat. It is of Series 2, Version 1, possessing a functional ID of 01 with a version of 02. With its modular architectural design, the controller can integrate AC servo and primary drives, thus creating a compact drive package powered by a single supply unit. These controllers are typically affiliated with MDD, MLD and LAC AC motors, often seen in machine tools, packaging machinery, and printing machinery. The controller's digital drive components encompass the drive controller, servo motor and motor's power/feedback cables. The R911266828 (DDS02.1-W025-RS01-02) operates optimally at a rated current output of 25 Amps, and supports resolver-based motor feedback. Communication is facilitated via a SERCOS module.
The presence of a SERCOS module permits usage of the drive controller with SERCOS-equipped servo motors, consolidating control unit and drives in a fiber-optic ring topology. Its operating modes include torque loop, velocity loop and position loop. The R911266828 (DDS02.1-W025-RS01-02) also features an RS-232 interface for communication with VT100 terminals or PCs, a two-digit status display, and operates on a regulated 24 Volts DC supply unit. The air-cooled controller, with four plug-in module slots, a 105 mm width basic unit, and a front panel nameplate listing key specifications, should be installed by trained personnel for optimal functionality.
30 Day Warranty
Technical Specifications
