R911267086

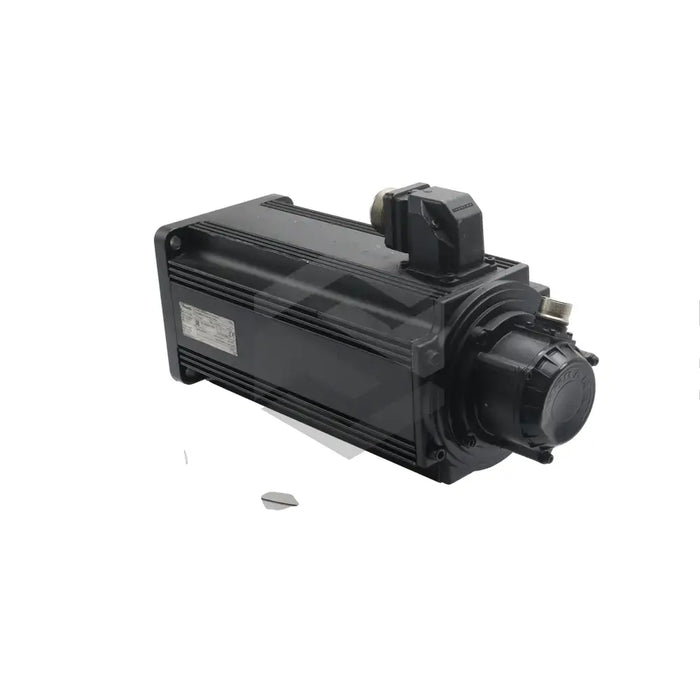

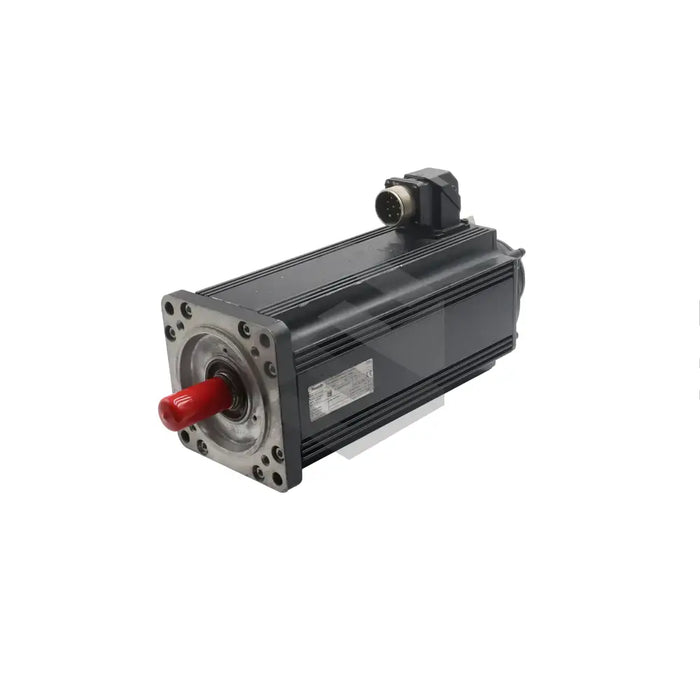

The R911267086 (MDD093C-N-030-N2L-110PA2) by Bosch Rexroth Indramat is a synchronous servo motor, renowned for speed synchronization with input current frequency. It is equipped with an accompanying Bosch controller which furnishes power and governs motor speed and position. Power connection to the motor, positioned at the housing's side A, is enabled via a dedicated cable. An essential add-on to the R911267086 (MDD093C-N-030-N2L-110PA2) is an encoder, a sensor that quantifies motor speed, position, and torque, sending real-time data to the controller.
Additionally, a separate feedback cable is employed by the motor for communication. Connectors for power and feedback cables are independent purchases. The R911267086 (MDD093C-N-030-N2L-110PA2) motor features a standard, convection cooling-friendly housing with an optional cooling fan for surface cooling. The motor has a DIN 6885-1 compliant shaft with a keyway for optimized torque transfer and motion prevention. It possesses a speed rating of 3000 RPM, a centering diameter of 110 millimeters, length of approximately 386 millimeters, and shaft diameter of 24 millimeters. The ideal size of the motor flange is 140 millimeters with each mounting hole having an 11 millimeter diameter. Furthermore, this motor boasts a holding torque of the blocking brake up to 22 Nm.
