R911267287

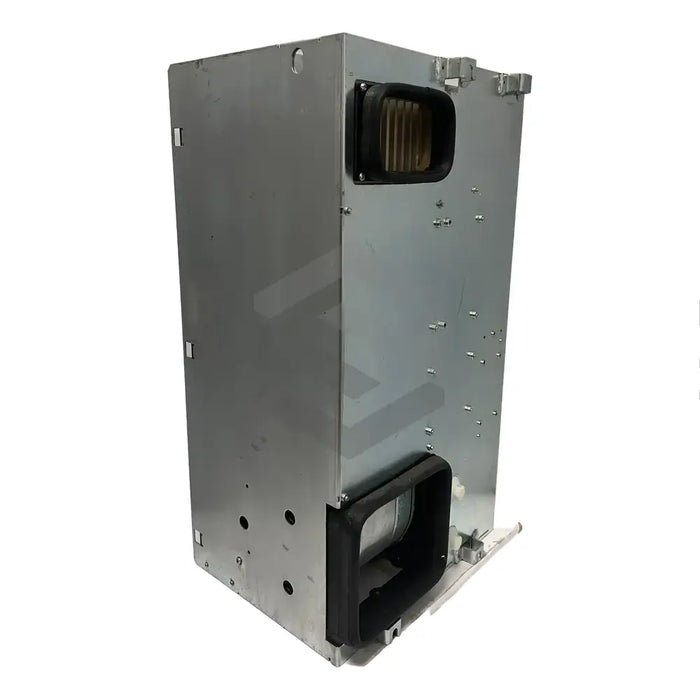

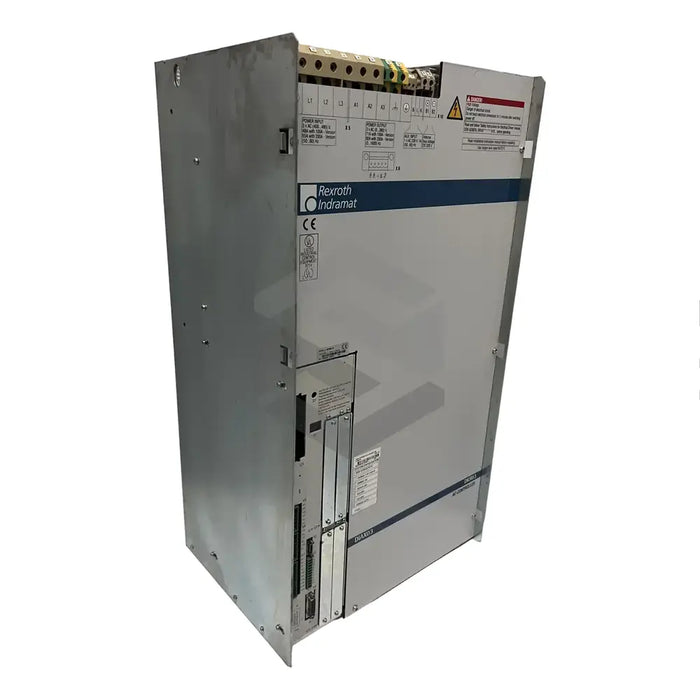

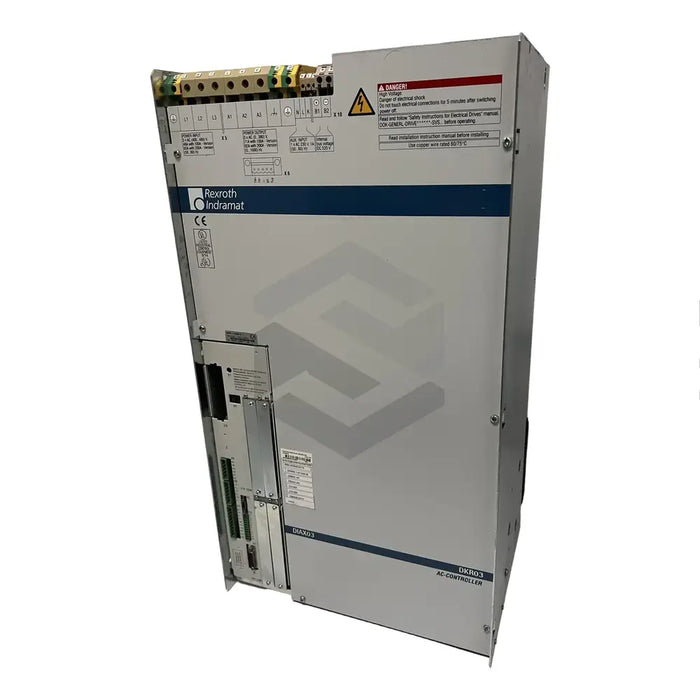

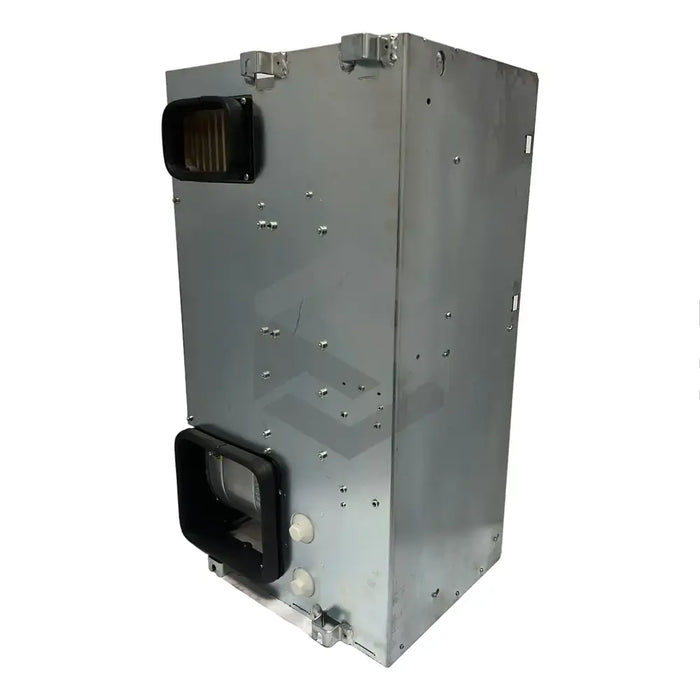

The Bosch Rexroth Indramat's R911267287 (DKR03.1-W200N-B) is a state-of-the-art servo drive, commonly applied in sectors such as printing machines or numerically controlled machine tools. Famed for its innovative cooling system, the drive incorporates a built-in heat sink and blower. Air is ducted through the system allowing for internal or external cabinet cooling. This unit is capable of operating up to 55ᵒC, however, optimal function is achieved between 5ᵒC and 45ᵒC. It also boasts protection from objects larger than 12.5mm and can be installed up to 1000m above sea level.
With a modular structure, the R911267287 (DKR03.1-W200N-B) can be customized through additional modules and plug-in cards specific to the user's needs. Promoting bidirectional data exchange, this drive utilizes digital I/O modules and can also incorporate an incremental measuring system. Power voltage ranges from 0V to 380V and a control power voltage of 200 VA, supporting a 50..60 Hz frequency. Regenerative braking and emergency shutdown are inbuilt, with the option to equip multi-turn absolute encoders for SSI signal output. The R911267287 (DKR03.1-W200N-B) is designed to operate on a 3-phase AC supply.
