R911267846

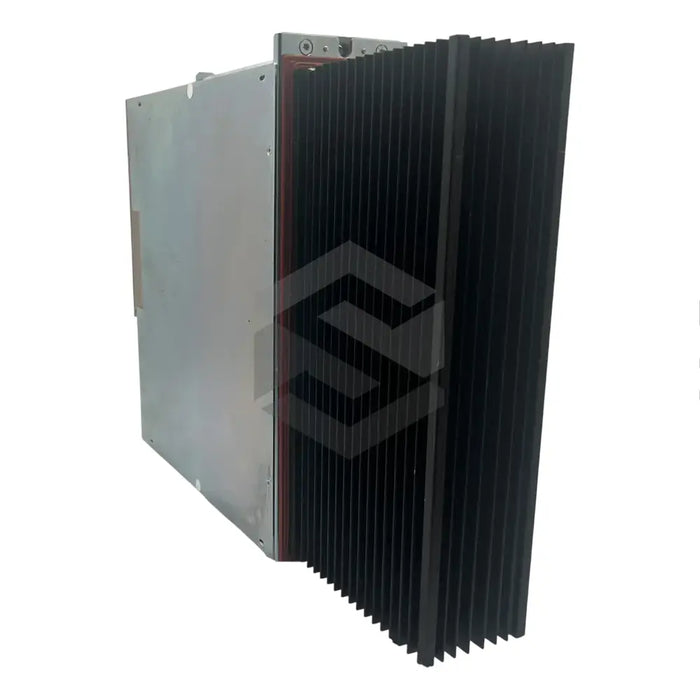

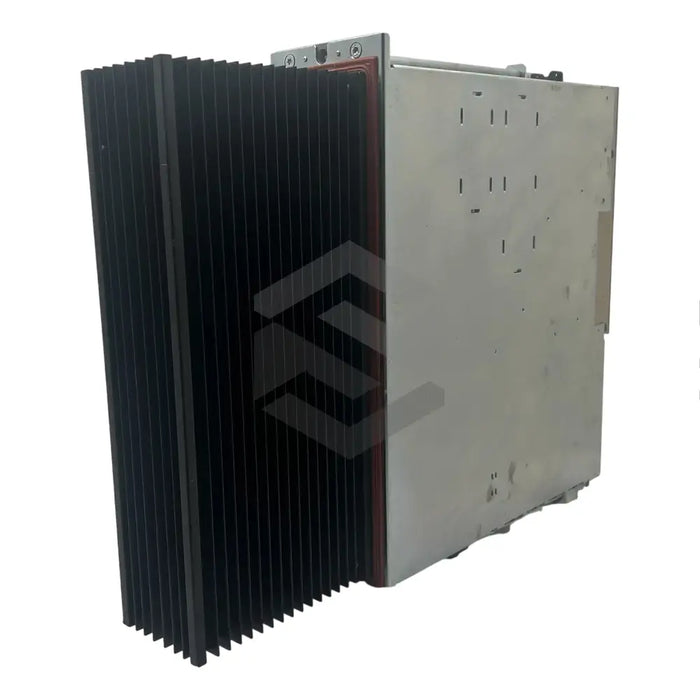

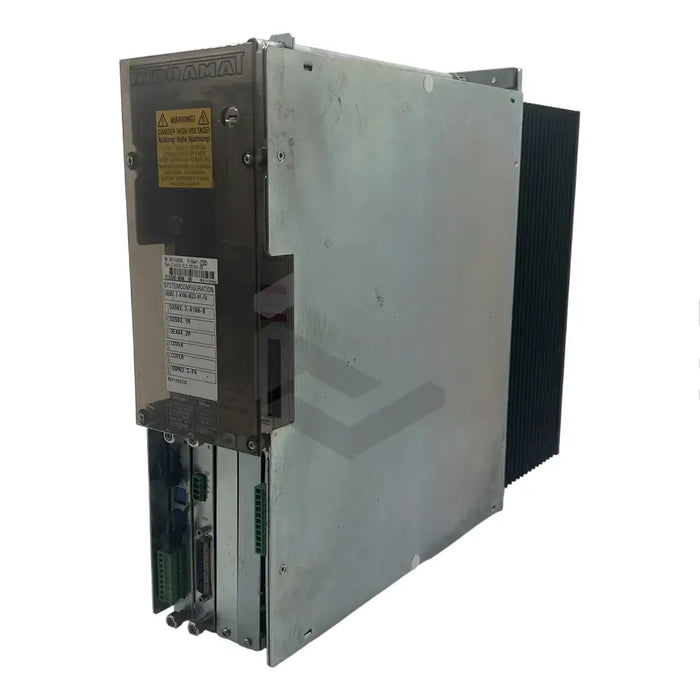

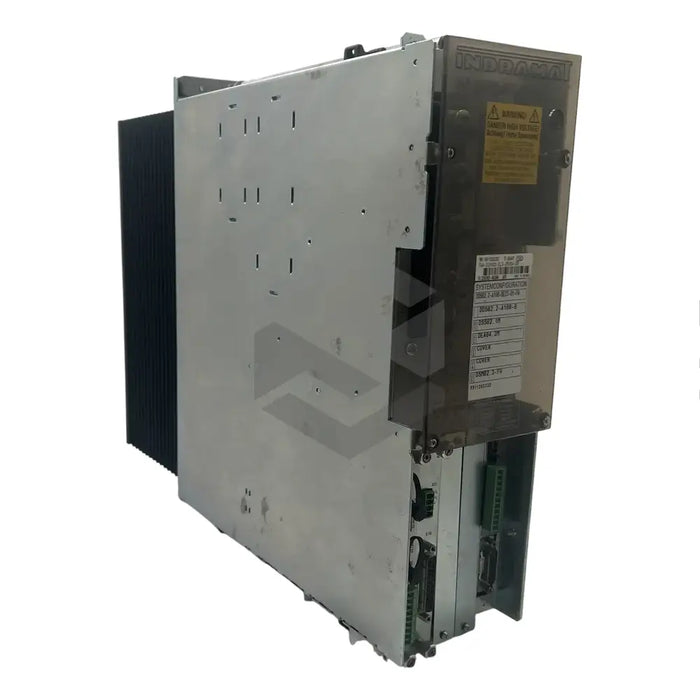

The R911267846 (DDS02.2-A100-BE45-01-FW) is a top-tier drive controller produced by Bosch Rexroth Indramat. The company is renowned for its drive controllers, brake resistors, inverters modules, brake choppers, and other industrial items. This specific model encompasses a resolver and a digital servo feedback motor engineered for accurate identification of the motor's velocity and position. The drive controller uses air cooling technology to sustain optimal temperature and features a primary SERCOS interface communication module.
These drive controllers are engineered to disperse the majority of their energy loss externally, rather than within the control cabinet, thus it is recommended that they are housed in an enclosed or compact container. This eliminates the need for expensive heat-exchange components. The R911267846 (DDS02.2-A100-BE45-01-FW) model has a 300-volt DC bus voltage, weighs 11 kilogrammes, and is rated IP20. The maximum absolute humidity that it can withstand is 25 g/m3 while the relative humidity is 95%. It can operate effectively in temperatures as high as 45 degrees Celsius, with a storage and transport temperature range between -30 and +85 degrees Celsius. The model has a continuous current capacity of 100 amps with a matching peak current. The unique combination of these features makes the model suitable for a variety of driving applications.
