R911268887

Original price $9,281.50 - Original price $9,281.50
Original price
$9,281.50
$9,281.50 - $9,281.50
Current price $9,281.50
In Stock, Ships Today
Request a quote

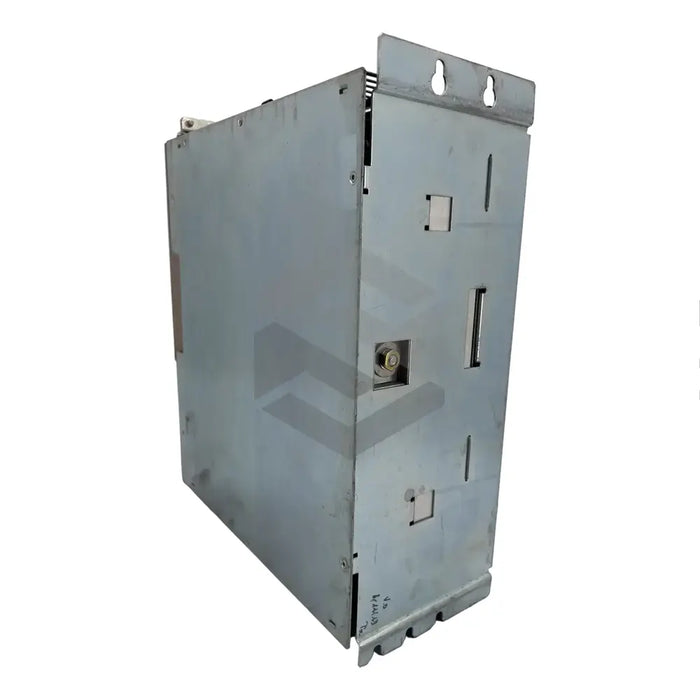

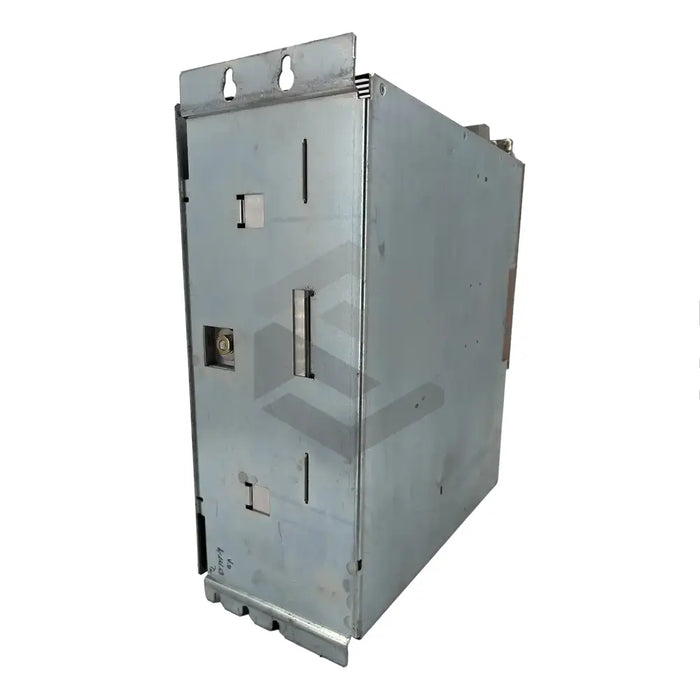

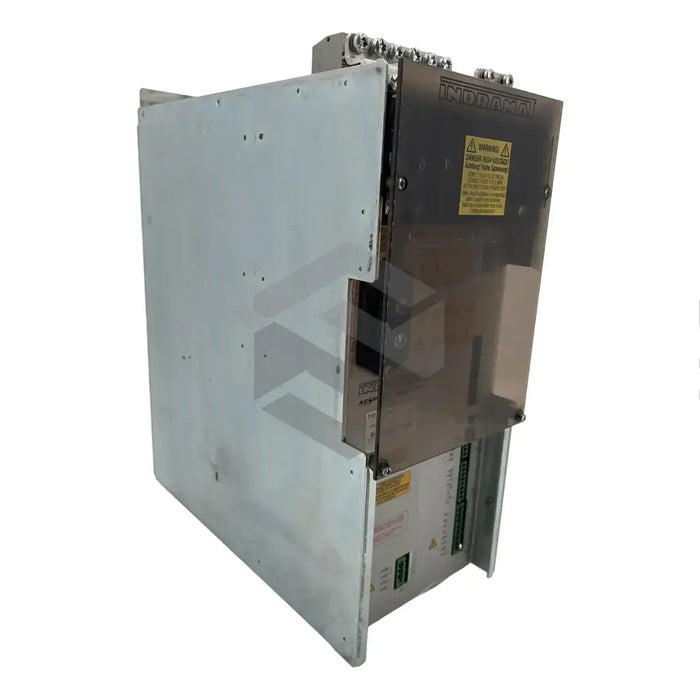

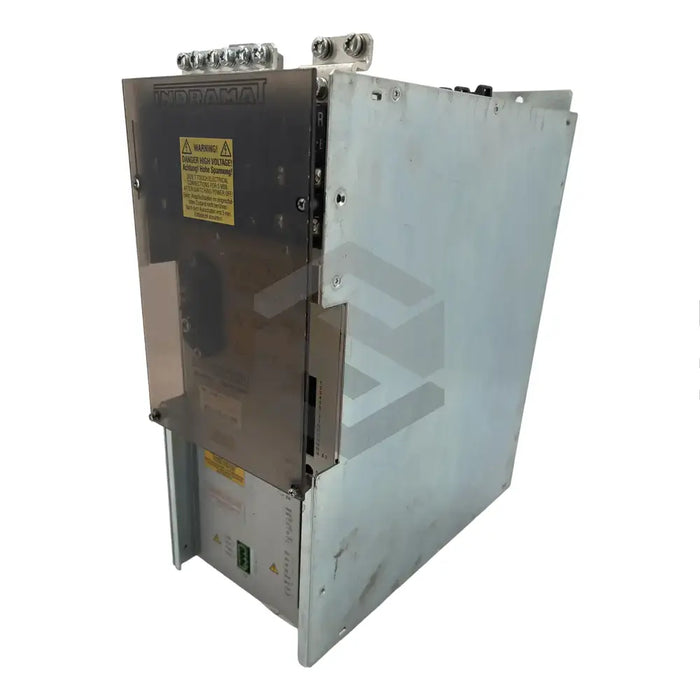

Bosch Rexroth Indramat's R911268887 (TVD 1.3-08-03) is a high-quality product from a reputable brand renowned for its reliable and innovative motion control components. The company's products, ranging from servo drives to main filters, are made by skilled professionals and thoroughly tested to ensure they exceed industry standards. The end result is a motion control item that is both innovative and robust, with considerable flexibility and unparalleled efficiency. The R911268887 (TVD 1.3-08-03) power supply module from Rexroth has key specifications including a frequency of 50-60Hz, an input voltage of 3x380 to 480 +/- 10% V and a DC bus voltage of 320 +/- 5% V. The module showcases a maximum DC power of 22.5 kW in a 0.3-second span, and a continuous DC power of 7.5 kW. The integrated bleeder carries a continuous power of 0.5 kW and a peak power of 20 kW. The power section can offer 20 kW in regenerated power and experiences a basic loss of approximately 75 W. Weighing just 10.5 kg, the module maintains an efficient power loss of 14 W per continuous DC power. It operates effectively between +5 and +45 degrees Celsius, and can handle transportation and storage conditions from -30 to +85 degrees Celsius. The maximum mounting height for this unit is set at 1000 MSL.
30 Day Warranty
Technical Specifications
  • Max Ambient Temp with Derated Data: 550C
  • Frequency: 50Hz to 60Hz
  • Power Loss per Continuous DC Power: 14 W
  • Input Voltage: 3 x 380 to 480 +/- 10% V
  • Max Regenerated Energy: 20 kWs
