R911269521

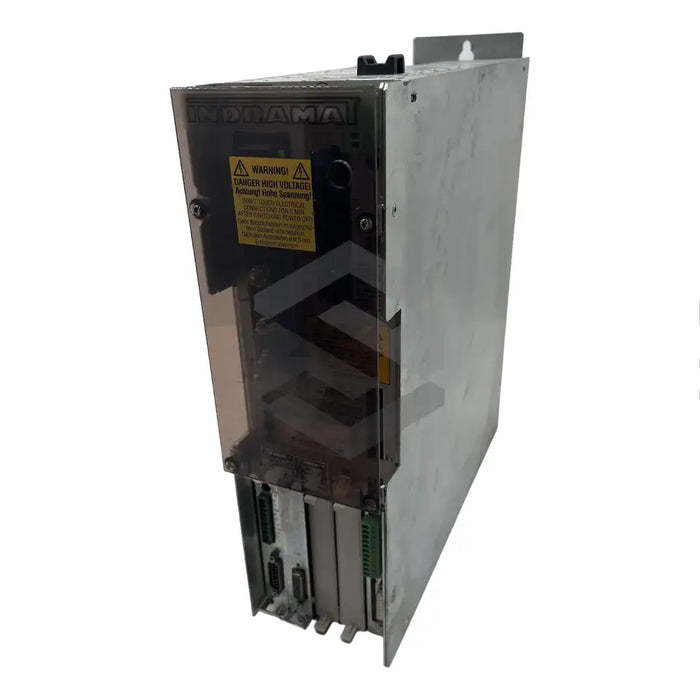

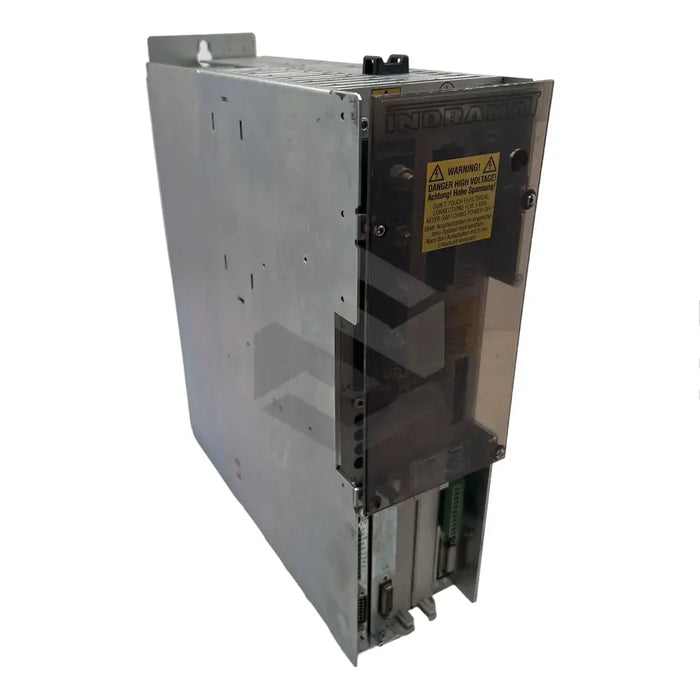

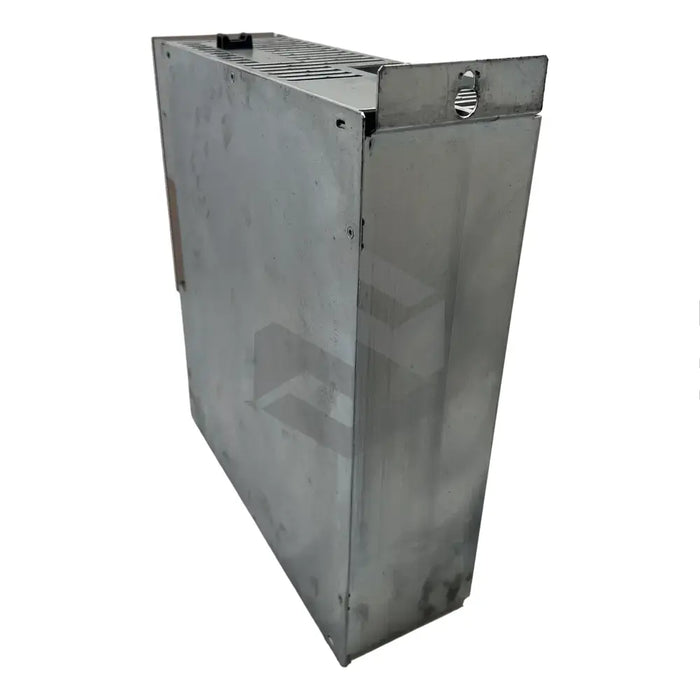

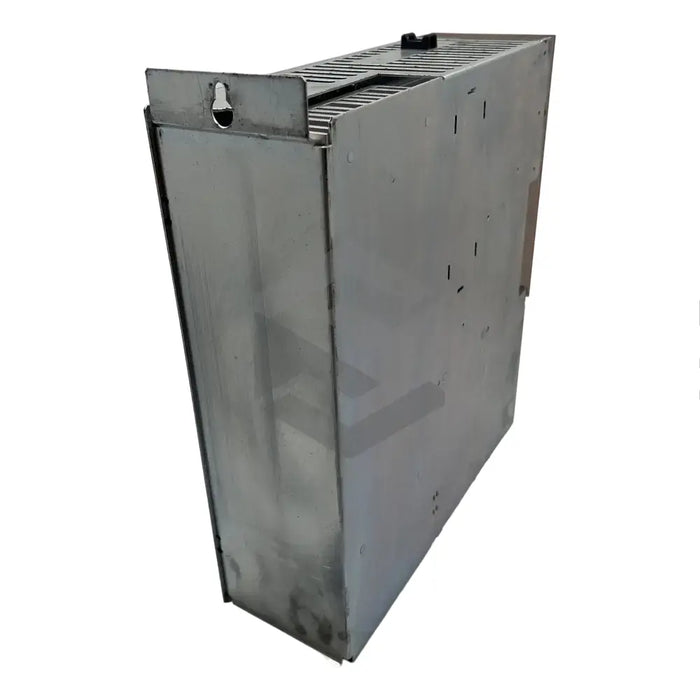

The R911269521 (DDS02.1-W200-DA06-01-FW), manufactured by Bosch Rexroth Indramat, is part of the DDS series of drive controllers, known for their ability to control and regulate electric motors. These dynamic drive controllers, when combined with specific elements from the MDD, MKD, LAR, and LAF motor series, form quick response drives; these are optimal for usage in fields like robotics, machine tools, printing and packaging machinery, textile machines, and handling machinery.
An integral part of the DDS drive system, the R911269521 (DDS02.1-W200-DA06-01-FW) showcases an ANALOG interface, empowering the operation of advanced AC servo drives. It features control entries and signal outputs that aid in communication with a linked control. A unique cooling method involving heat technology is employed, implementing heat dispersion within the control cabinet to maintain optimal performance. This necessitates a spacious control cabinet, ideally with air conditioning. It is crucial to note that the cabinet, providing lodgings for the drive controller and its supply unit, remains impervious to solid objects larger than 50mm. This product operates with a rated current of 200A, a DC bus voltage of 300V allowing for a variation of ±15%, and is compatible exclusively with servo motors supporting a digital servo feedback arrangement. The environmental parameters for successful operation of the drive controller sit within 0oC and 45oC and up to 1000m above sea level. There is a maximum relative air humidity of 95%. It's also important to note that the drive controller’s firmware must be separately ordered to enable its functions.
