R911270015

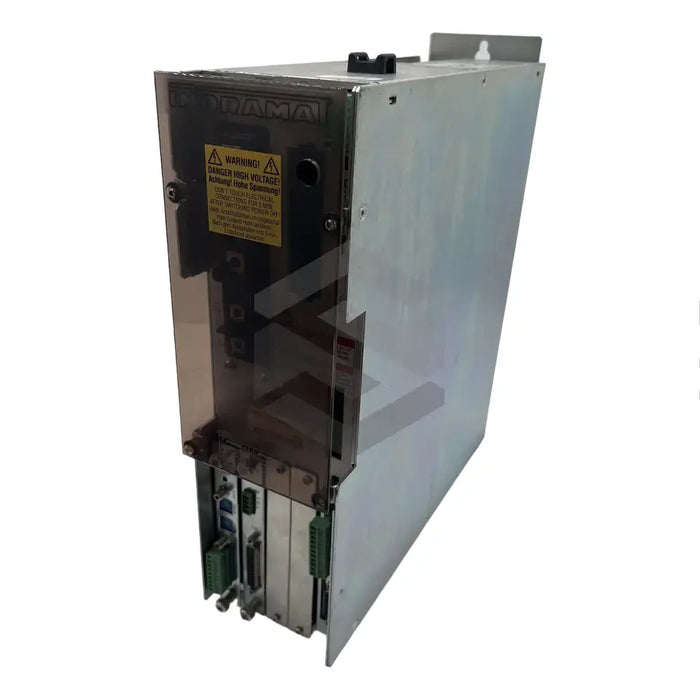

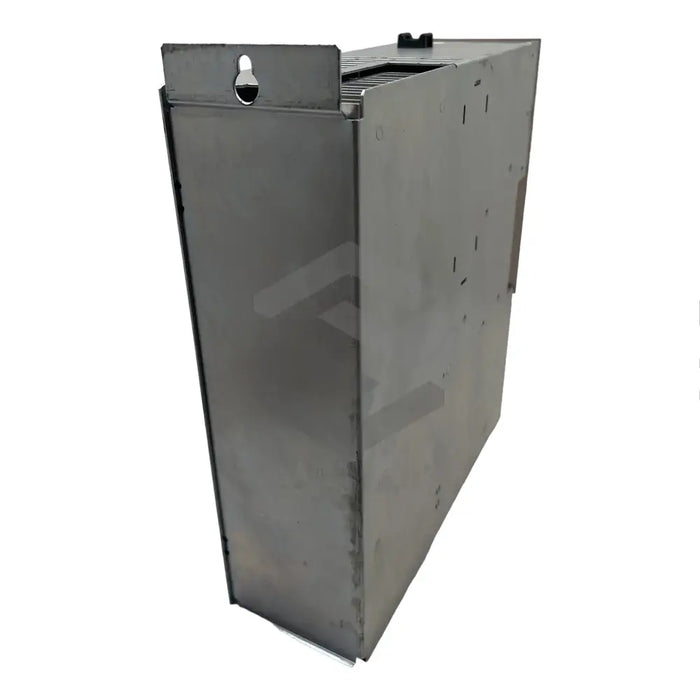

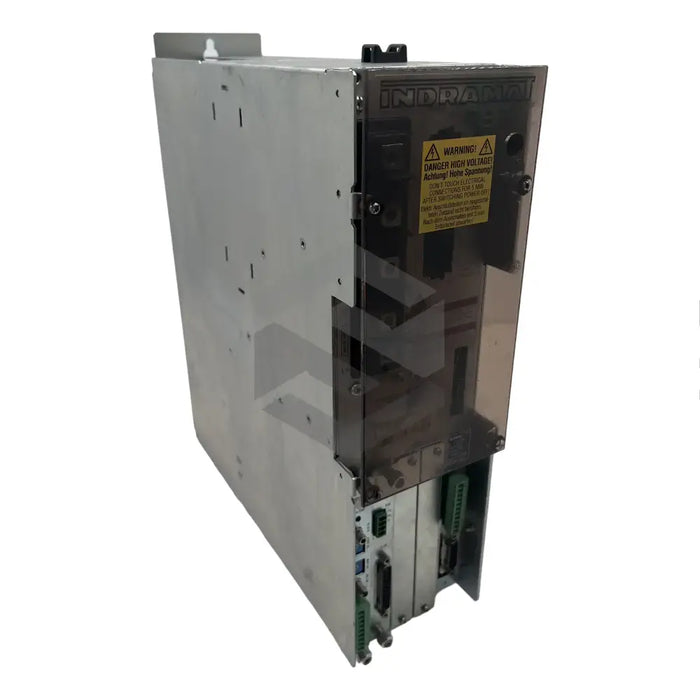

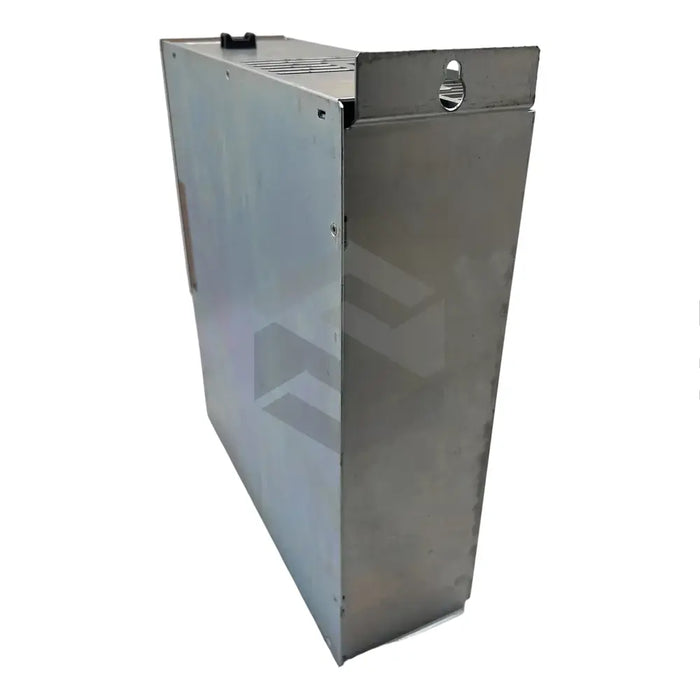

The R911270015 (DDS02.2-W100-BE45-01-FW) is a drive controller produced by Bosch Rexroth Indramat, designed for vertical mounting inside a control cabinet. Shielded by an IP 10 level of protection, it adheres to DIN 40 050 standards but does not include water penetration protection. The device, which features a line code of 2, measures 355mm in length and facilitates the connection of multiple controllers to an individual power supply. When installing, it is critical to route supply lines and signal lines separately to avoid interference, and adjacent units can be joined using conductor rails.
This controller is compatible with various AC motors, including the MDD, 1MB, and LAF series. It integrates with the respective motor via a Bosch Rexroth power cable that caters to the motor power connection, protective conductor connection, and temperature monitoring. Identified by its X1 and X4 connectors, the R911270015 (DDS02.2-W100-BE45-01-FW) model is furnished with a rating plate on its front panel and includes a backup support period of one year. However, note that operation with an unregulated TVM 1.2 supply unit should be avoided. To ensure safety and optimal performance, it is paramount to handle, store, assemble, and install the unit correctly, maintaining a permanent earth wire connection following the provided diagram. This device can be shipped globally upon request.
