R911271071

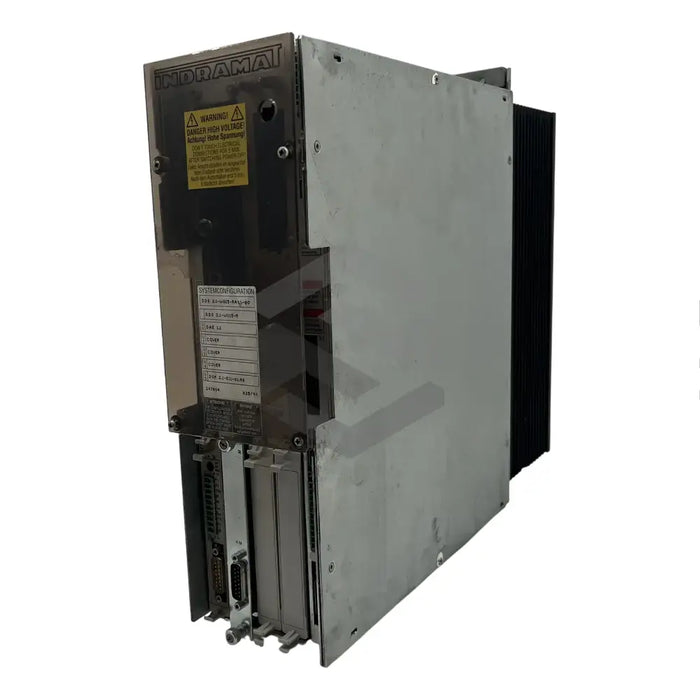

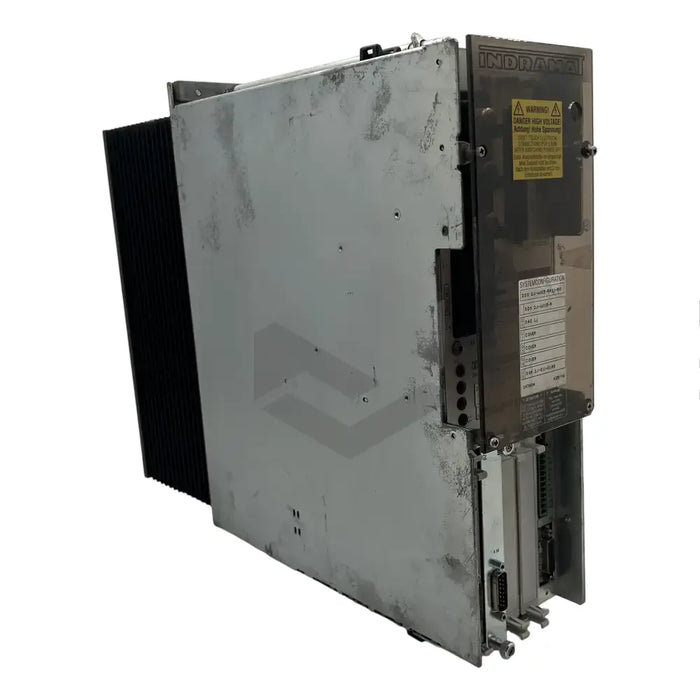

The R911271071 (DDS02.1-A150-DA07-02-FW), a modular control device produced by Bosch Rexroth Indramat, is designed specifically for integration into modern industrial production structures. This drive controller connects various industrial servo motors and AC main drives into one space-saving unit that employs a single power supply module. The device's safety and environmental friendliness is assured by its lack of silicon and asbestos. Incorporated into the R911271071 (DDS02.1-A150-DA07-02-FW)'s design are multiple configuration modules that sit in slots U1 to U5 in the casing.

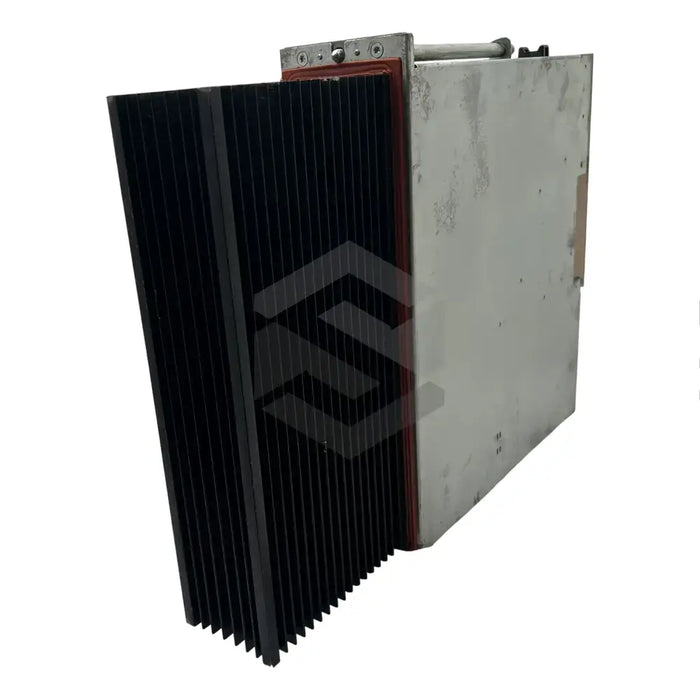

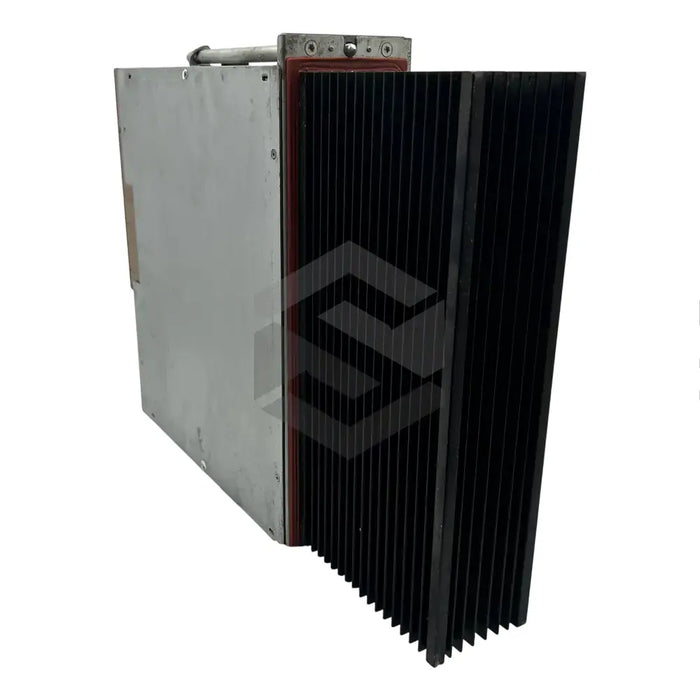

Managing the heat production within the housing unit of this drive controller is made possible through forced ventilation. To enable effective temperature control, the unit should be suitably placed to allow for optimal air flow. The R911271071 (DDS02.1-A150-DA07-02-FW) typically uses a maximum input current of 150 amperes under normal conditions and weighs approximately 11 kg. Its housing adheres to the IP10 protection standard, safeguarding internal components from larger foreign solid particles. However, additional external controls that satisfy the IP54 protection category should be used to protect the device from liquids and smaller particles. Note that the R911271071 (DDS02.1-A150-DA07-02-FW) drive controller does not come with a software module, this must be ordered separately based on the intended industrial application.
