R911272414

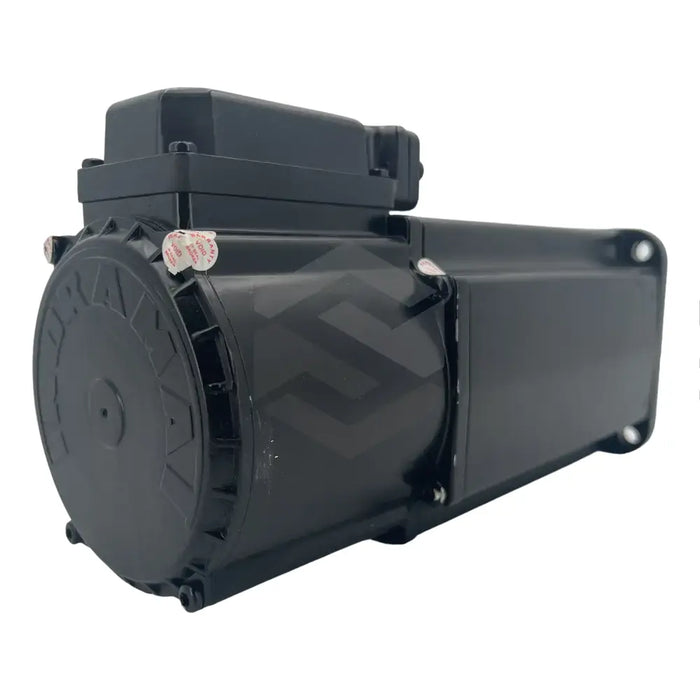

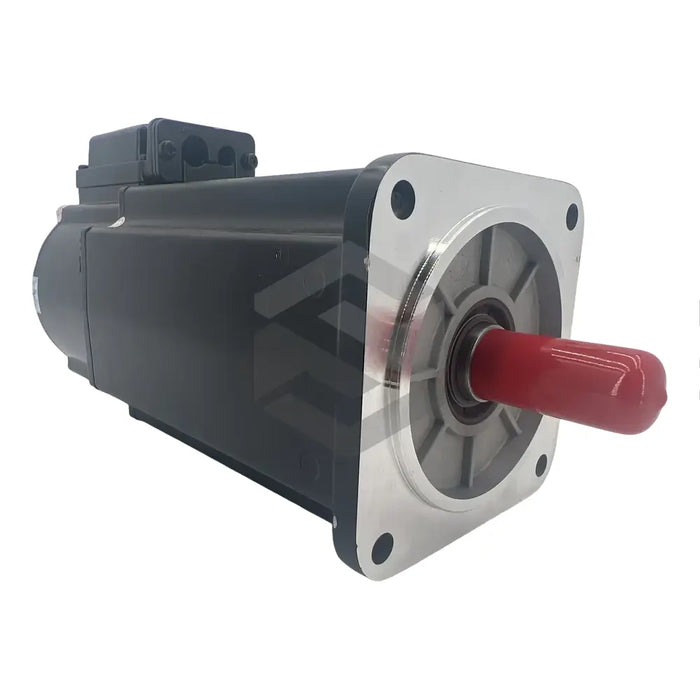

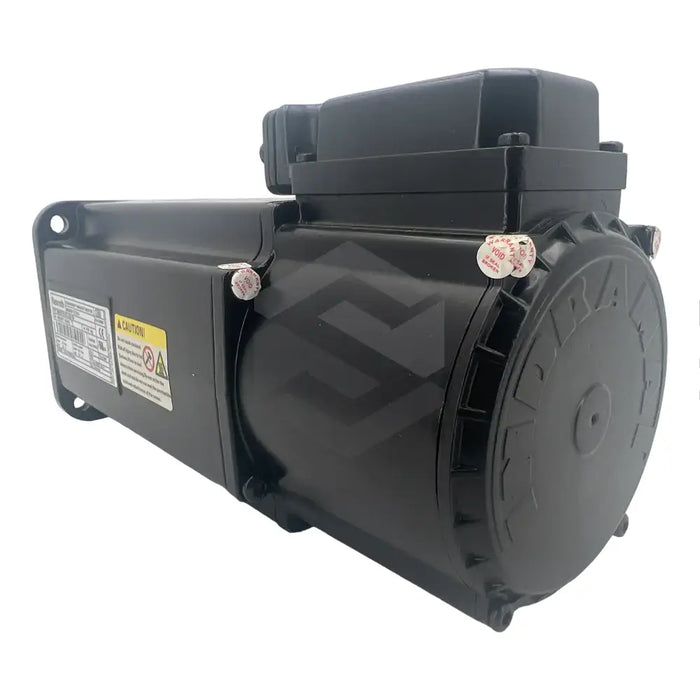

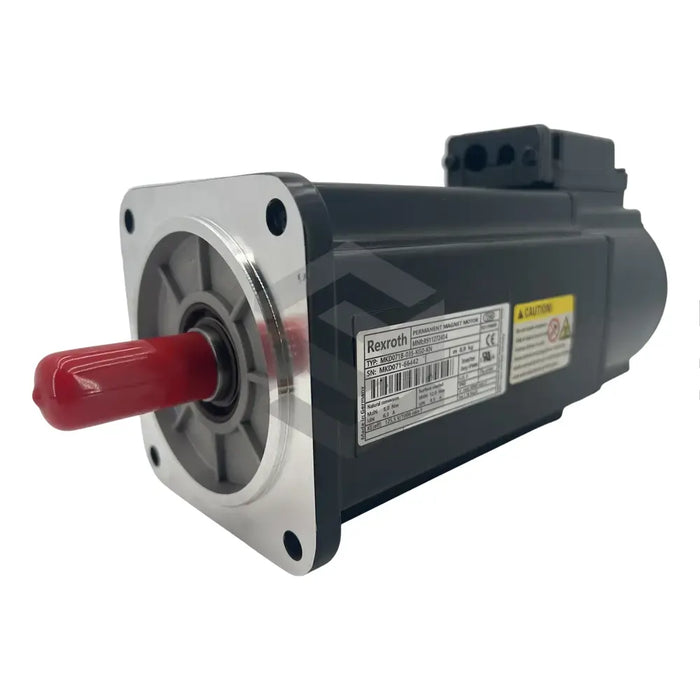

The R911272414 (MKD071B-035-KG0-KN) is a MKD-type motor produced by Bosch Rexroth Indramat. Noted for its robustness, versatility and longevity, the product serves as a suitable option for a variety of applications. Presented in a standard housing, this motor features a rear-coupled junction box for power connection. It operates optimally within 0-45 Celcius ambient temperature. The motor is designed in the MKD071B frame size/length with a flange size of 115mm and centering diameter of 95mm. It renders a continuous torque at standstill of 8 Nm, and a consistent torque of 5.2 Nm under loading conditions with a rated speed of 2500min-1, thanks to its '035' winding code.
This motor's precision in positional feedback is ensured through a resolver feedback affiliated with an integrated absolute encoder. Including a plain shaft and free of holding brake, the model boasts of an efficient heat dissipation system. It utilizes cooling ribs for natural convection, protecting the unit from overheating and safeguarding the 30,000-hour life expectancy of its bearings. If the motor surpasses its temperature threshold, it features an automatic switch-off mechanism for protection. The R911272414 (MKD071B-035-KG0-KN), as with all MKD-type motors, features a brushless design and comes with pre-lubricated bearings, promising a maintenance-free functioning.
