R911272519

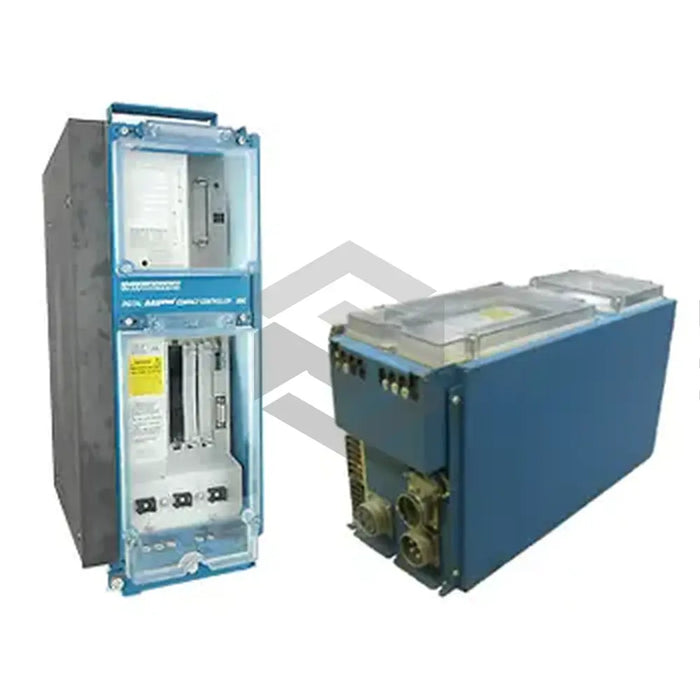

The R911272519 (DDC01.2-N100A-DL40-01-FW) is a drive controller manufactured by Bosch Rexroth Indramat, enclosed in an IP 65 rated housing that can be directly installed on the feeding equipment to avoid long cable deployment. The controller weighs approximately 22 kg and its dimensions are 517 x 165 x 298 mm. It has a configuration rating plate at the front, right by the software module slot. The software module can be replicated for drives of a similar configuration or transferred to a replacement drive if necessary. Added to this, there's a fault reset key and status display by the software module slot. Other front panel features include four slots for the command module and plugin modules, a RS-232 interface, analog inputs/outputs, and a motor feedback connection interface.
The drive controller comes with a single-axis command communication module for positioning control, and it supports integrated motor feedback. It has standard noise emission rating and can be directly connected to an AC power source of 220 / 230 Volts AC or an isolated transformer for protection. The controller's peak and continuous output current ratings are 100 Amps and 35 Amps respectively; and can handle peak and continuous mechanical loads of 17 kilowatts and 6 kilowatts correspondingly. It operates optimally within a temperature range of 5 to 45 degrees Celsius, with a peak permissible ambient temperature of 55 degrees for derated specifications.
