R911272643
Original price
$8,906.91
-
Original price
$8,906.91
Original price
$8,906.91
$8,906.91
-
$8,906.91
Current price
$8,906.91

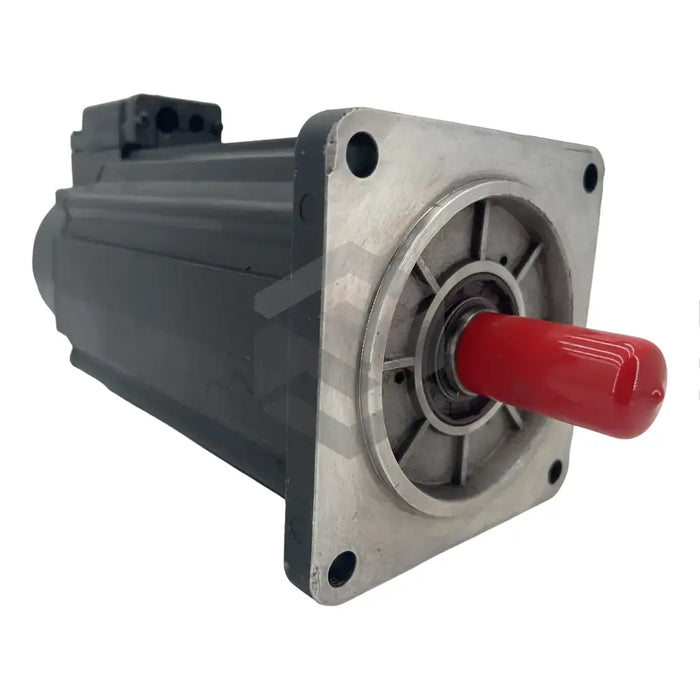

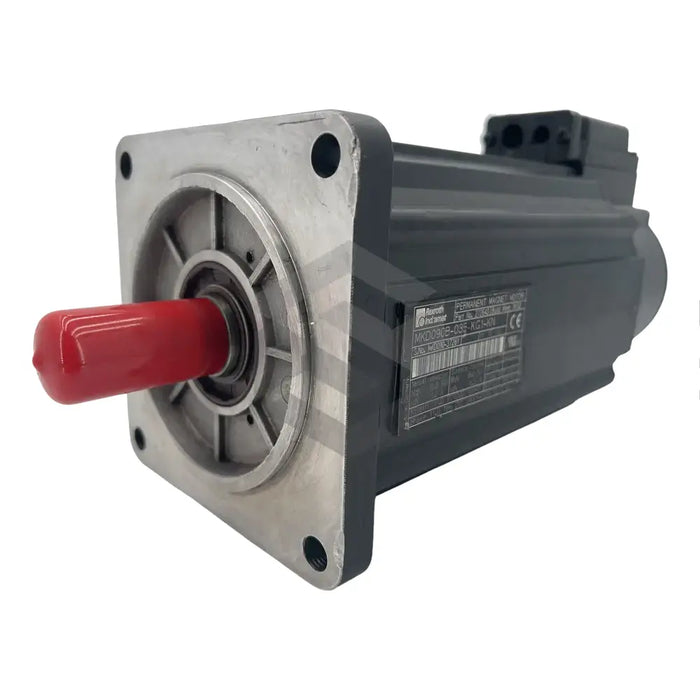

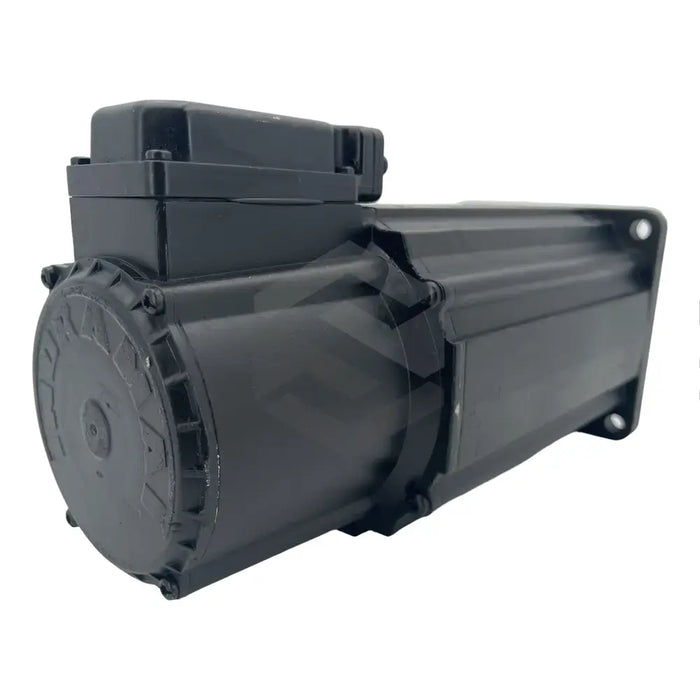

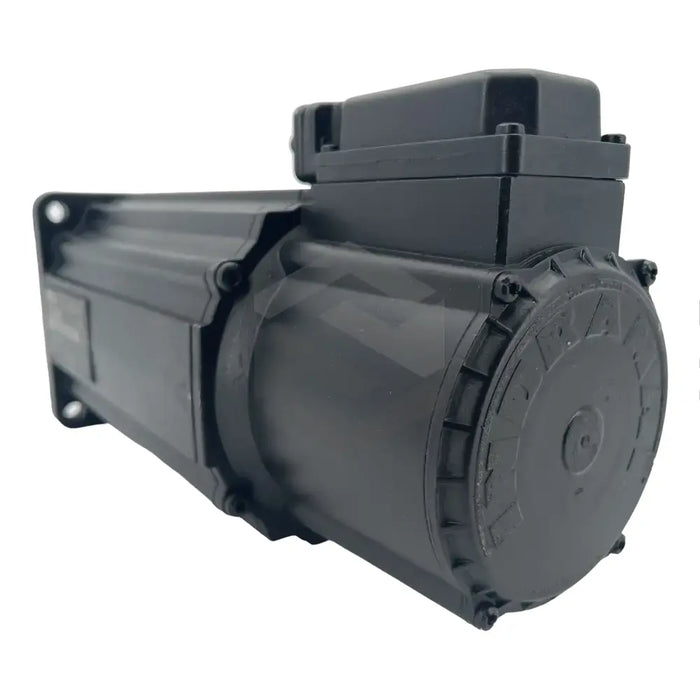

The Bosch Rexroth Indramat R911272643 (MKD090B-035-KG1-KN) is a high-quality synchronous motor designed primarily for use within mechanical, electrical, and engineering environments. Leveraging advanced technology, the motor boasts optimized electromagnetic functionality, effectively reducing torque ripple. This helps maintain a steady path velocity and enhances the quality of the product. The motor is lightweight at 14 kg, and has a rated speed of 3000 min-1 and can reach maximum speeds up to 5000 min-1. Notably, it has a winding resistance of 1, 88 Ω and a winding inductance of 15, 5 mH across its 4 pole pairs, therefore minimizing internal losses.
Regarding environmental adaptability, the R911272643 (MKD090B-035-KG1-KN) can be safely stored and transported between temperatures of -20 to +80 degrees Celsius, and operates effectively between 0 to 40 degrees Celsius. It falls under insulation class F as per DIN VDE 0530 part 1 standards, and features a prime black housing in accordance with RAL 9005, providing the encoder and power cables are properly mounted. With a rated frequency and peak current of 2000 Hz and 49, 5 A respectively, it delivers maximum torque of 43, 4 Nm. Important specifications include a voltage constant of 111V/1000 min-1 and a torque constant of 1, 22 Nm/A. Operating data might require adjustment if these specified limits are exceeded.
30 Day Warranty
Technical Specifications
Get In Contact
Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products, all warranties are with Servo Supplier and not the manufacturer.
