R911273260

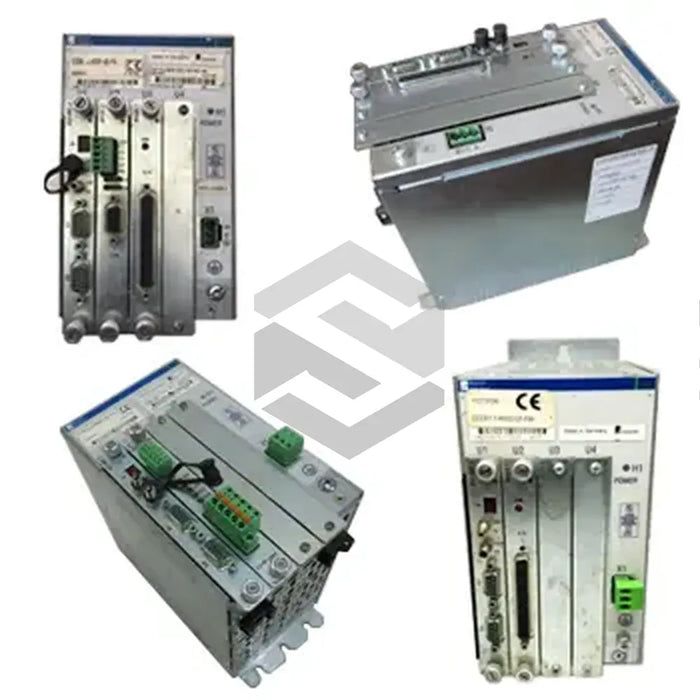

The R911273260 (CCD01.1-KE11-01-FW) is a box terminal produced by Bosch Rexroth Indramat. It is part of the manufacturer's versatile CCD product line and commonly paired with motion controllers from the same maker. The unit has four slots for option cards that are inserted through a simple plug-in procedure. Furthermore, it relies on custom firmware developed by the manufacturer. This device allows cross-communication via a SERCOS III interface and is equipped with dual RJ 45 connectors, each featuring a green and yellow LED indicator.
The terminal's connectors each have eight pins, with only four being utilized. The first two pins on each connector serve as differential outputs A and B for transmitting 10/100 Base-T signals, while the third and sixth pins function as differential inputs A and B for receiving these signals. The interface supports 10 Base-T signals and 100 Base-T signals conforming to IEEE 802.3i and IEEE 802.3u standards respectively. The firmware needed for operation must be ordered separately from the manufacturer. The terminal features a housing that provides a shield connection. Its LEDs indicate network connection and data transmission. Weighing only 2.4kg and with dimensions of 21 x 11 x 19 cm, this lightweight and compact box terminal is easily portable.
