R911273462

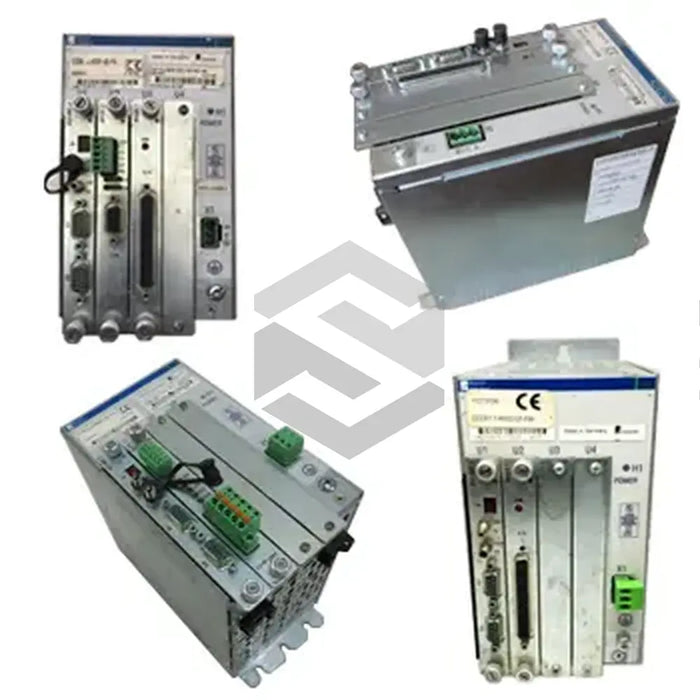

The R911273462 (CCD01.1-KE00-01) box terminal, manufactured by Bosch Rexroth Indramat, is a specialized component designed to connect option cards. Included in the manufacturer's CCD series, the terminal features a four-slot rack assembly and operates with a 24V COMM input. Connectivity is facilitated by the SERCOS III interface, aligning with IEE 802.3 standards, and two RJ 45 type connectors found in the advanced control section. Each connector houses eight pins, comprising two differential outputs and two differential inputs. It is crucial to utilize a cable compatible with CAT 5 specifications for this connection.
Notable product details include differential inputs and outputs associated with pins 3 and 6, and pins 1 and 2 respectively. The interface follows 10 Base-T and 100 Base-T Ethernet standards as per IEEE 802.3i and IEEE 802.3u specifications. The terminal is equipped with two yellow (H10 and H12) and two green (H11 and H13) LEDs, signifying data transmission status and network link connection respectively. The product weighs 2.8kg and its dimensions are 10.5 x 19 x 21 cm (L x W x H). An H1 LED is incorporated to indicate power status. The superior product quality and performance align with Bosch Rexroth's industry reputation.
