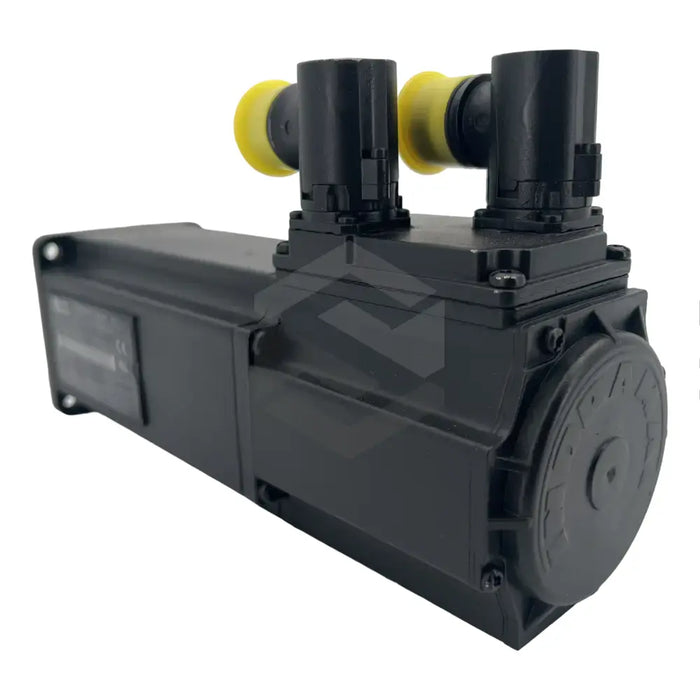

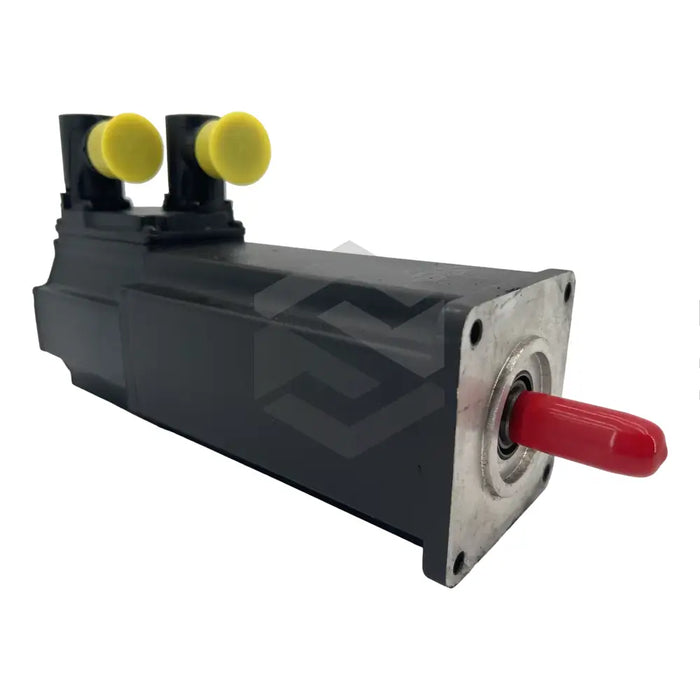

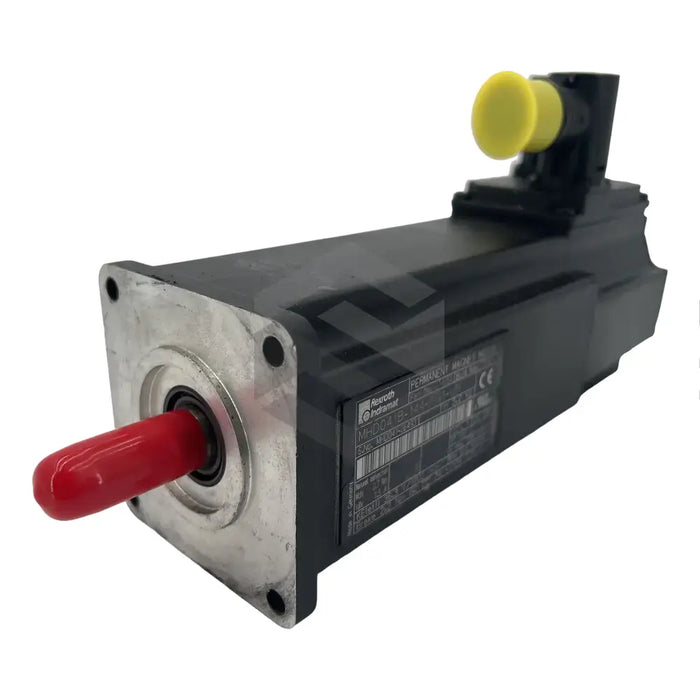

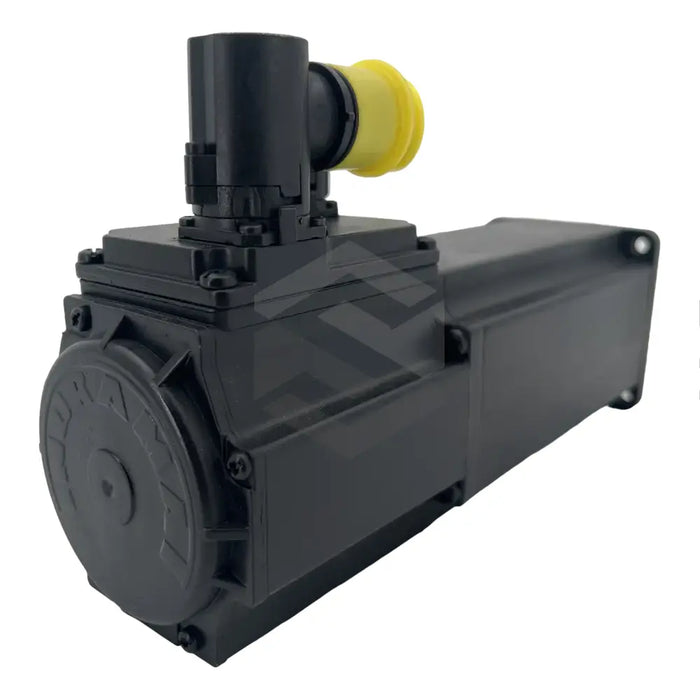

R911274054
Produced by Bosch Rexroth Indramat, the R911274054 (MHD041B-144-PG1-UN) is an AC servo motor made to serve as the primary drive in various mechanical operations. Designed for use in machines employed for tasks such as tooling, paper processing, printing, and packaging, the motor's versatility is amplified by the potential to be adapted with supplemental actuators and sensors.
The R911274054 (MHD041B-144-PG1-UN) motor provides a practical solution for system automation. To ensure efficacious performance, its corresponding drive controllers must be adequately programmed before utilization. The motor prides itself on its dependability and nearly maintenance-free operation courtsey of its brushless design and lubrication with grease. It also comes with completely enclosed protection signified by its IP 65 rating. Additional protection is provided through an in-built temperature monitoring system, thereby avoiding overloads. The device showcases a high degree of dynamism due to its impressive torque-to-inertia mass ratio and commendable overloading capability, which in turn is due to its excellent heat-dissipation features. It has a constant peak torque across varying speeds thanks to its electronic commutation, and it's capable of continual start-stop operations even at high repetition frequencies. The R911274054 (MHD041B-144-PG1-UN) is designed for seamless attachment to machinery, demonstrated by its mounting pinons and direct overhung mounting via belt pulleys.
