R911274169

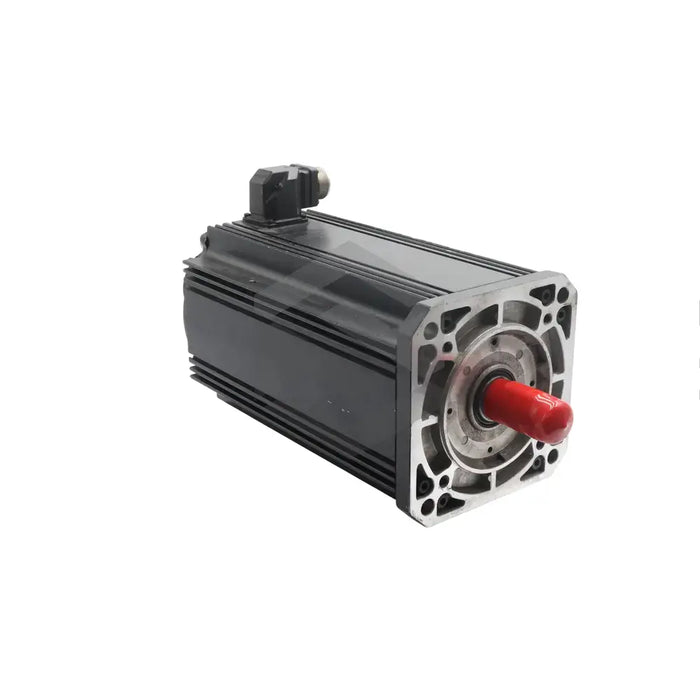

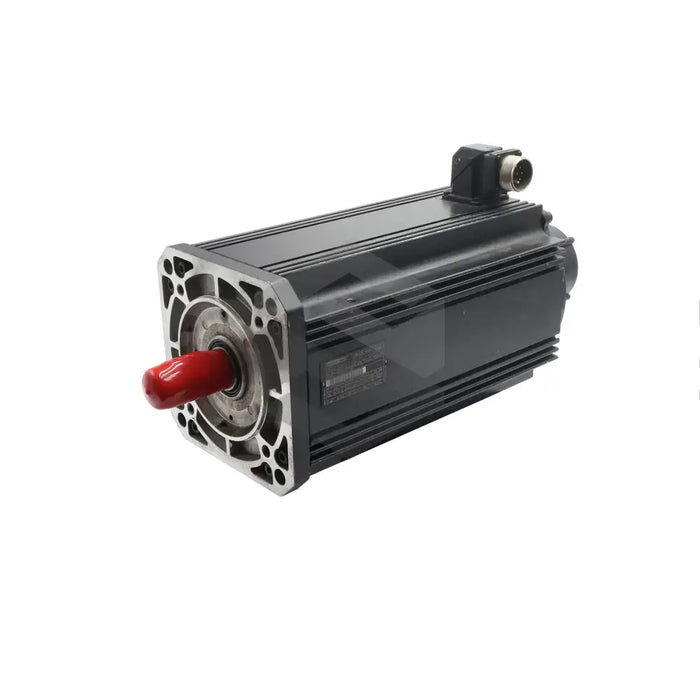

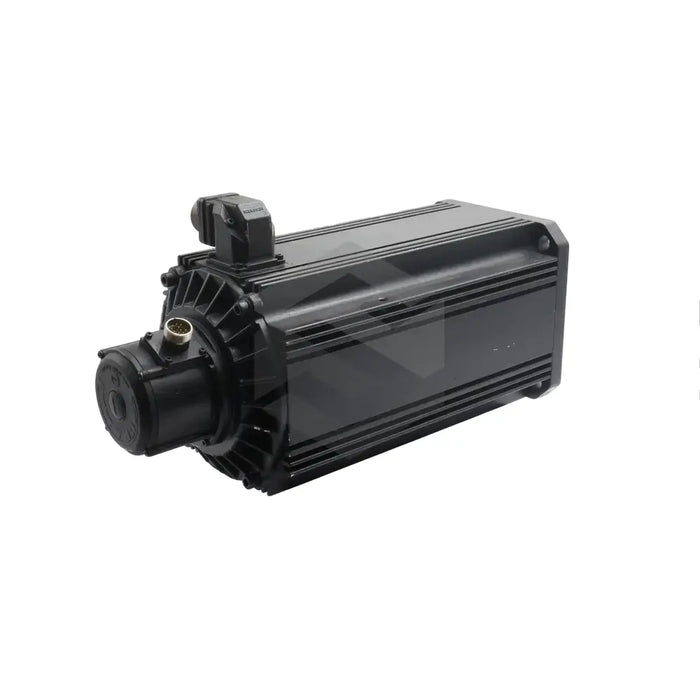

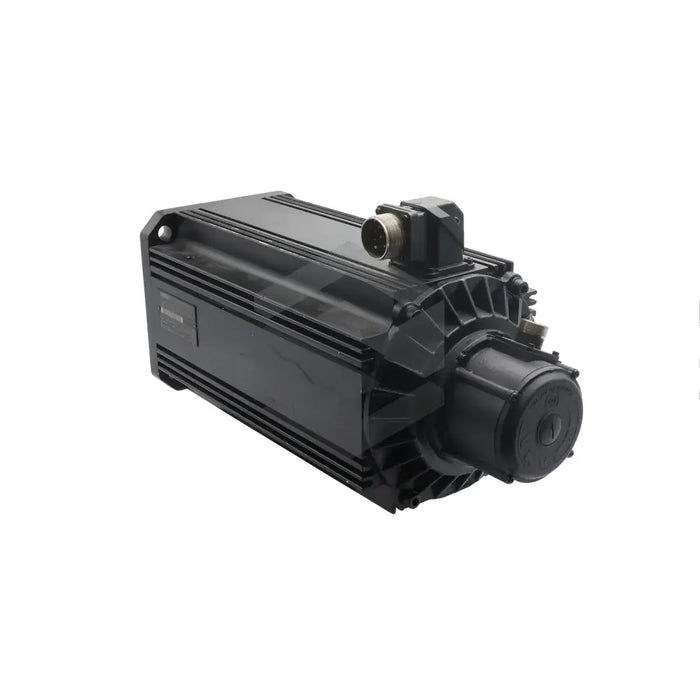

Bosch Rexroth Indramat's R911274169 (MDD112C-N-020-N2L-130PL0) is a digital AC servomotor specifically designed for applications that demand high-precision and synchronization. Renowned for its top-performing capability, the motor can be deployed even under sub-optimal environmental conditions. This unit, characterized by a size code of 112, features independent flange sockets, enabling direct connection of the motor feedback and power cables. An important caveat is that this servomotor needs a drive controller to operate.
This robust and versatile motor is built to operate between 0°C and 40°C temperatures and offers effective protection against water intrusion. Operable in stationary mode, it aligns with the weatherproofed conditions specifications of IEC 721-3-3. The motor relies on a natural convection cooling mode, with a thermal time constant of 100 minutes. Its housing's paint layer has a maximum thickness of 40µm. The motor incorporates a B05 flange mount, featuring through holes having a 130mm pilot diameter, and provides one-year support. It's worth highlighting that the device doesn't include a blocking brake. The servomotor comes with a plain output shaft designed for non-positive and backlash-free torque transmission, and is equipped with shaft sealing to prevent liquid penetration. In addition, it affects a floating bearing on the A side and a fixed bearing on the B side.
