R911274568
Original price
$4,728.00
-
Original price
$4,728.00
Original price
$4,728.00
$4,728.00
-
$4,728.00
Current price
$4,728.00

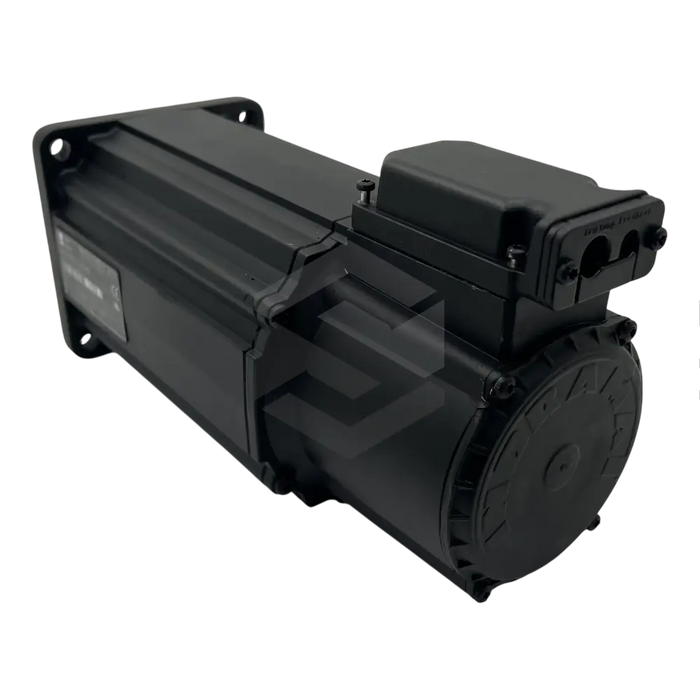

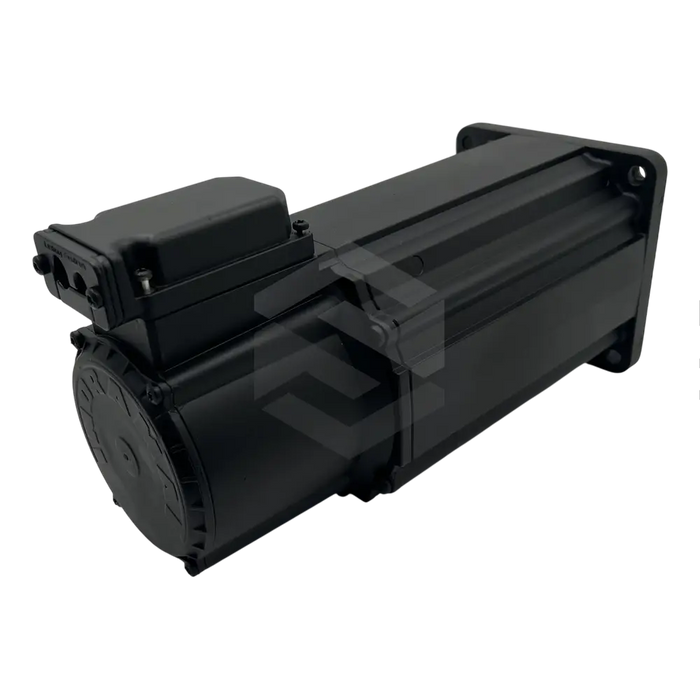

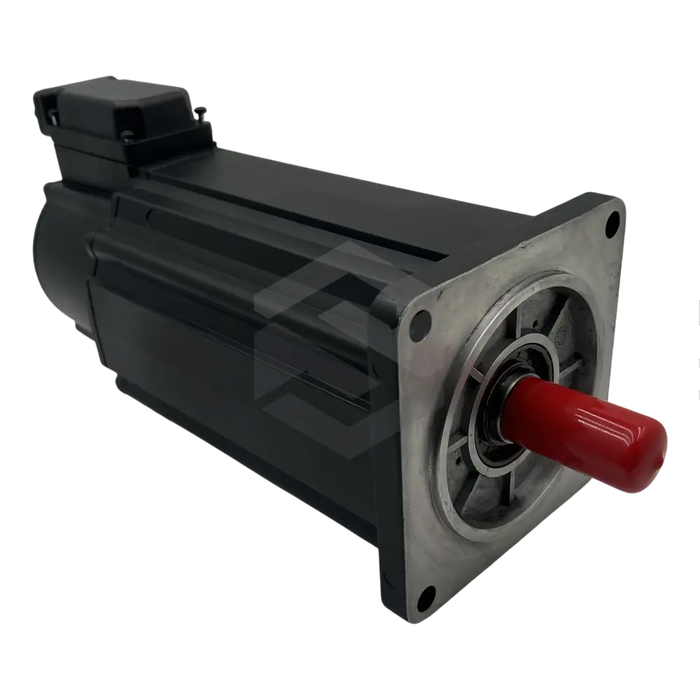

Constructed by Indramat Bosch Rexroth, the R911274568 (MKD090B-035-GG0-KN) is a top-tier Digital Servo Motor designed to operatively connect with Rexroth Indramat controllers. Equipped with a rated nominal speed of 3000 RPM, the servo motor yields a substantial standstill torque of 12.0 Nm under natural cooling and 18 Nm with surface cooling. The motor employs a peak current of around 49.5 amperes under peak load conditions, with the current required for maximum torque ranging from 11.0 to 16.5 amperes depending on the cooling method applied. The winding resistance of the motor typically sits at around 1.90 ohms at 20ºC.
The R911274568 (MKD090B-035-GG0-KN) Digital Servo Motor is constructed with elite F class insulation and integrates winding temperature sensors that cater to the standards set for IP65 rated devices. The motor's inbuilt feedback systems contribute to its suitability for tasks demanding high precision and swift control. In addition to being designed with a plain shaft enclosed by a sealed ring, the motor affords a large termination box enabling access to all connections. The R911274568 (MKD090B-035-GG0-KN) comes with a pair of lubricated bearings and maintains a brushless design which aids its maintenance-free operation. Overload and over-temperature protections can be configured for added safety and holding brakes can also be installed for enhanced security.
30 Day Warranty
Technical Specifications
