R911275741
Original price
$4,212.73
-
Original price
$4,212.73
Original price
$4,212.73
$4,212.73
-
$4,212.73
Current price
$4,212.73

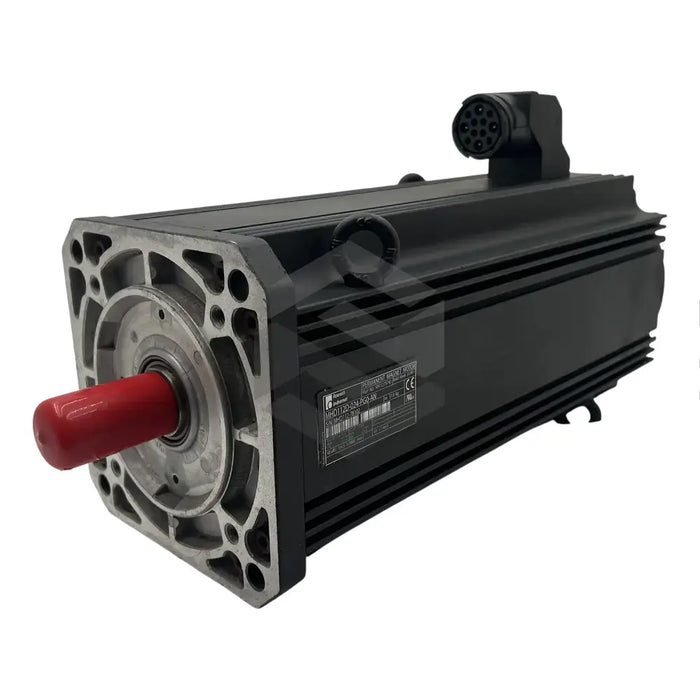

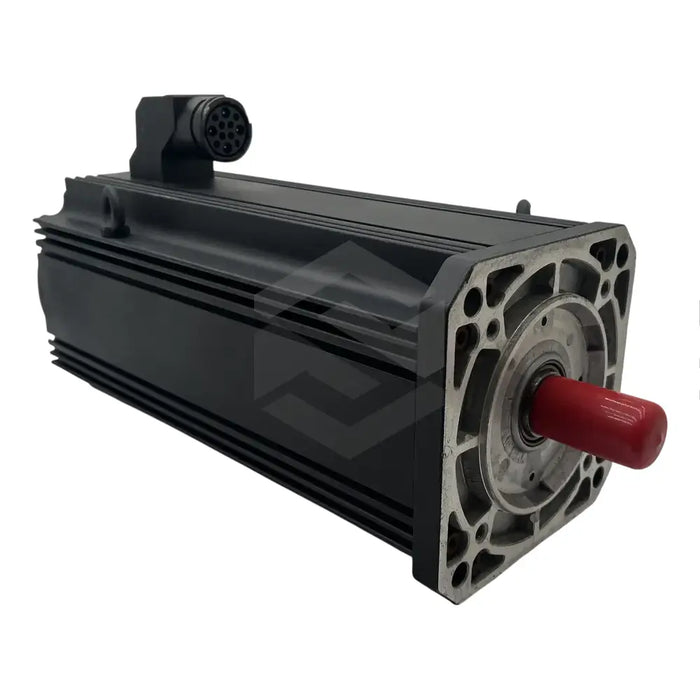

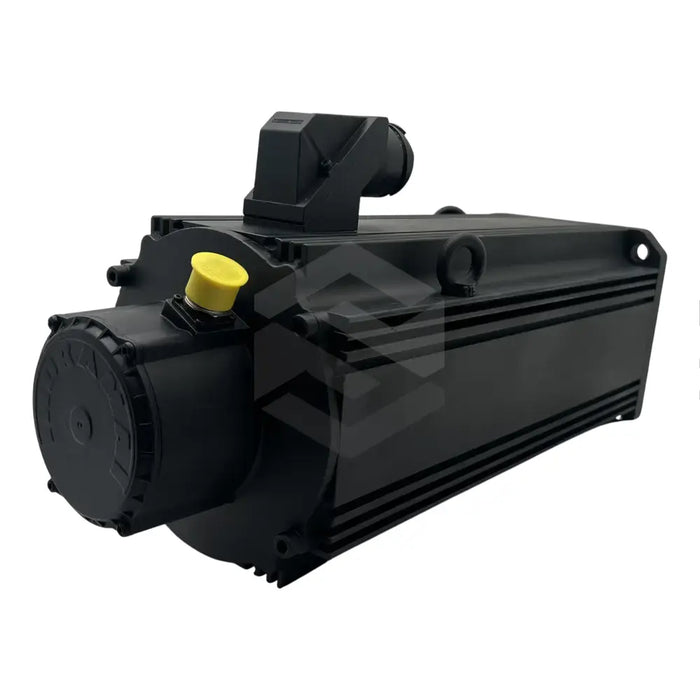

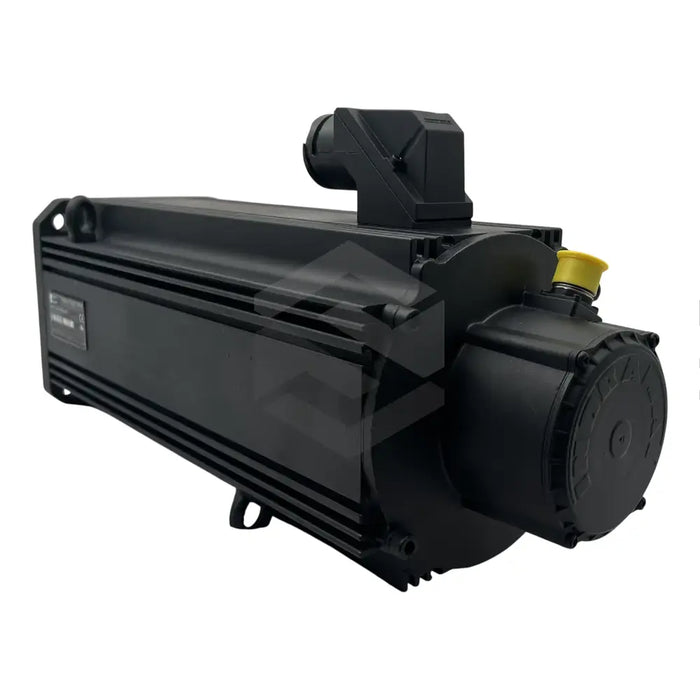

The R911275741 (MHD112D-024-PG0-AN), a high-quality industrial motor, is designed and produced by Bosch Rexroth Indramat. Functioning as a servo or rotary main motor, this device is engineered to perform optimally even in demanding industrial settings. Its housing ensures a considerable degree of protection, enabling efficient and quiet operation, even in unfavorable conditions. An exceptional feature of the R911275741 (MHD112D-024-PG0-AN) is its brushless design, which allows high overload capacity and continuous start-stop operations at high repetition rates. Moreover, this device employs electronic commutation to produce high torque across a broad speed range.
This R911275741 (MHD112D-024-PG0-AN) industrial motor stands apart with its special permanent magnets, which contribute to its low inertia design. Its optimum performance is influenced by prevailing housing and winding temperatures, allowing it to generate a continuous torque output of 48-newton meters and an output torque of about 18.4 amperes at a winding temperature of 100 kelvin. Although its typical operating speed is around 1000 RPM, it can reach up to 2000 RPM with maximum input current. Compact in design, the R911275741 (MHD112D-024-PG0-AN) measures 526 millimeters long and 112 millimeters thick, weighs about 56 kilograms, and can operate effectively at an ambient temperature as high as 50 degrees Celsius.
30 Day Warranty
Technical Specifications
