R911276577

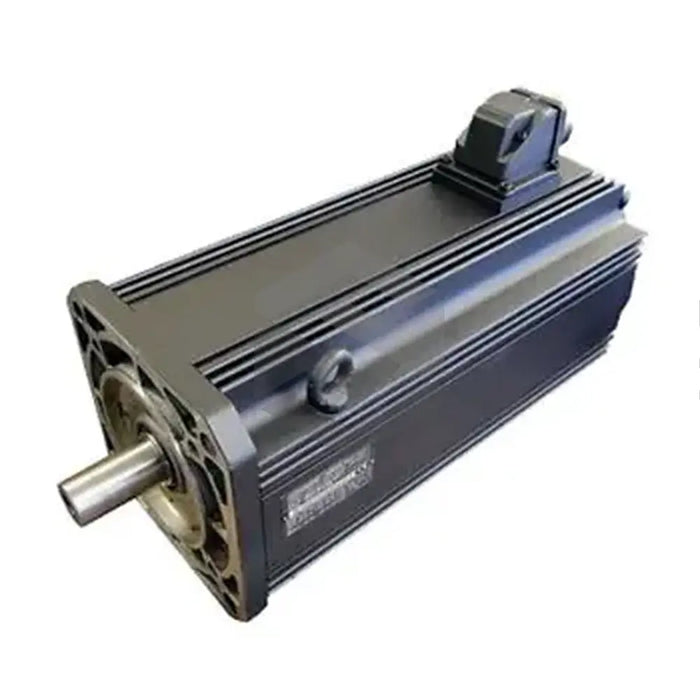

Produced by Bosch Rexroth Indramat, a leader in advanced motor manufacturing, the R911276577 (MDD112A-N-030-N2M-130PA0) is a robust AC servo motor with a wide range of technical features. Achieving a top speed of 3000 RPM, with a maximum current draw of 55.3 amps and optimal torque of 31.3 Nm, this motor offers efficient power delivery. It possesses a balancing class of N, winding resistance of 0.06 ohms, and winding inductivity of 6.8 mH. Operating without holding brakes, it utilizes a straightforward shaft for torque transfer, with a thermal time constant of 100 minutes. This model's key features include digital servo feedback and an integrated multiturn encoder.
Designed for resilient performance under challenging conditions, the R911276577 (MDD112A-N-030-N2M-130PA0) boasts IP65 protection and an insulation class of F. This servo motor's durability and reliability are exemplified by its continuous current consumption of 17.3 A at standstill, and a centering diameter of 130 mm. Despite these robust characteristics, the motor maintains a manageable weight of 25 kg. Its housing supports both natural and surface cooling ensuring optimal thermal management. It also features a black coating with a thickness of less than 40 µm, offering additional protection. The motor is available in various rotor sizes and can be shipped globally via a trusted logistics provider.
